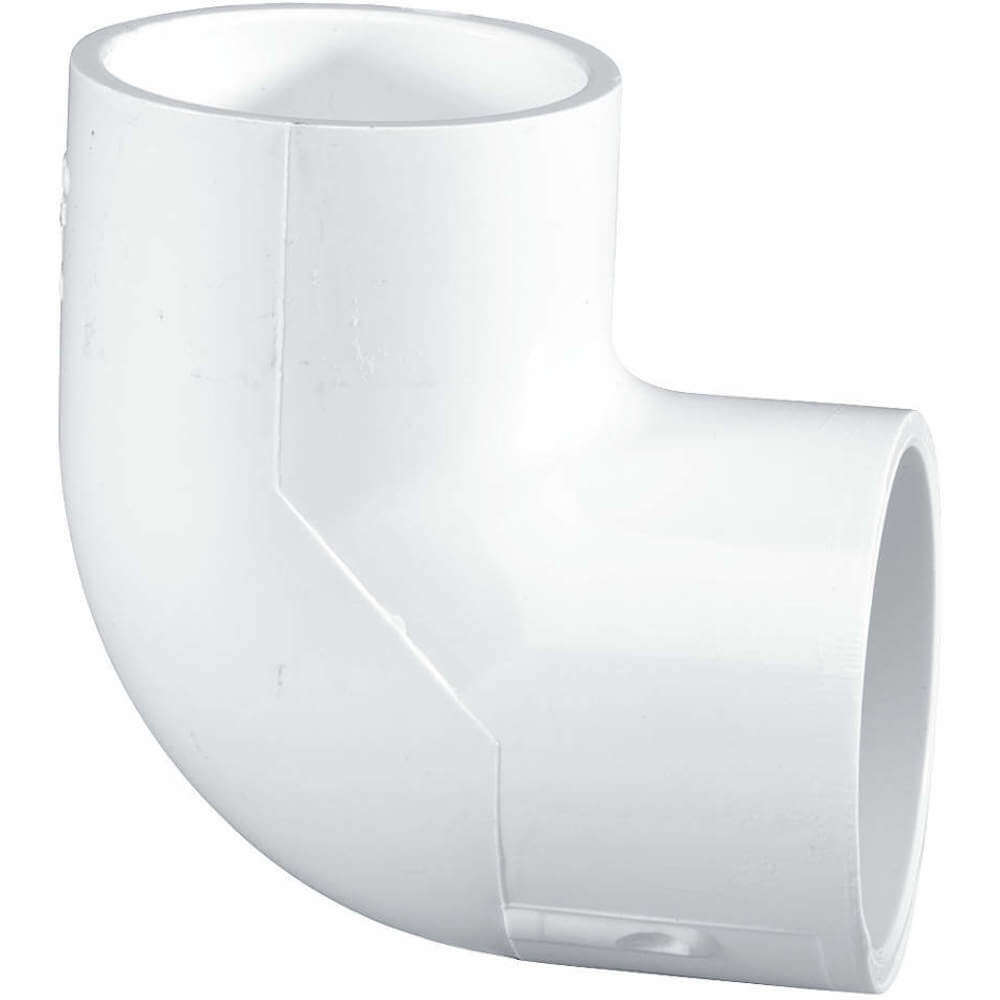

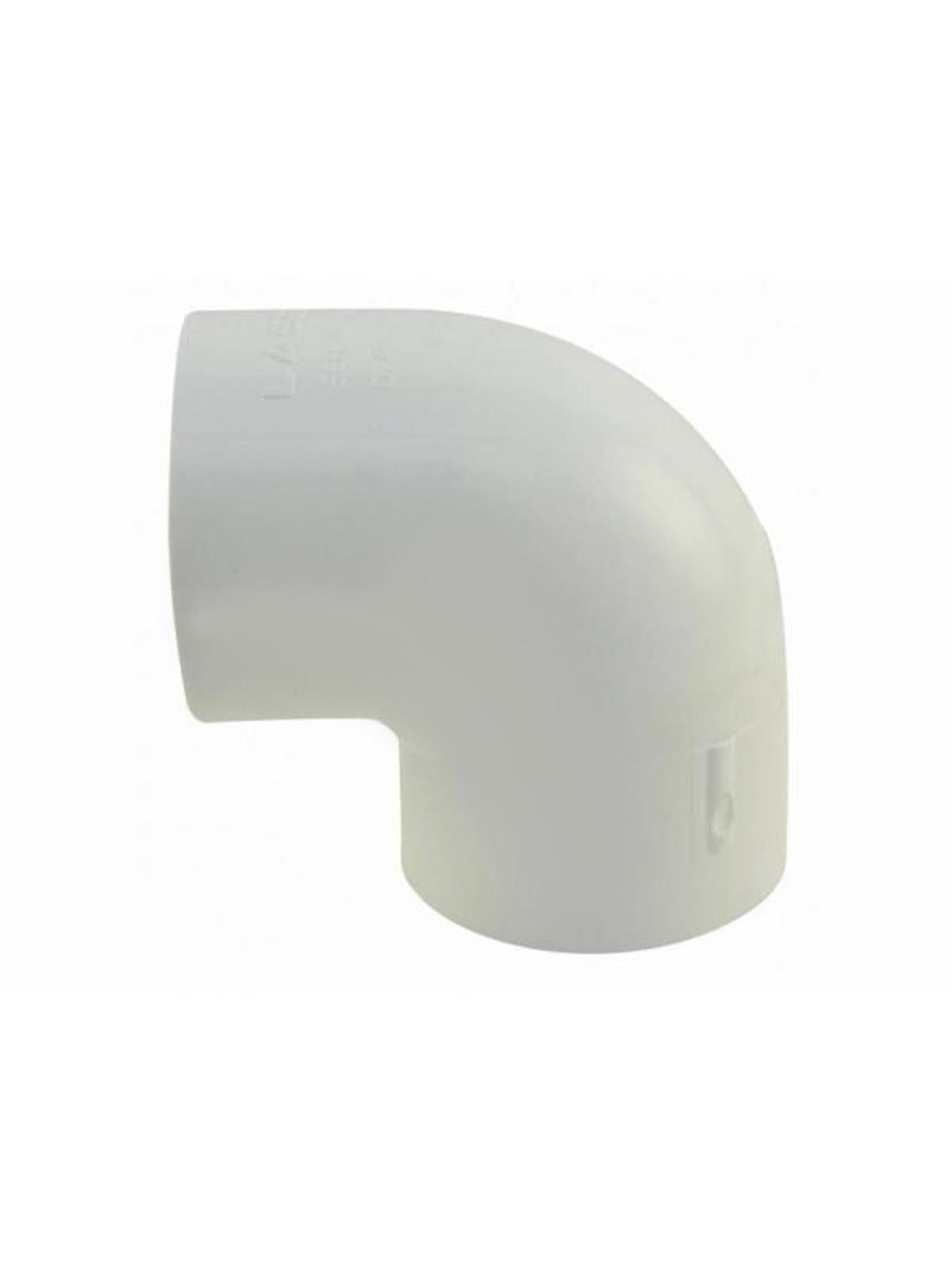

Lasco 406-020BC sch40 90 Degree Elbow Slip x Slip 2 inches

Product Description

The LASCO 406-020BC is a 2" SCH40 90-degree elbow fitting with slip connections. Constructed from PVC, this fitting is suitable for use in potable water systems. It conforms to ASTM D2466, NSF 14, and NSF 61 standards. It is designed for a maximum operating pressure of 280 psi and a temperature range of 32°F to 140°F.

• Made from PVC Type 1, Cell Classification 12454-B
• Compliant with NSF/ANSI Standard 61, Annex G and NSF/ANSI Standard 14
• Suitable for use in potable water systems

Product Highlights

The LASCO 406-020BC elbow fitting is ideal for creating 90-degree connections in PVC piping systems.

Product Information

Standard Information

• Brand: LASCO
• Manufacturer Part Number: 406-020BC
• Country of Origin: US

Technical Specifications

• Brand: LASCO
• MPN: 406-020BC
• Item: Elbow
• Material: PVC
• Series: SCH40
• Size: 2"
• Angle: 90 deg
• Operating Temperature: 73 to 140 deg F
• Nominal Size: 2"
• Connection Type: Slip
• Schedule Rating: SCH 40
• Pressure rating: 280 psi
• Application: Potable Water
• Basic Fitting Shape: Elbow
• Body Material: PVC
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 2"
• Fitting Side A Outside Diameter: 2 11/16"
• Fitting Side A Type: Socket
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 2"
• Fitting Side B Outside Diameter: 2 11/16"
• Fitting Side B Type: Socket
• For Pipe Schedule: 40
• Includes Plug: No
• Includes Pre-applied Thread Sealant: No
• Includes Seal: No
• Includes Shield: No
• Length: 3.94"
• Low Lead Certified Standard: Nsf 61, Nsf 14
• Max. Temp.: 140 F
• Maximum Operating Pressure: 280 psi
• Overall Length: 3 15/16"
• Pipe Fitting Material: PVC
• Pipe Size: 2"
• Schedule: 40
• Specific Fitting Angle: 90
• Specific Fitting Shape: Elbow
• Standards: Astm D2466, Nsf 14, Nsf 61
• Temp. Range: 32 F to 140 F
• GTIN: 0025528140908
• UPC: 0025528140908
• eBay Product ID (ePID): 1600910568
• Item Depth: 4 in
• Features: Rust Resistant
• Item Height: 2.75 in
• Width: 4.200
