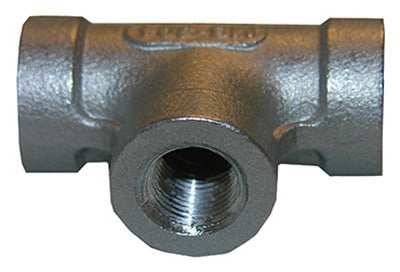

Larsen Supply Co. 32-2401 Ss Fip Tee 1/8 Inch Type 304

Product Description

The LARSEN SUPPLY CO., INC. 32-2401 is a 1/8 inch stainless steel female iron pipe (FIP) tee fitting rated for 150 LB service. Constructed from Type 304 stainless steel, this tee provides corrosion resistance and durability in demanding plumbing and fluid handling applications. All three ports feature female pipe threads for straightforward connection to standard male-threaded pipe and fittings. The fitting is certified lead free, making it suitable for potable water systems where lead-free compliance is required. Plumbers and pipefitters working on light commercial and residential systems will find this tee a reliable, code-appropriate choice.

This tee is used in small-diameter piping runs where a branch connection is needed off a main line. The 1/8 inch size is common in instrument lines, low-pressure pneumatic systems, water supply distribution headers, and compressed air manifolds. It is sold in a package quantity of six units, packaged in a carded clamshell, making it practical for service truck stocking or counter sale at supply houses.

Key Features

• Type 304 stainless steel construction for corrosion resistance in wet and chemical-exposure environments
• 150 LB pressure rating suitable for low-to-medium pressure service applications
• Lead free product, compliant for potable water and drinking water service lines
• Female iron pipe threads on all three ports for standard NPT connections
• 1/8 inch pipe size for small-diameter branch and manifold applications
• Packaged in a carded clamshell, six pieces per package

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 1/8 inch NPT male-threaded pipe and fittings in 150 LB-rated stainless steel piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable IPC and local plumbing code requirements. Shut off and depressurize the line fully before disassembling or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads being joined to ensure a leak-free connection. Do not over-torque stainless steel threaded fittings, as galling can occur and damage the threads.
