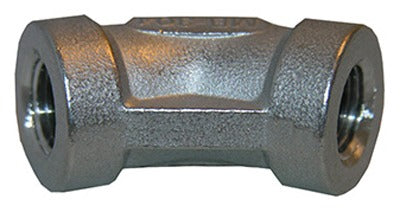

Larsen Supply Co. 32-2301 Ss 45 Degree Pipe Elbow 1/8 in

Product Description

The LARSEN SUPPLY CO., INC. 32-2301 is a 1/8-inch stainless steel 45-degree pipe elbow rated for 150 LB service. Constructed from Type 304 stainless steel, this fitting changes pipe direction at a 45-degree angle and is designed for use in plumbing, HVAC, and light industrial piping systems. Both ends feature female NPT threads for straightforward threaded connections to standard pipe. The lead-free construction meets drinking water safety requirements, making it suitable for potable water applications. Licensed plumbers and pipefitters install this type of fitting as part of new construction or repair work where a moderate directional change is required without using a full 90-degree elbow.

This elbow is used in residential and light commercial piping installations where 1/8-inch diameter lines are required. Common applications include gas supply lines, water distribution, and instrument or control piping. Type 304 stainless steel provides good corrosion resistance in both wet and mildly corrosive environments. The 150 LB pressure rating aligns with standard low-to-medium pressure service conditions typical of plumbing and HVAC piping systems.

Key Features

• Type 304 stainless steel construction for corrosion resistance
• 150 LB pressure rating suitable for standard service conditions
• Lead-free product compliant with potable water requirements
• Female x female NPT threads on both ends for standard threaded pipe connections
• 45-degree bend angle for moderate directional change in piping runs
• 1/8-inch pipe size for small-diameter line applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/8-inch NPT threaded piping systems in residential and light commercial plumbing, HVAC, and industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code. Shut off and depressurize the line before disassembling any fittings. Apply an approved thread sealant or PTFE tape to male threads before making up the connection. Do not over-tighten threaded stainless fittings, as galling of the threads can occur.
