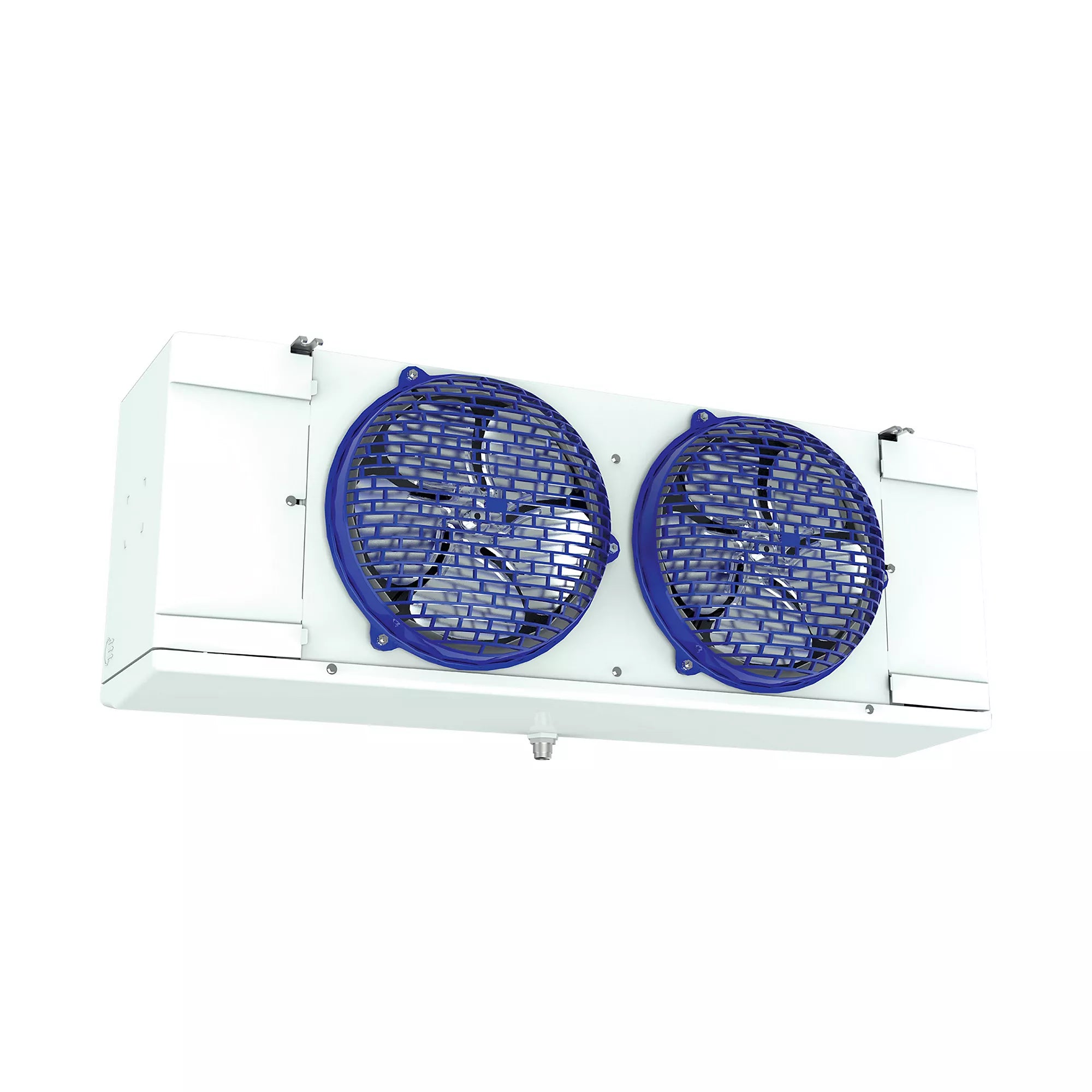

Larkin LEL0350AS6AMAB0200 Evaporator, Low Profile, 2-Speed EC, 115/1/60

Product Description

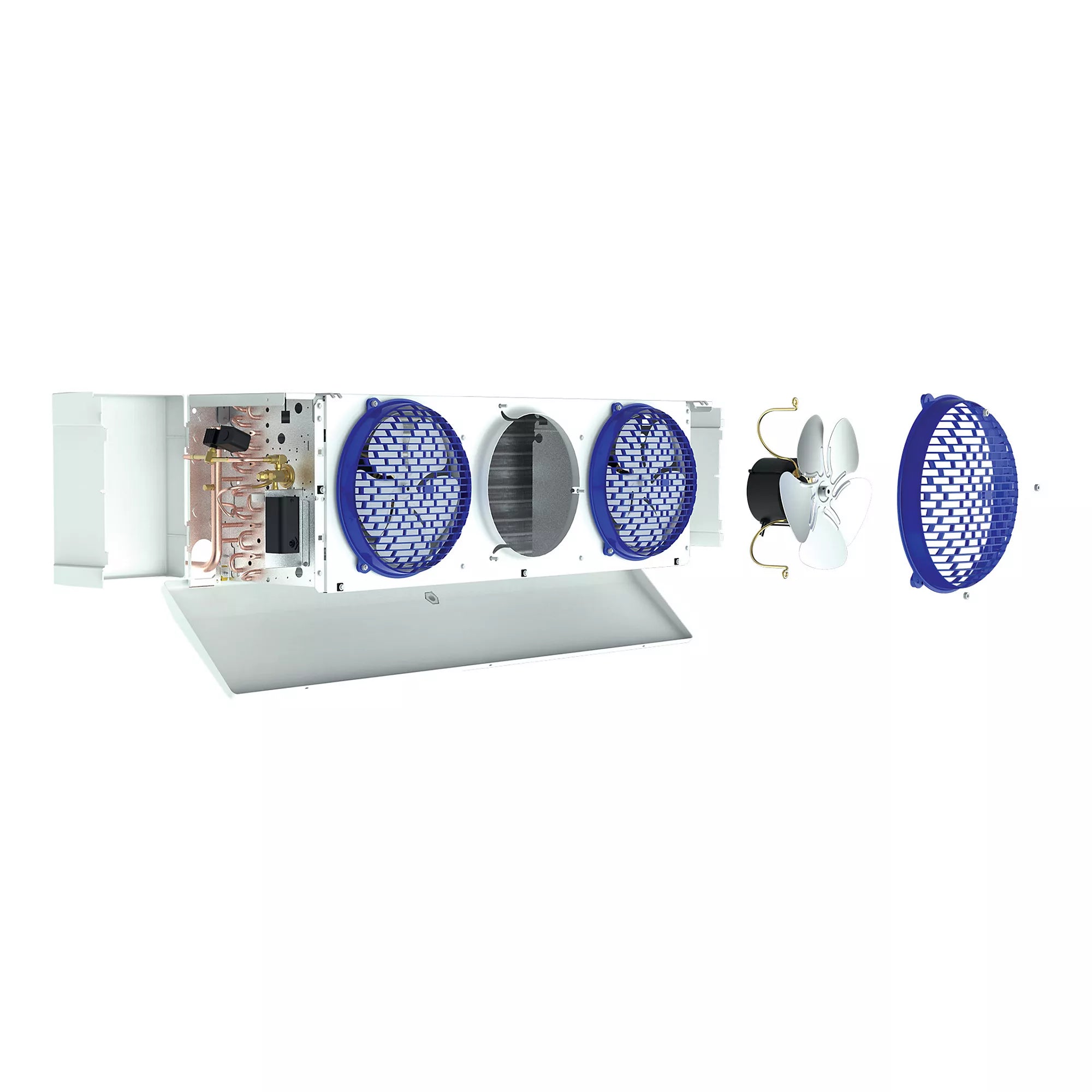

The Larkin LEL0350AS6AMAB0200 is a low profile unit cooler featuring a hinged, removable front access panel for easy access to electrical and refrigeration components. The unit features a molded fan guard and access panels made of durable, NSF and UL Sanitation rated plastic material. Designed for walk-in coolers, it ensures efficient cooling with enhanced tubing and fin design.

• Features hinged, removable front access panels for easy maintenance.
• Constructed with durable, lightweight, and damage-resistant molded plastic.
• Equipped with 2-Speed EC motors for air defrost models.

Product Highlights

This low profile unit cooler is ideal for walk-in coolers, offering easy access and efficient cooling.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0350AS6AMAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Voltage: 115 VAC
• Amps: 5.4
• Cycle/Hertz: 60 Hz
• Phase: Single
• UL Listed: Yes
• ETL Listed: No
• Motor Type: ECM (Electronically Commutated Motor)
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Unit Cooler Type: Walk-In
• Unit Cooler Defrost Type: Air
• Unit Cooler Number of Fans: 6
• Unit Cooler Evaporator Style: Low Profile
• Minimum Circuit Ampacity (MCA): 5.6
• Prop 65: Yes
• Fins per Inch (FPI): 6
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 1 1/8"
• Unit Cooler Nominal BTU: 50000
• Cooling Capacity: 35000 BTU/Hour
• Installation: Wall
• Number of Fans: 6
• Flow Rate: 3660 CFM
• Coil Inlet Outer Diameter: 1/2 Inch
• Suction Outer Diameter: 1-1/8 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain: 3/4 Inch Male Threaded
