Larkin LEL0295AS6AMAB0200 Evaporator Low Profile 2-Speed EC 115/1/60

Product Description

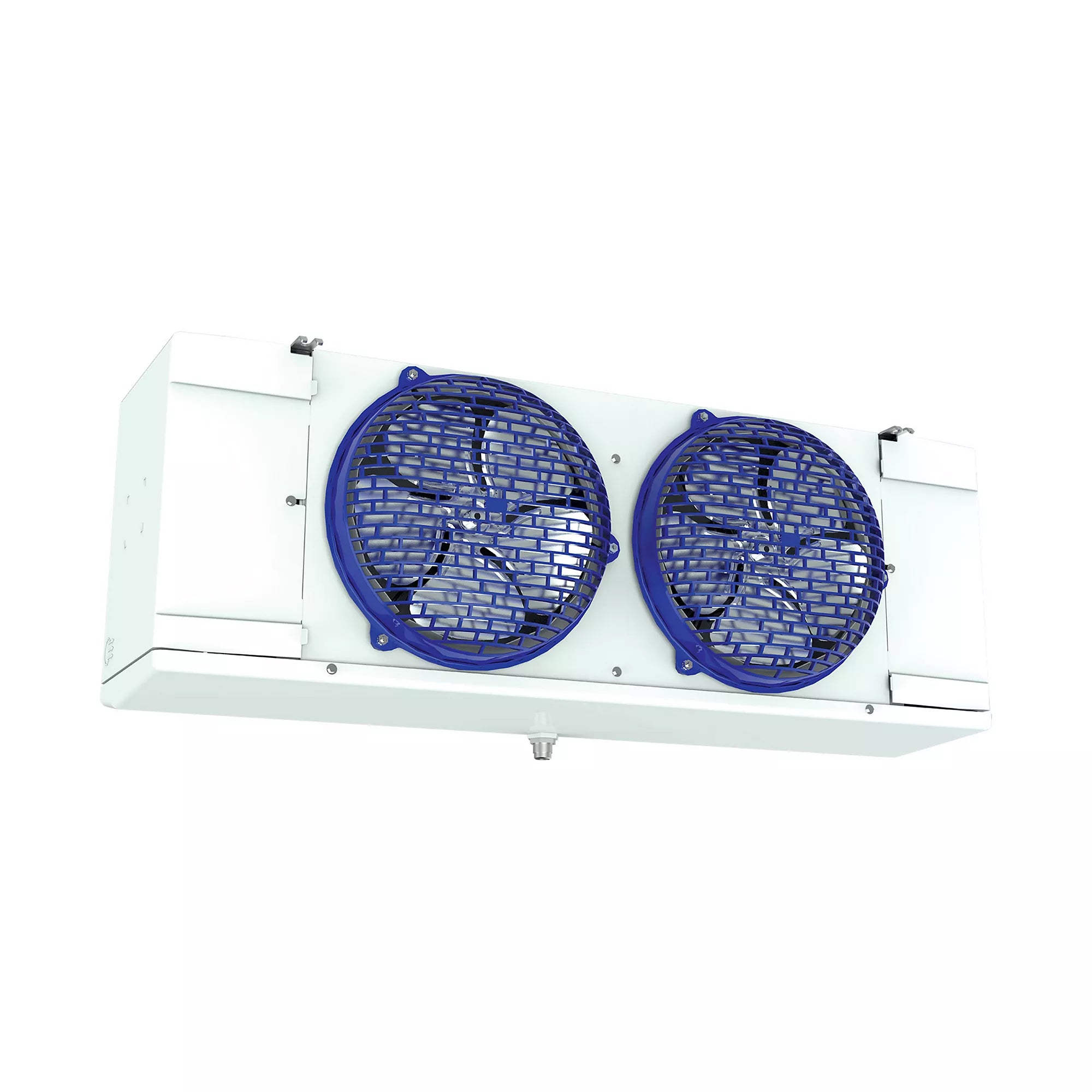

The Larkin LEL0295AS6AMAB0200 is a low profile unit cooler featuring a cabinet design with hinged, removable front access panels. It has internally enhanced tubing and fin design for higher efficiency. The unit comes standard with 2-Speed EC motors on air defrost models and aluminum fin, copper tube coils. It operates at 115 VAC and has a cooling capacity of 29500 BTU/Hour.

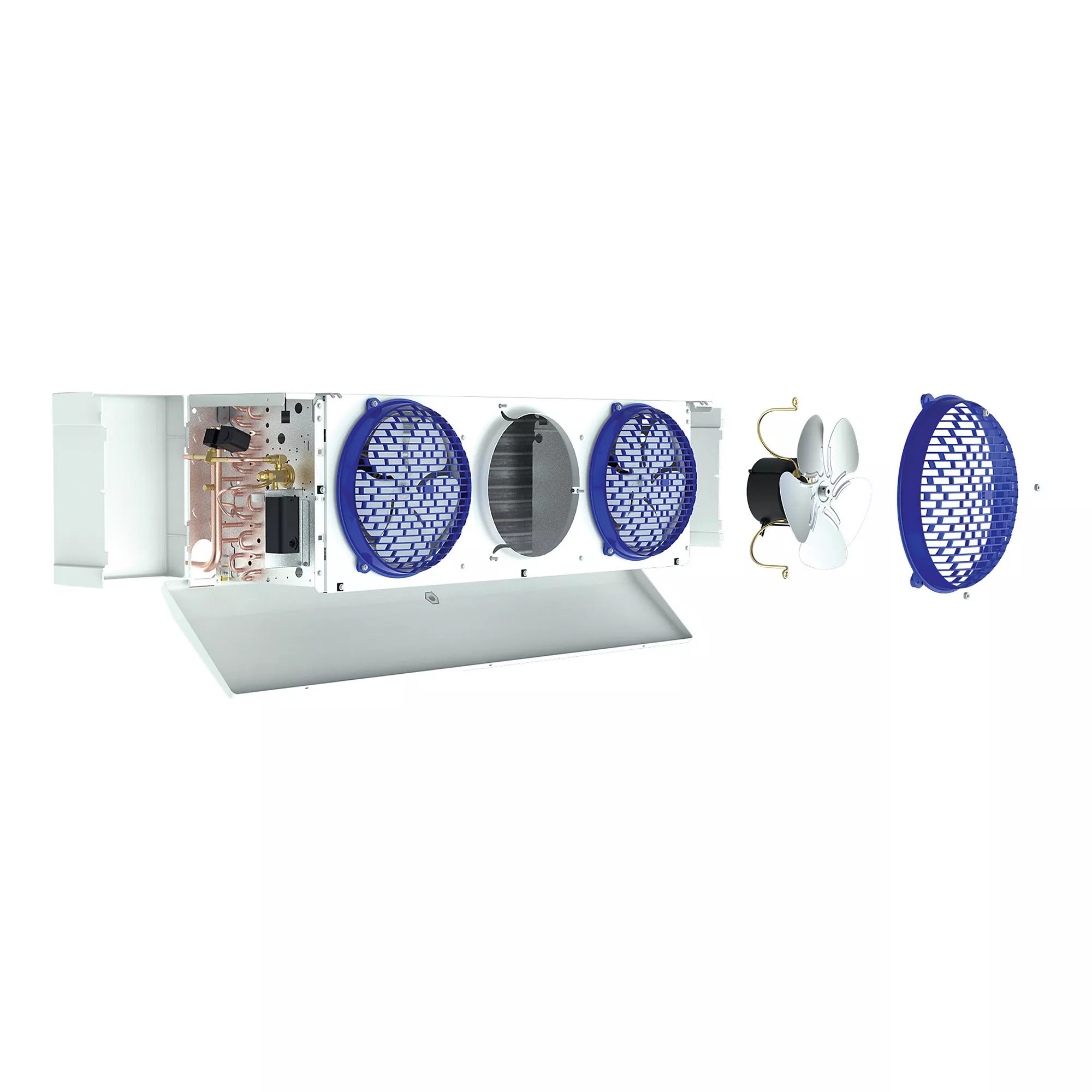

• Features hinged, removable front access panels for easy access.
• Equipped with 2-Speed EC motors for air defrost.
• Includes aluminum fin, copper tube coils.

Product Highlights

This low profile unit cooler is designed for easy access and efficient cooling in walk-in environments.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0295AS6AMAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• UL Listed: Yes
• Voltage: 115 VAC
• Amps: 4.5
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• ETL Listed: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 7/8"
• Unit Cooler Defrost Type: Air
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Number of Fans: 5
• Unit Cooler Type: Walk-In
• Width: 26
• Minimum Circuit Ampacity (MCA): 4.7
• Country of Origin: USA
• Cooling Capacity: 29500 BTU/Hour
• Current Rating: 4.5 Amp (Motor), 4.7 Amp (Minimum Circuit Ampacity), 20 Amp (Maximum Over Current Protection)
• Frequency Rating: 60 Hertz
• Installation: Wall
• Power Rating: 275 Watt (Motor)
• Approval: UL (Canada and US), NSF
• Number Of Phases: 1
• Enclosure Material: Stainless Steel
• Height: 25
• Length: 102
• Unit Cooler Nominal BTU: 95000
