Larkin LEL0295AS6AMAB0000 Evaporator Low Profile 2-Speed EC 115/1/60

Product Description

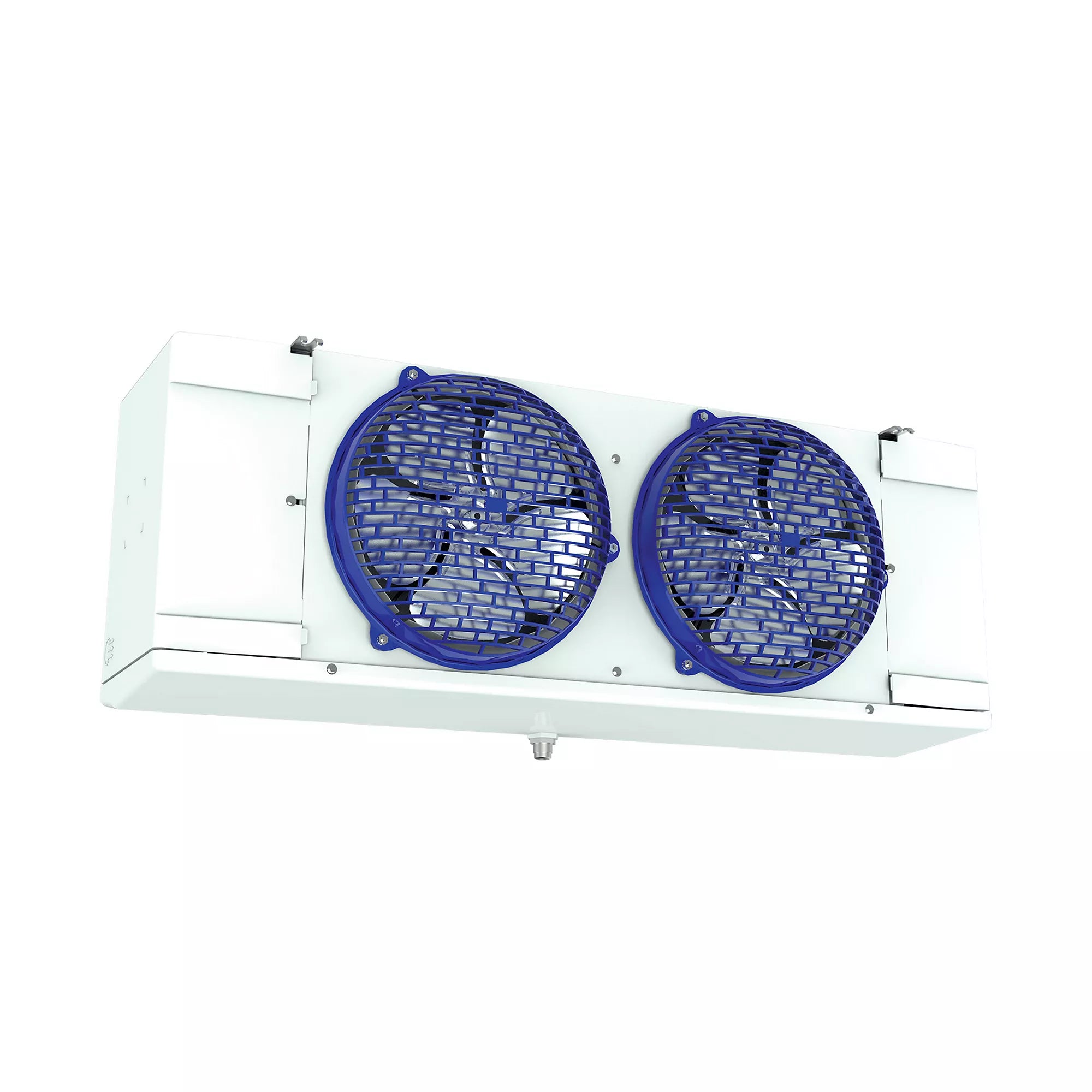

The Larkin LEL0295AS6AMAB0000 is a low profile unit cooler featuring a cabinet design with hinged, removable front access panels for easy access to electrical and refrigeration components. It operates at 115 VAC and includes a 2-Speed EC motor. Designed for walk-in coolers, it ensures efficient cooling and ease of maintenance.

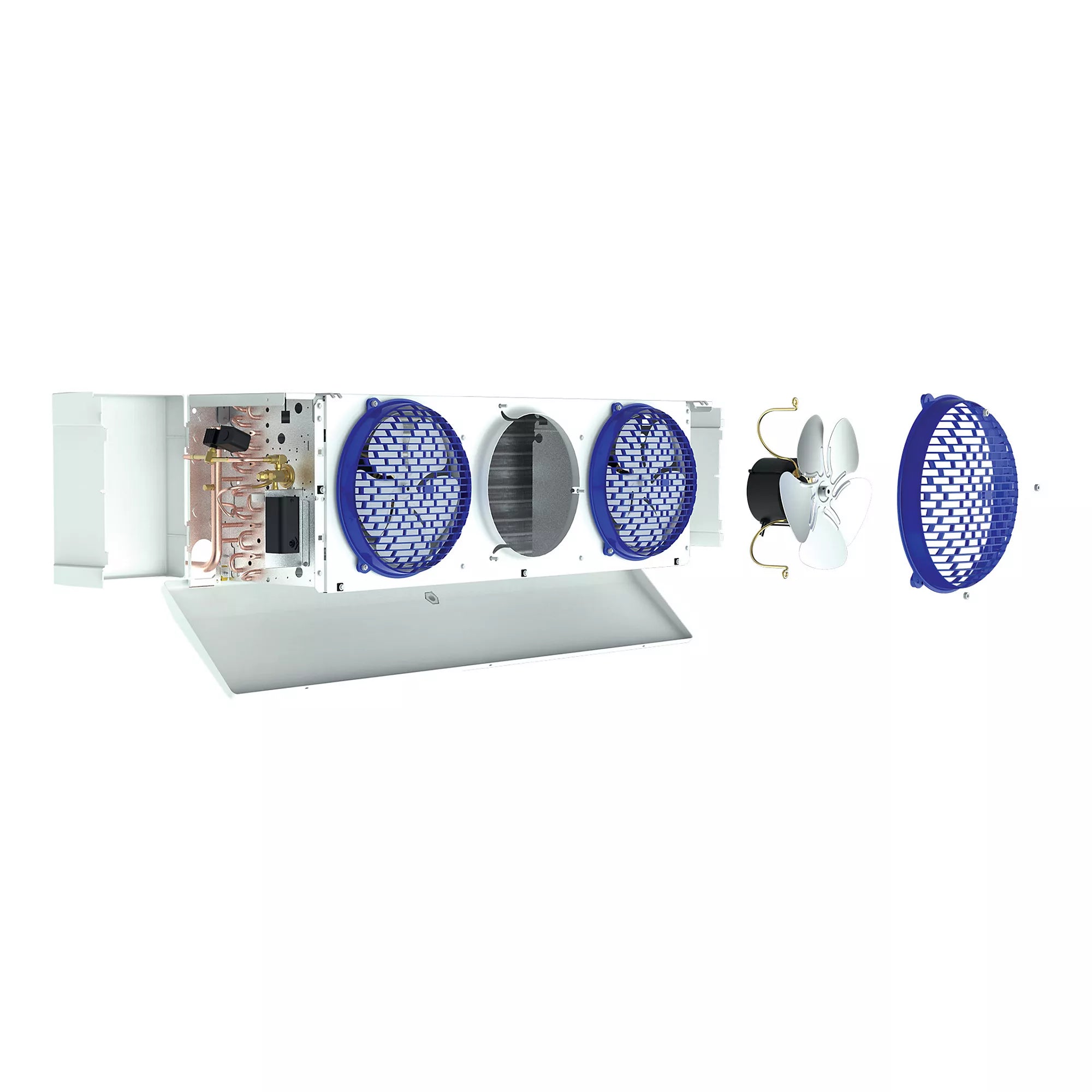

• Features hinged, removable front access panels for easy maintenance.
• Equipped with a 2-Speed EC motor for efficient operation.
• Designed with internally enhanced tubing and fin for higher efficiency.

Product Highlights

This low profile unit cooler is ideal for walk-in coolers, offering easy access and efficient cooling.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0295AS6AMAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• UL Listed: Yes
• Input Voltage: 115 VAC
• Amps: 4.5
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• ETL Listed: No
• Fins per Inch: 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 7/8"
• Unit Cooler Defrost Type: Air
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 95000
• Unit Cooler Number of Fans: 5
• Unit Cooler Type: Walk-In
• Minimum Circuit Ampacity (MCA): 4.7
• Country of Origin: USA
• Flow Rate: 3050 CFM
• Number of Circuits: 6
• Coil Inlet Outer Diameter: 1/2 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain: 3/4 Inch Male Threaded
• Includes: Standard Base
• Cooling Capacity: 29500 BTU/Hour
• Enclosure Material: Stainless Steel
• Frequency Rating: 60 Hertz
• Installation: Wall
• Number Of Phases: 1
• Power Rating: 275 Watt (Motor)
• Voltage Rating: 115 Volt AC
• Heater Watts: 275
• Connection Size Inlet (In.): 1/2
• Connection Suction (In.): 7/8
• Heater Amps: 4.5
