Larkin LEL0255BS6EEAB0000 evaporator low profile 1-speed EC motor 55000 btu

Product Description

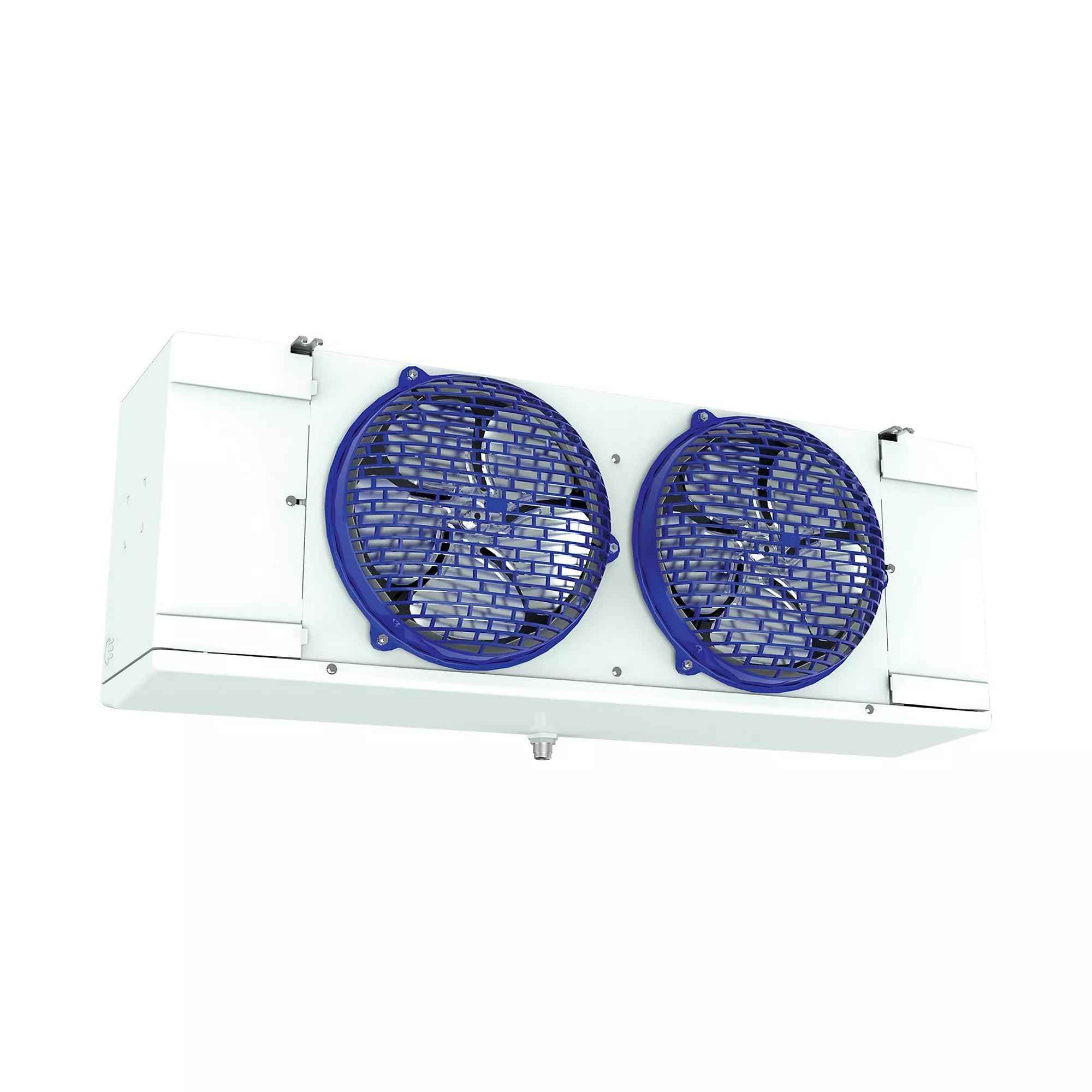

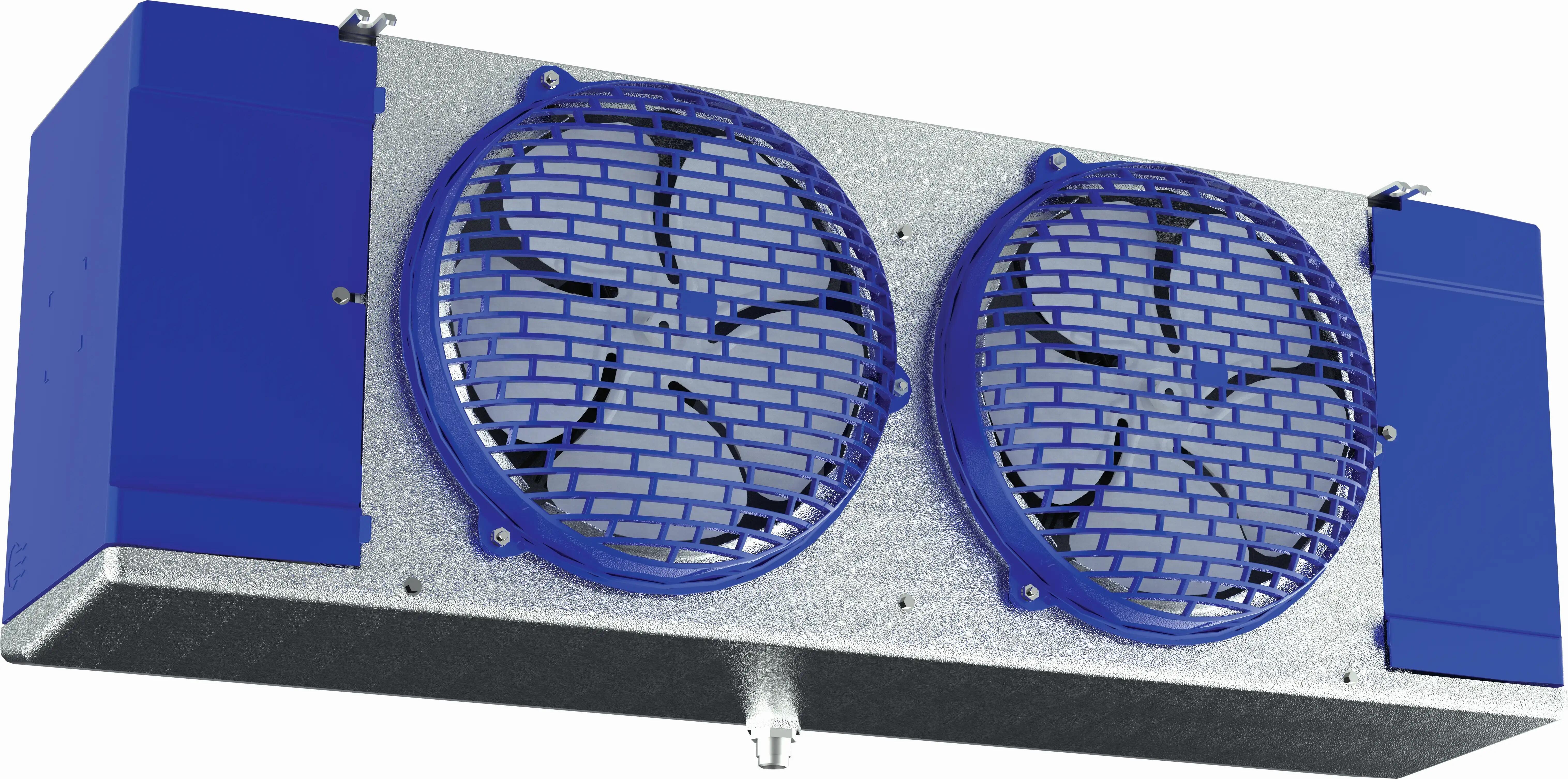

The Larkin LEL0255BS6EEAB0000 is a low profile unit cooler featuring a cabinet design with hinged, removable front access panels for easy access. It has a molded fan guard and access panels made of durable, lightweight plastic. This unit cooler is suitable for walk-in refrigeration applications and uses an ECM motor. Designed for efficiency and easy servicing, it offers features for quick installation and maintenance.

• Cabinet design features hinged, removable front access panels
• Molded fan guard and access panels are made of strong, durable, NSF and UL Sanitation rated lightweight and damage-resistant molded plastic material

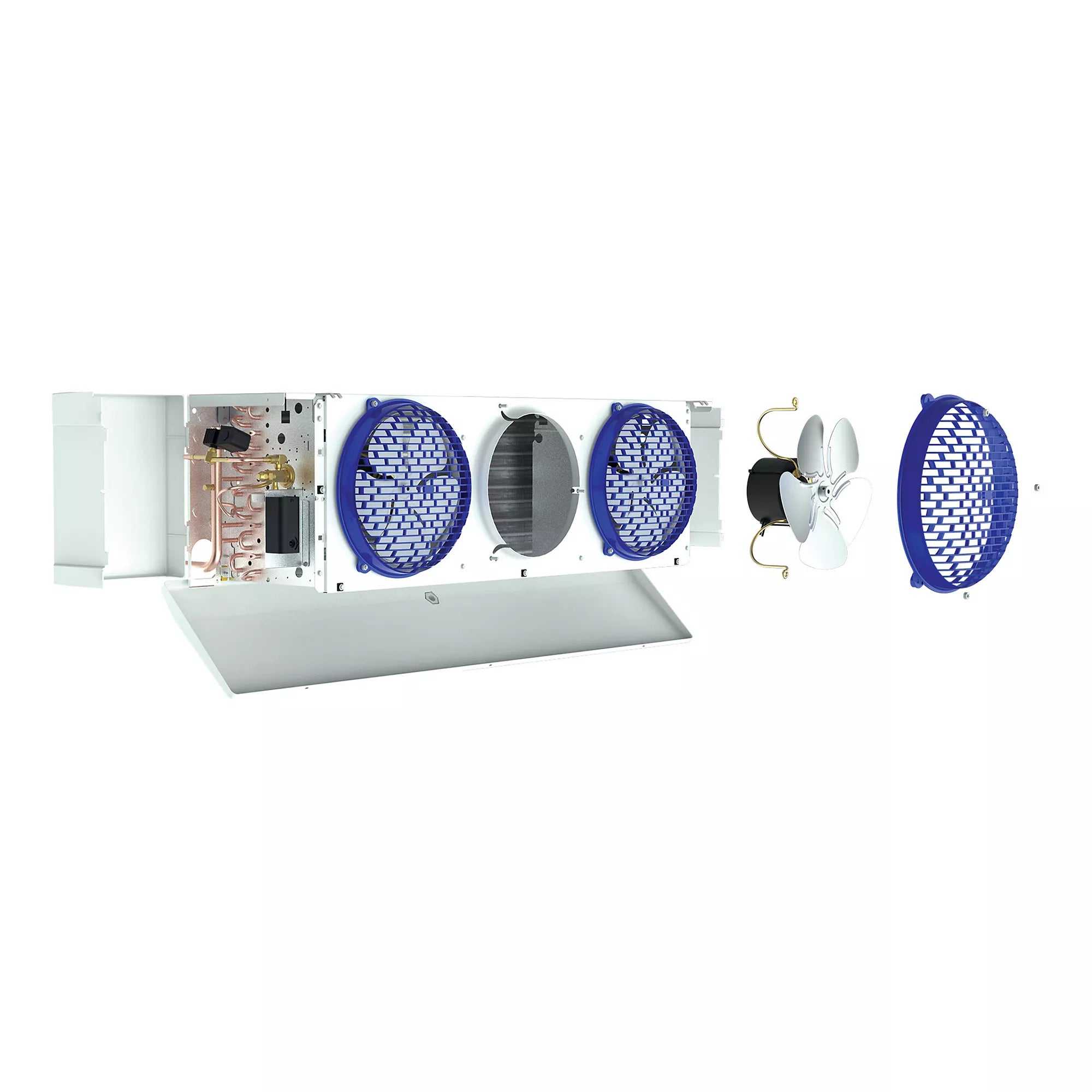

• Quick-removal fan guard/motor assembly for easier servicing of air mover parts

Product Highlights

This low profile unit cooler is designed for efficient cooling and easy maintenance in walk-in refrigeration systems.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0255BS6EEAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• UL Listed: Yes
• Voltage: 230 VAC
• Amps: 3
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 1 1/8"
• Unit Cooler Defrost Type: Electric
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 55000
• Unit Cooler Number of Fans: 6
• Unit Cooler Type: Walk-In
• Width: 13.25
• Minimum Circuit Ampacity (MCA): 3.1
• Cooling Capacity: 25450 BTU/Hour
• Number of Circuits: 9
• Equalizer Outer Diameter: 1/4 Inch
• Drain Size: 3/4 Inch Threaded
• Includes: Standard Base
• Current Rating: 3.0 Amp (Motor), 3.1 Amp (Minimum Circuit Ampacity), 15 Amp (Maximum Over Current Protection)
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Power Rating: 354 Watt (Motor)
• Enclosure Material: Stainless Steel
• Type: Low Profile
• Voltage Rating: 208 to 230 Volt AC
• Catalog Number: LEL0255BS6EEAB0000
• Category: HVAC/R & Fans
• Manufacturer Name: Larkin
• Manufacturer Part Number: LEL0255BS6EEAB0000
• Series/Model: BS6EEA
• Flow Rate: 4112 CFM
• Connection Size Inlet (In.): 1/2
• Connection Suction (In.): 1 1/8
• Heater Amps: 3
• Heater Watts: 354
• Horsepower: 1/20
• Application: Low Temp
• Fins/Inch: 6
• Height: 16.4444
• Length: 109.5
