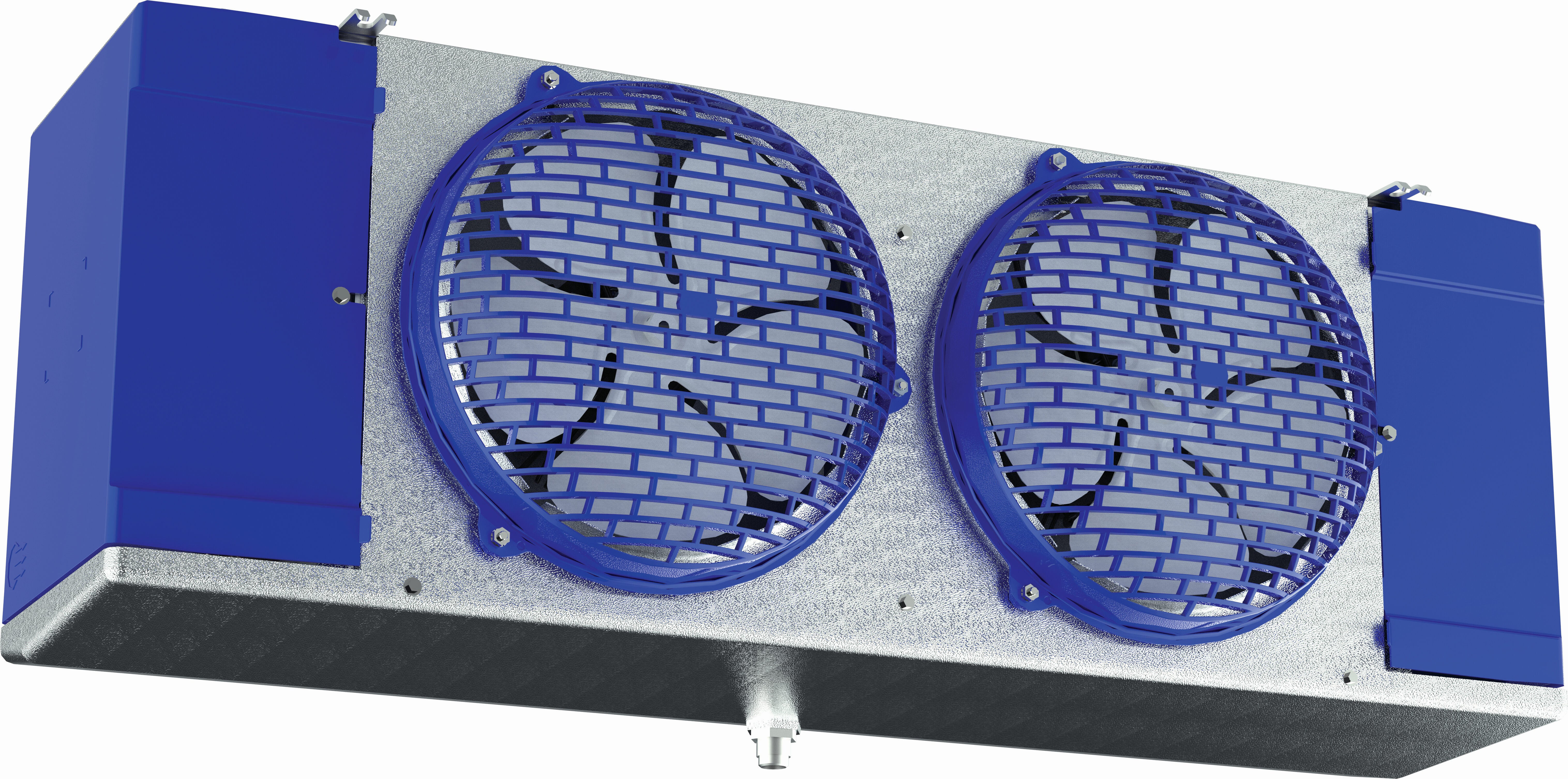

Larkin LEL0250AS6AMAB0000 Evaporator Low Profile 25000 BTU 115/1/60

Product Description

The Larkin LEL0250AS6AMAB0000 is a low profile evaporator unit cooler with a cooling capacity of 25000 BTU/Hour. It features hinged, removable front access panels for easy access to electrical and refrigeration components. The unit comes standard with 2-Speed EC motors and aluminum fin, copper tube coils. Designed for walk-in cooler applications.

• Cabinet design features hinged, removable front access panels.
• Molded fan guard and access panels are made of strong, durable, NSF and UL Sanitation rated lightweight and damage-resistant molded plastic material.
• Quick-removal fan guard/motor assembly for easier servicing of air mover parts.

Product Highlights

This Larkin evaporator is ideal for maintaining optimal temperatures in walk-in coolers, ensuring efficient and reliable performance.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0250AS6AMAB0000

Technical Specifications

• Brand: Larkin
• Phase: Single
• Width: 22.1
• Height: 21
• Length: 82.5
• Voltage: 115 VAC
• UL Listed: Yes
• Motor Type: 2 Speed ECM
• Cycle/Hertz: 60 Hz
• Refrigerant: R404A, R448A, R449A, R407A, R407F, R407C
• Unit Cooler Type: Walk-In
• Fins per Inch (FPI): 6
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 7/8"
• Unit Cooler Nominal BTU: 50000
• Unit Cooler Defrost Type: Air
• Unit Cooler Number of Fans: 4
• Unit Cooler Evaporator Style: Low Profile
• Minimum Circuit Ampacity (MCA): 3.8
• Cooling Capacity: 25000 BTU/Hour
• Current Rating: 3.6 Amp (Motor), 3.8 Amp (Minimum Circuit Ampacity), 20 Amp (Maximum Over Current Protection)
• Enclosure Material: Stainless Steel
• Frequency Rating: 60 Hertz
• Installation: Wall
• Manufacturer Name: Larkin
• Manufacturer Part Number: LEL0250AS6AMAB0000
• Number Of Phases: 1
• Power Rating: 220 Watt (Motor)
• Series/Model: AS6AMAB
• Type: Low Profile
• Voltage Rating: 115 Volt AC
• Flow Rate: 2440 CFM
• Number of Circuits: 8
• Coil Inlet Outer Diameter: 1/2 Inch
• Suction Outer Diameter: 7/8 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain: 3/4 Inch Male Threaded
• Includes: Standard Base
• CFM: 2440
• Connection Size Inlet (In.): 1/2
• Connection Suction (In.): 7/8
• Features: Standard Base
• Heater Amps: 3.6
• Heater Watts: 220
• Horsepower: 1/20
• Number of Fans: 4
• Inlet Size: 1/2"
• Outlet Size: 7/8"
