Larkin LEL0240BS6EEAB0200 Evaporator Low Profile 24000 BTU 1-Speed EC

Product Description

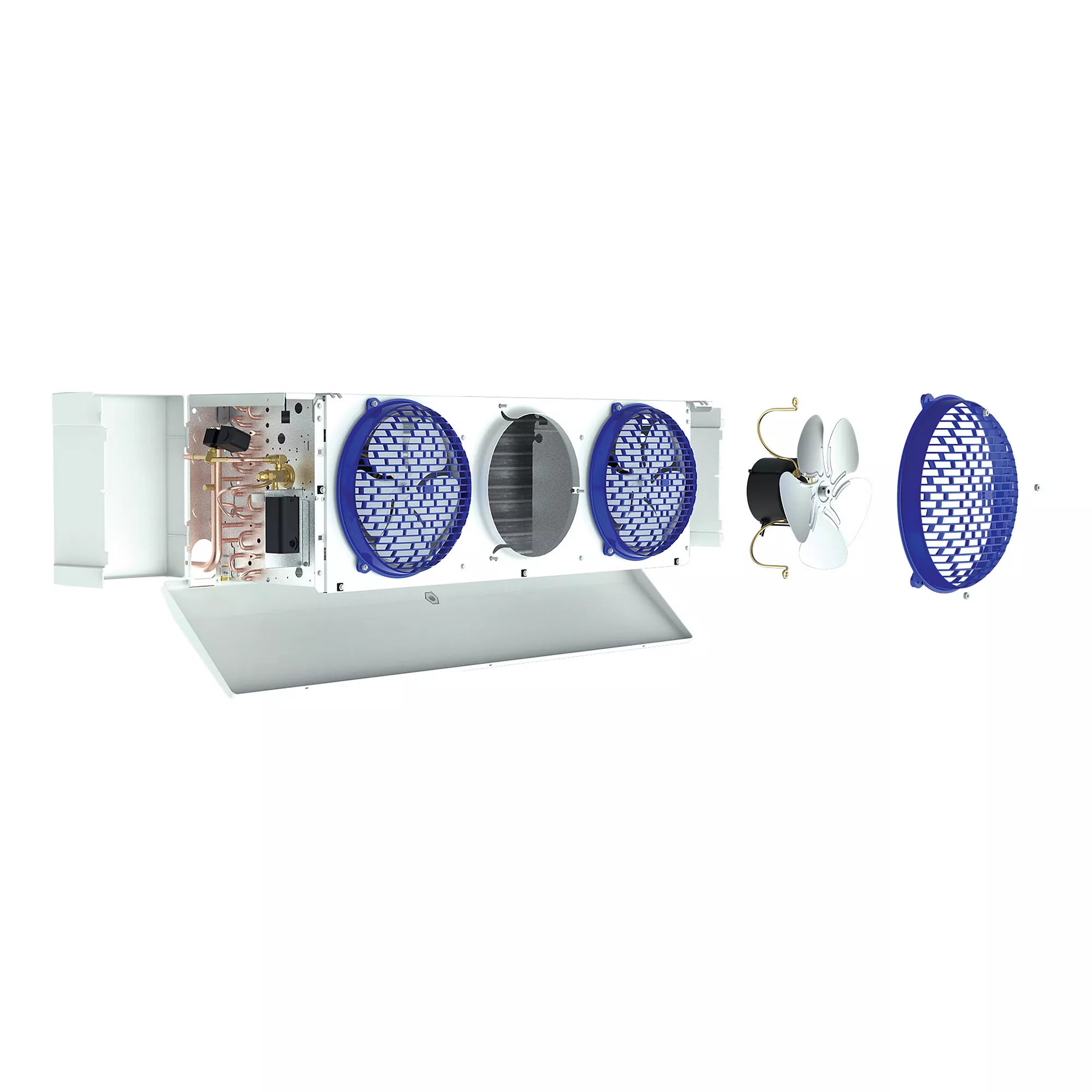

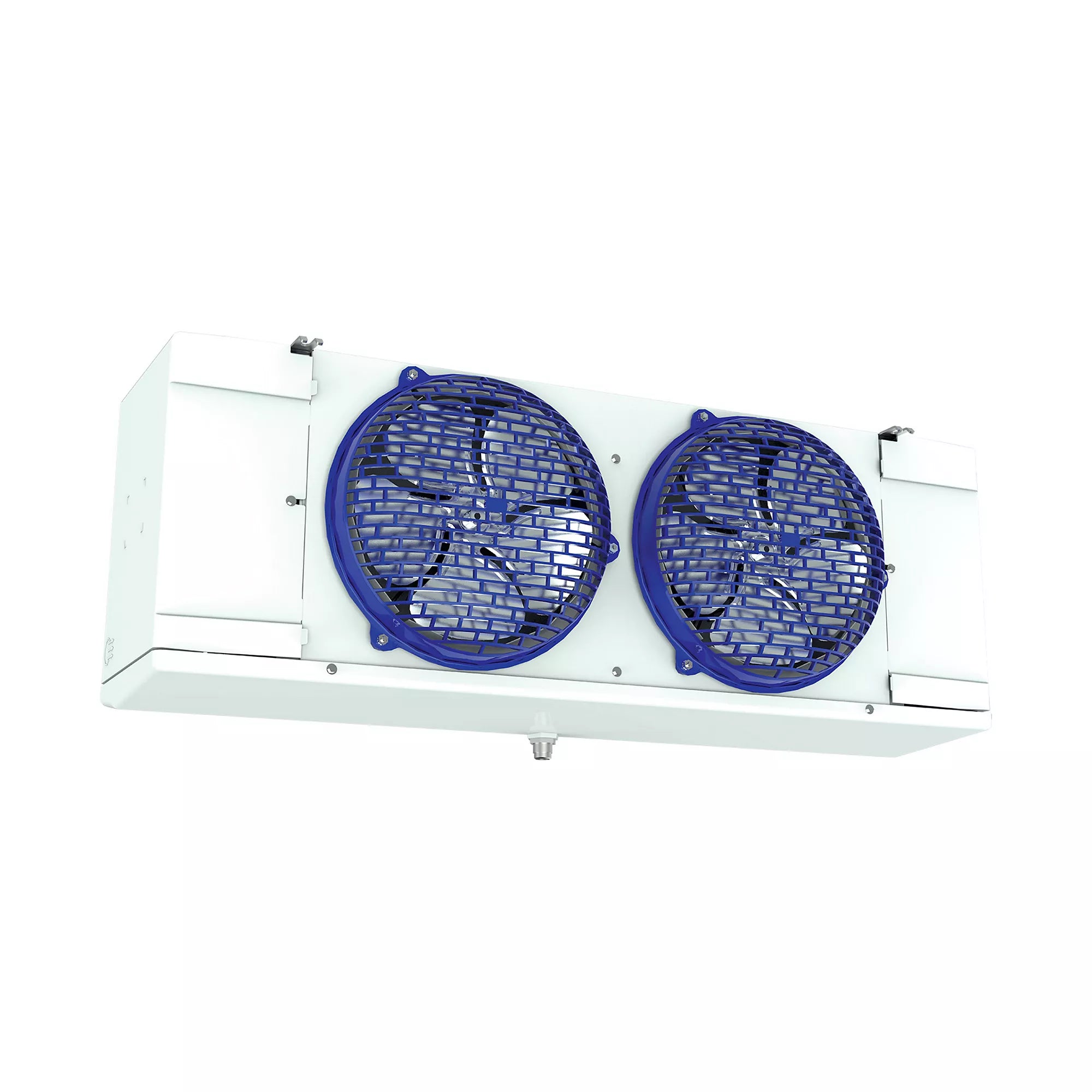

The Larkin LEL0240BS6EEAB0200 is a low profile unit cooler featuring a hinged, removable front access panel for easy access to electrical and refrigeration components. The unit features a molded fan guard and access panels made of durable, lightweight plastic. Designed for higher efficiency with internally enhanced tubing and fin design.

• Features hinged, removable front access panels
• Constructed with durable, lightweight, NSF and UL Sanitation rated molded plastic
• Equipped with quick-removal fan guard/motor assembly

Product Highlights

This low profile unit cooler is designed for easy installation and maintenance, featuring a factory-installed liquid line solenoid wire harness and enlarged coil heater slots.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0240BS6EEAB0200

Technical Specifications

• UOM: EA
• Amps: 2.5
• Phase: Single
• Width: 26
• Height: 25
• Length: 102
• Prop 65: Yes
• Voltage: 230 VAC
• UL Listed: Yes
• ETL Listed: No
• Motor Type: ECM (Electronically Commutated Motor)
• Cycle/Hertz: 60 Hz
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Unit Cooler Type: Walk-In
• Fins per Inch (FPI): 6
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 1 1/8"
• Unit Cooler Nominal BTU: 40000
• Unit Cooler Defrost Type: Electric
• Unit Cooler Number of Fans: 5
• Unit Cooler Evaporator Style: Low Profile
• Minimum Circuit Ampacity (MCA): 2.6
• Cooling Capacity: 24200 BTU/Hour
• Current Rating: 2.5 Amp (Motor), 2.6 Amp (Minimum Circuit Ampacity), 15 Amp (Maximum Over Current Protection)
• Frequency Rating: 60 Hertz
• Power Rating: 295 Watt (Motor)
• Enclosure Material: Stainless Steel
• Manufacturer Name: Larkin
• Manufacturer Part Number: LEL0240BS6EEAB0200
• Number Of Phases: 1
• Series/Model: BS6EEA
• Type: Low Profile
