Larkin LEL0170BS6EEAB0200 Evaporator Low Profile 1-Speed EC 17000 BTU

Product Description

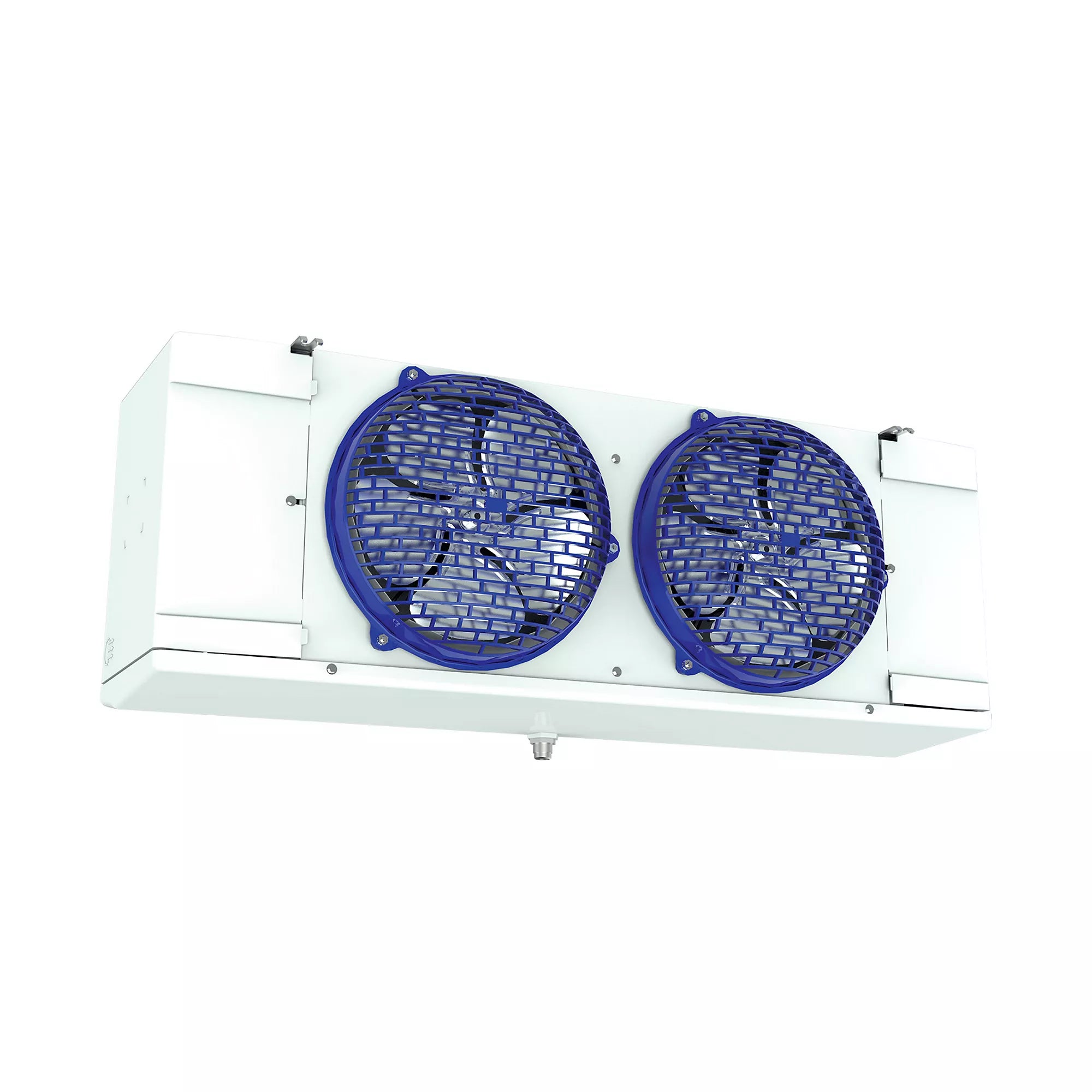

The Larkin LEL0170BS6EEAB0200 is a low profile unit cooler with hinged, removable front access panels for easy access to electrical and refrigeration components. It features a molded fan guard and access panels made of durable, NSF and UL Sanitation rated plastic material. Designed for walk-in coolers, it operates at 230 VAC and utilizes a single-speed EC motor.

• Cabinet design features hinged, removable front access panels
• Molded fan guard and access panels are made of strong, durable, NSF and UL Sanitation rated lightweight and damage-resistant molded plastic material

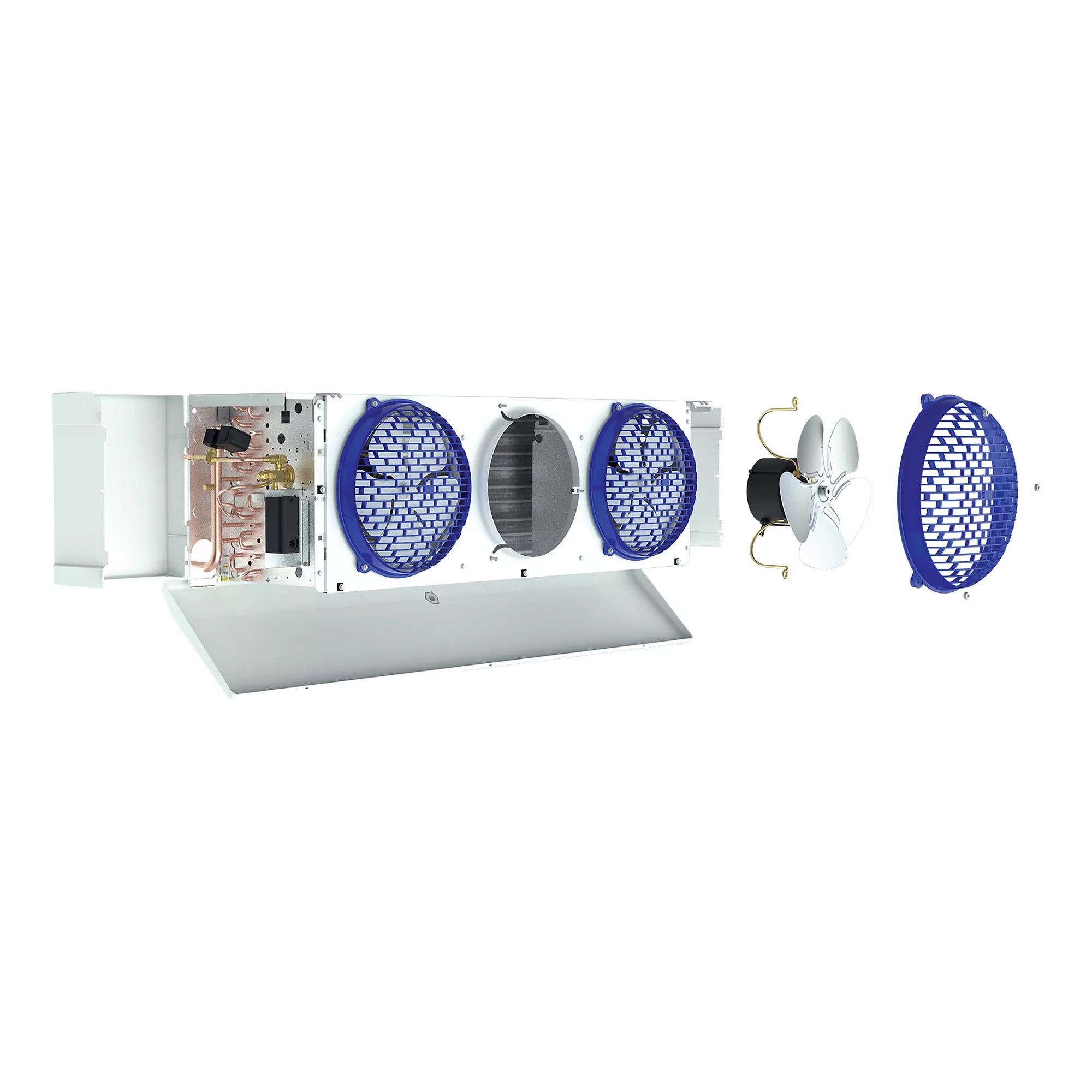

• Quick-removal fan guard/motor assembly for easier servicing of air mover parts

Product Highlights

This low profile evaporator is ideal for commercial refrigeration, offering efficient cooling and easy maintenance with its accessible design and durable construction.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0170BS6EEAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Unit Cooler Nominal BTU: 17000
• Voltage: 230 VAC
• Amps: 2
• Cycle/Hertz: 60 Hz
• Phase: Single
• Motor Type: ECM (Electronically Commutated Motor)
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Unit Cooler Type: Walk-In
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Number of Fans: 4
• Minimum Circuit Ampacity (MCA): 2.1
• UL Listed: Yes
• ETL Listed: No
• Fins per Inch (FPI): 6
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 7/8"
• Unit Cooler Defrost Type: Electric
• Energy Star Rated: No
• Prop 65: Yes
• Cooling Capacity: 16750 BTU/Hour
• Number of Fans: 4
• Flow Rate: 2741 CFM
• Coil Inlet Outer Diameter: 1/2 Inch
• Suction Outer Diameter: 7/8 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain Size: 3/4 Inch Threaded
• Height: 21
• Length: 82.5
• Width: 22.1
