Larkin LEL0155BS6EEAB0200 Evaporator Low Profile 15500 BTU

Product Description

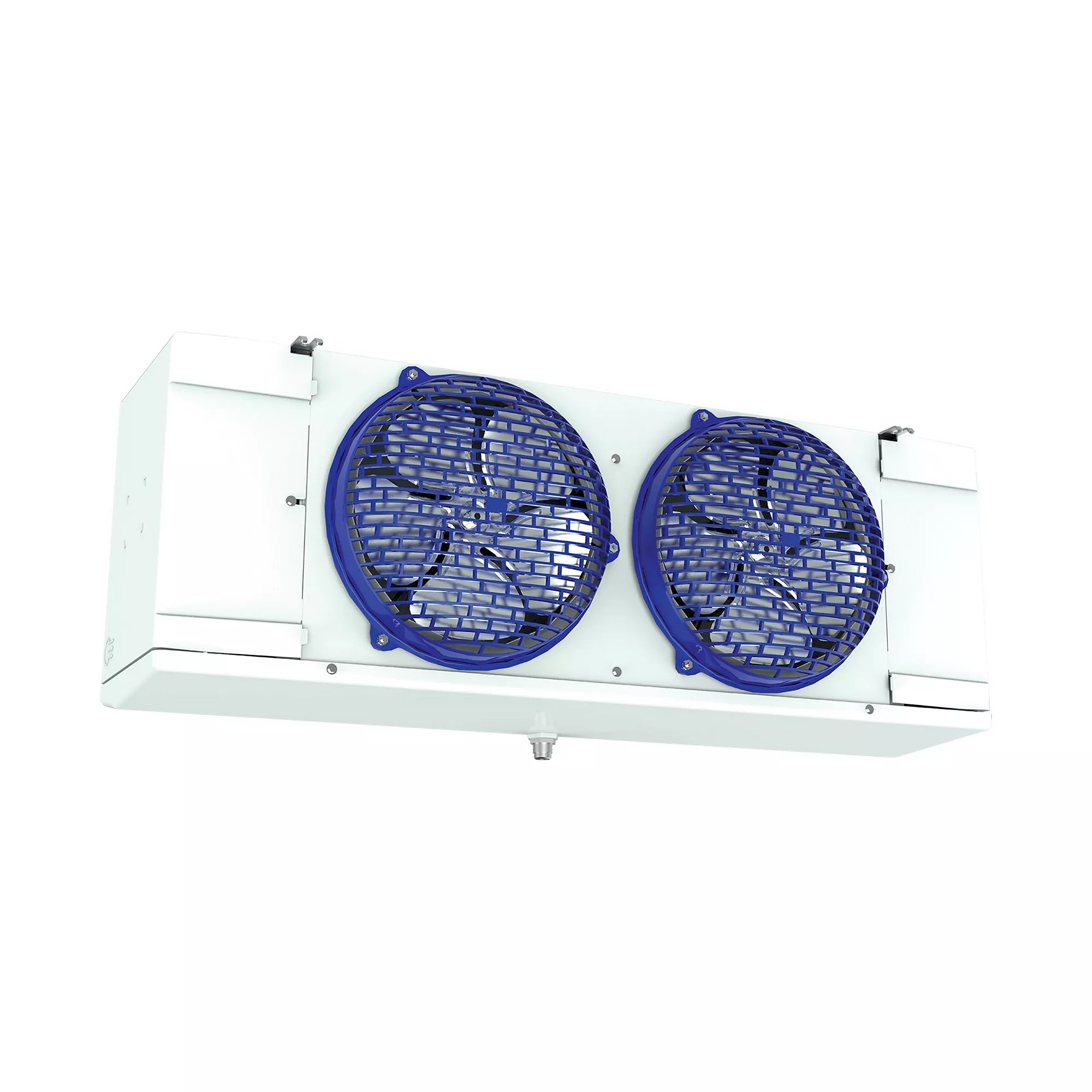

The Larkin LEL0155BS6EEAB0200 is a low profile evaporator unit cooler with a cooling capacity of 15500 BTU/Hour. Designed for walk-in coolers, it features hinged, removable front access panels and a molded fan guard made of durable plastic. The unit operates at 230 VAC, 60 Hz, single phase. Includes intelliGen Refrigeration Controller.

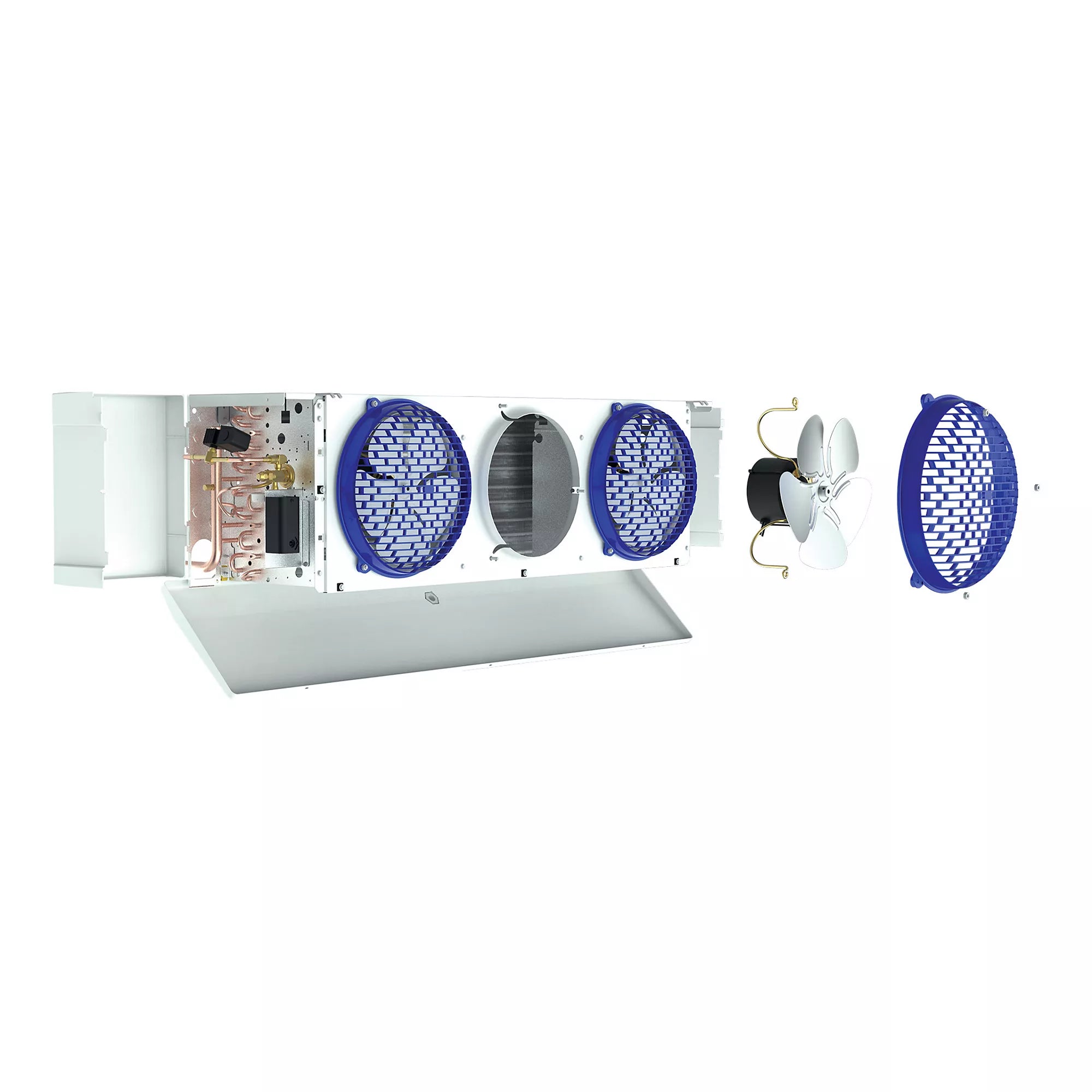

• Features a cabinet design with hinged, removable front access panels.
• Equipped with a quick-removal fan guard/motor assembly for easy servicing.
• Includes a large diameter drain hole (3/4" ID) located towards the back of the unit.

Product Highlights

This low profile evaporator is ideal for walk-in coolers, offering efficient cooling and easy maintenance with its accessible design and durable construction.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0155BS6EEAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Height: 21
• Length: 66
• UL Listed: Yes
• Voltage: 230 VAC
• Amps: 1.5
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• ETL Listed: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 1 1/8"
• Unit Cooler Defrost Type: Electric
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 15500
• Unit Cooler Number of Fans: 3
• Unit Cooler Type: Walk-In
• Width: 22.1
• Minimum Circuit Ampacity (MCA): 1.6
• Country of Origin: USA
• Flow Rate: 1922 CFM
• Number of Circuits: 8
• Coil Inlet Outer Diameter: 1/2 Inch
• Suction Outer Diameter: 1-1/8 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain Size: 3/4 Inch Threaded
• Approval: UL (Canada and US), NSF
• Cooling Capacity: 15550 BTU/Hour
• Current Rating: 1.5 Amp (Motor), 1.6 Amp (Minimum Circuit Ampacity), 15 Amp (Maximum Over Current Protection)
• Enclosure Material: Stainless Steel
• Frequency Rating: 60 Hertz
• Manufacturer Name: Larkin
• Manufacturer Part Number: LEL0155BS6EEAB0200
• Number Of Phases: 1
• Power Rating: 177 Watt (Motor)
• Series/Model: BS6EEA
• Type: Low Profile
• UNSPSC Code: 40101703
• Voltage Rating: 208 to 230 Volt AC
