Larkin LEL0155BS6EEAB0000 Evaporator 15500 BTU Low Profile 208-230/1/60

Product Description

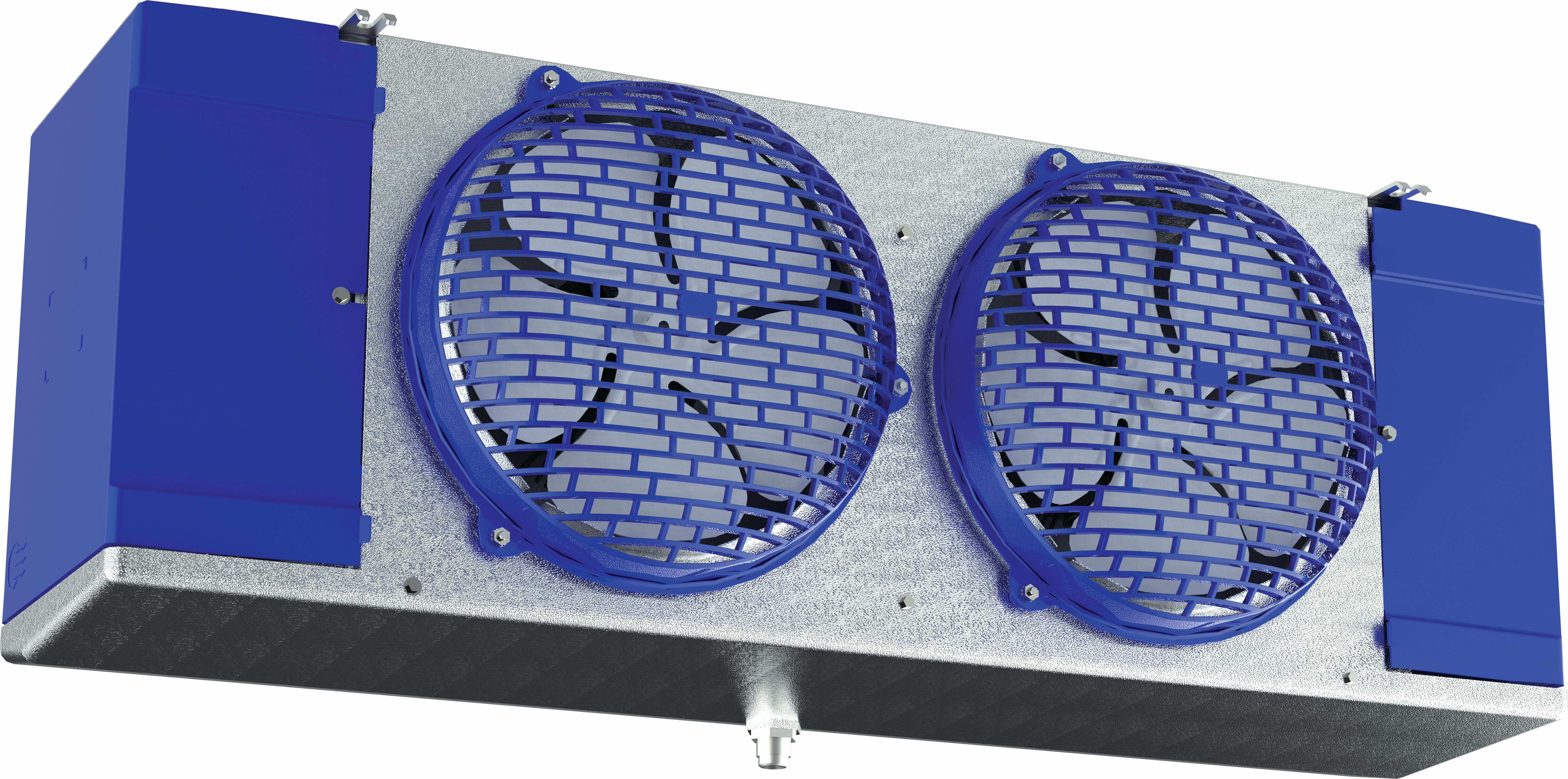

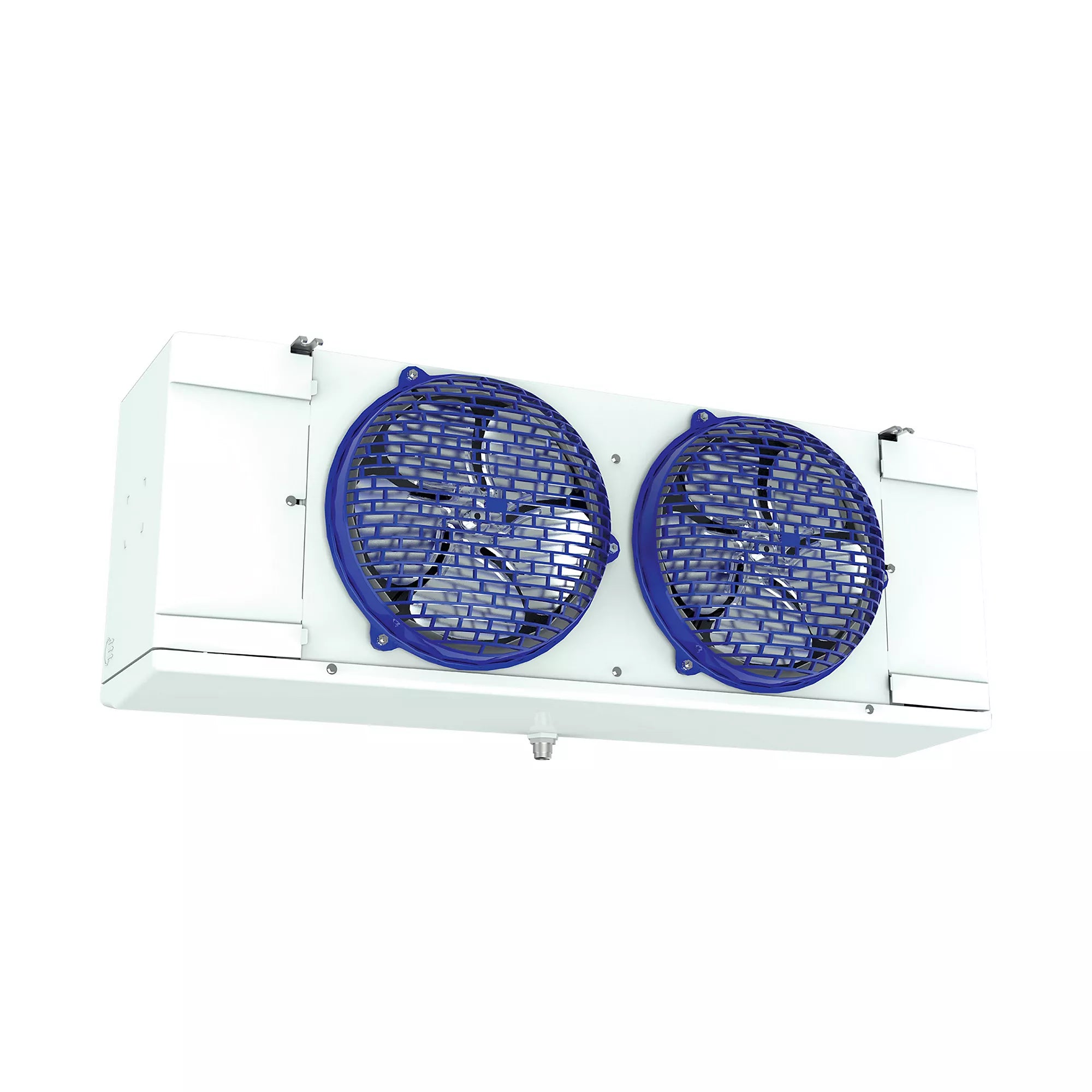

The Larkin LEL0155BS6EEAB0000 is a low profile unit cooler evaporator with a cooling capacity of 15500 BTU. Designed for walk-in applications, it features hinged, removable front access panels for easy maintenance. The unit operates on 230 VAC, single-phase power at 60 Hz and includes a factory-installed liquid line solenoid wire harness for quick installation.

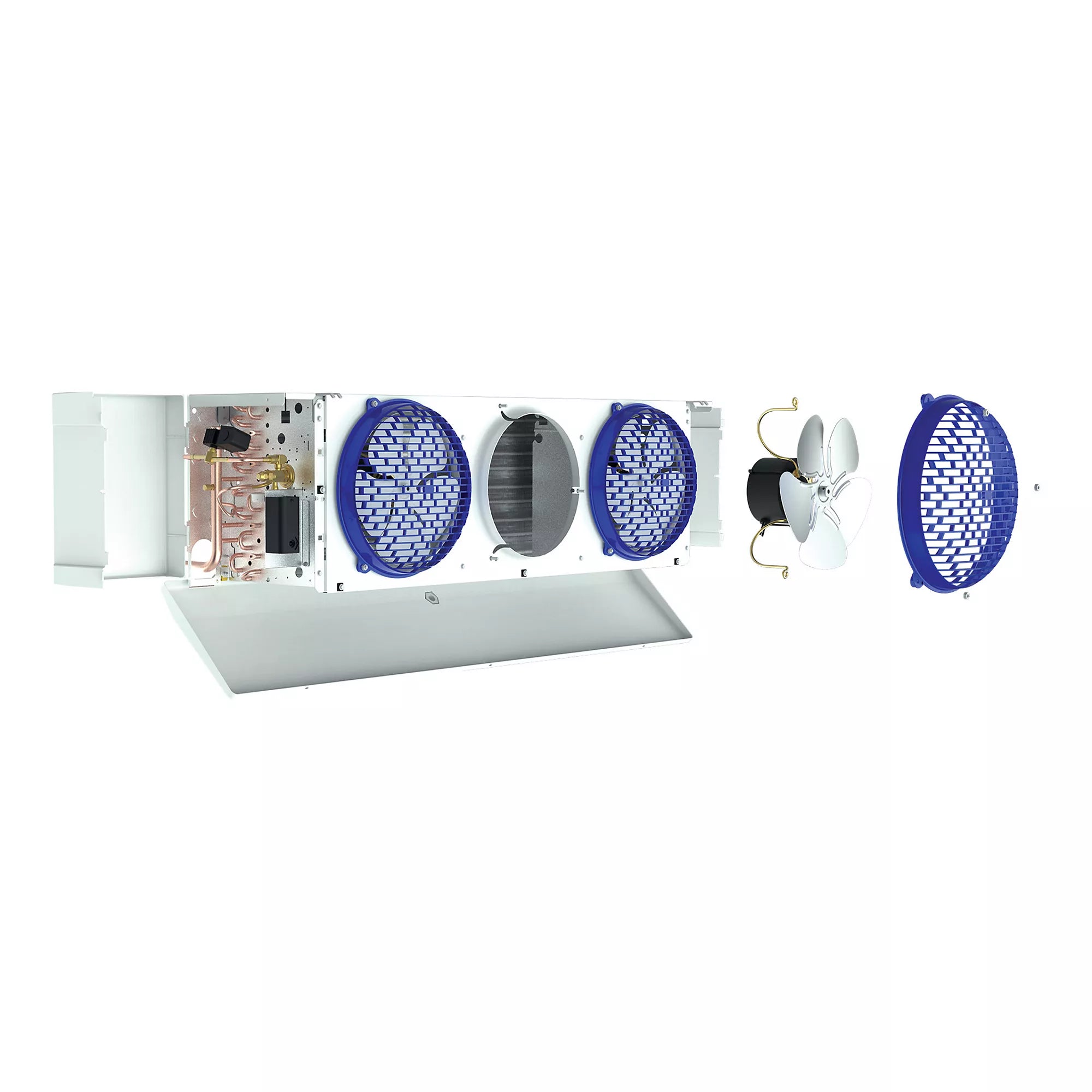

• Cabinet design features hinged, removable front access panels.
• Molded fan guard and access panels are made of durable, NSF and UL Sanitation rated plastic.
• Internally enhanced tubing and fin design for higher efficiency.

Product Highlights

This low profile evaporator is ideal for walk-in coolers, offering efficient cooling and easy maintenance with its accessible design and durable construction.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0155BS6EEAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Manufacturer Part Number: LEL0155BS6EEAB0000
• UL Listed: Yes
• Voltage: 230 VAC
• Amps: 1.5
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• ETL Listed: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 1 1/8"
• Unit Cooler Defrost Type: Electric
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 15500
• Unit Cooler Number of Fans: 3
• Unit Cooler Type: Walk-In
• Minimum Circuit Ampacity (MCA): 1.6
• Cooling Capacity: 15550 BTU/Hour
• Current Rating: 1.5 Amp (Motor), 1.6 Amp (Minimum Circuit Ampacity), 15 Amp (Maximum Over Current Protection)
• Enclosure Material: Stainless Steel
• Frequency Rating: 60 Hertz
• Power Rating: 177 Watt (Motor)
• Approval: UL (Canada and US), NSF
• Flow Rate: 1922 CFM
• Number of Circuits: 8
• Connection Size Inlet (In.): 1/2
• Connection Suction (In.): 1 1/8
• Features: Standard Base
• Heater Amps: 1.5
• Heater Watts: 177
• Horsepower: 1/20
• Application: Low Temp
• AWEF: 4.09
• BtuH @ 10° TD: 14000
• BtuH @ 12° TD: 16800
• BtuH @ 15° TD: 21000
• Volts: 208-230
