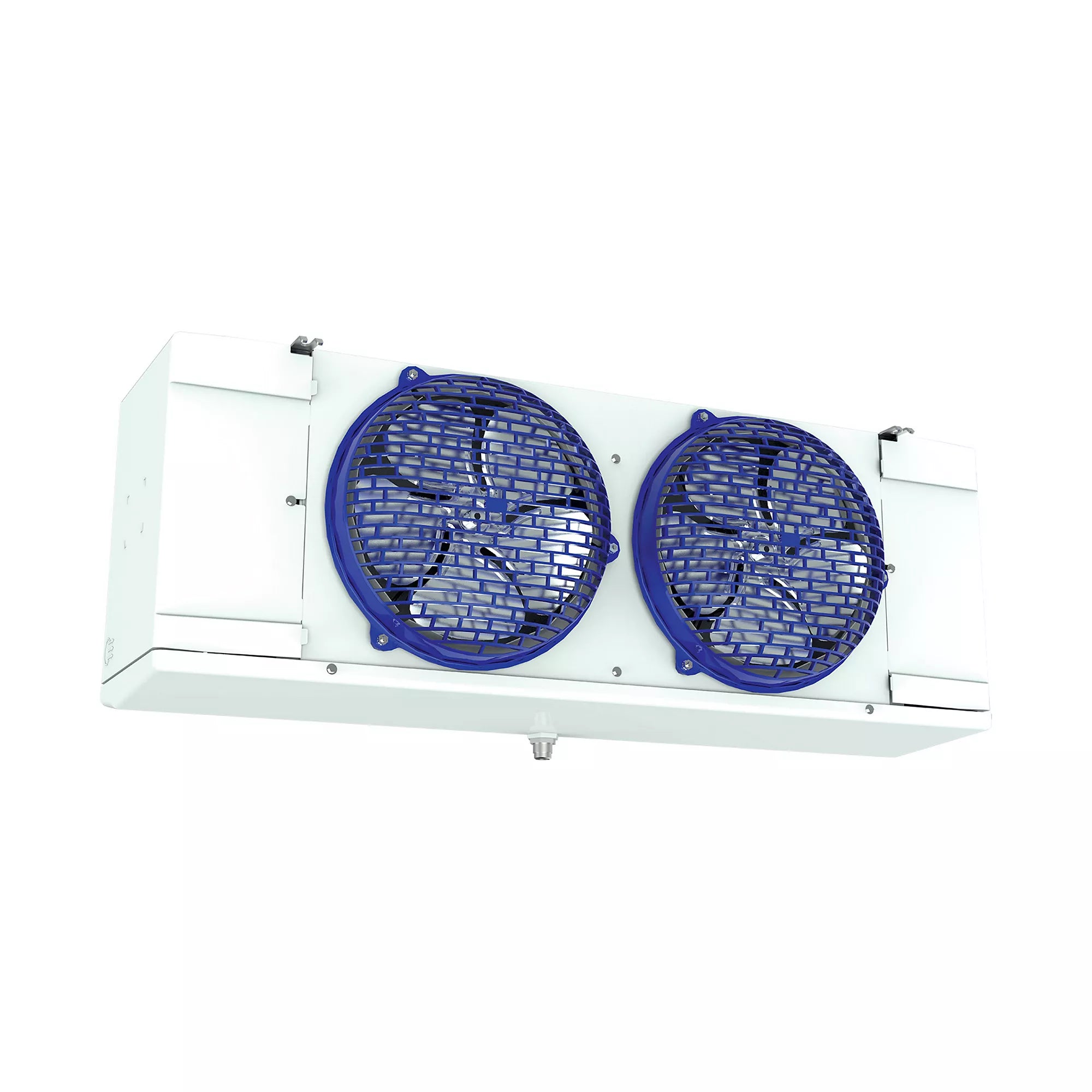

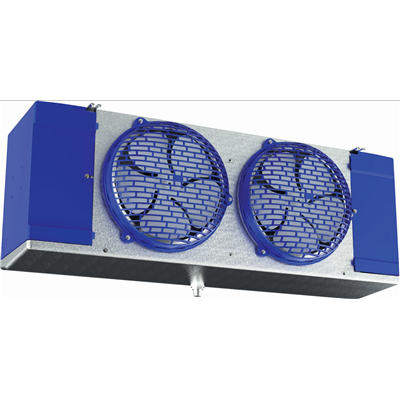

Larkin LEL0155AS6AMAB0200 Evaporator, Low Profile, 2-Speed EC, 115/1/60

Product Description

The Larkin LEL0155AS6AMAB0200 is a low profile unit cooler featuring a cabinet design with hinged, removable front access panels for easy access. The molded fan guard and access panels are made of durable, NSF and UL Sanitation rated plastic. It has quick-removal fan guard/motor assembly for easier servicing.

• Features hinged, removable front access panels
• Molded fan guard and access panels are made of strong, durable, NSF and UL Sanitation rated lightweight and damage-resistant molded plastic material

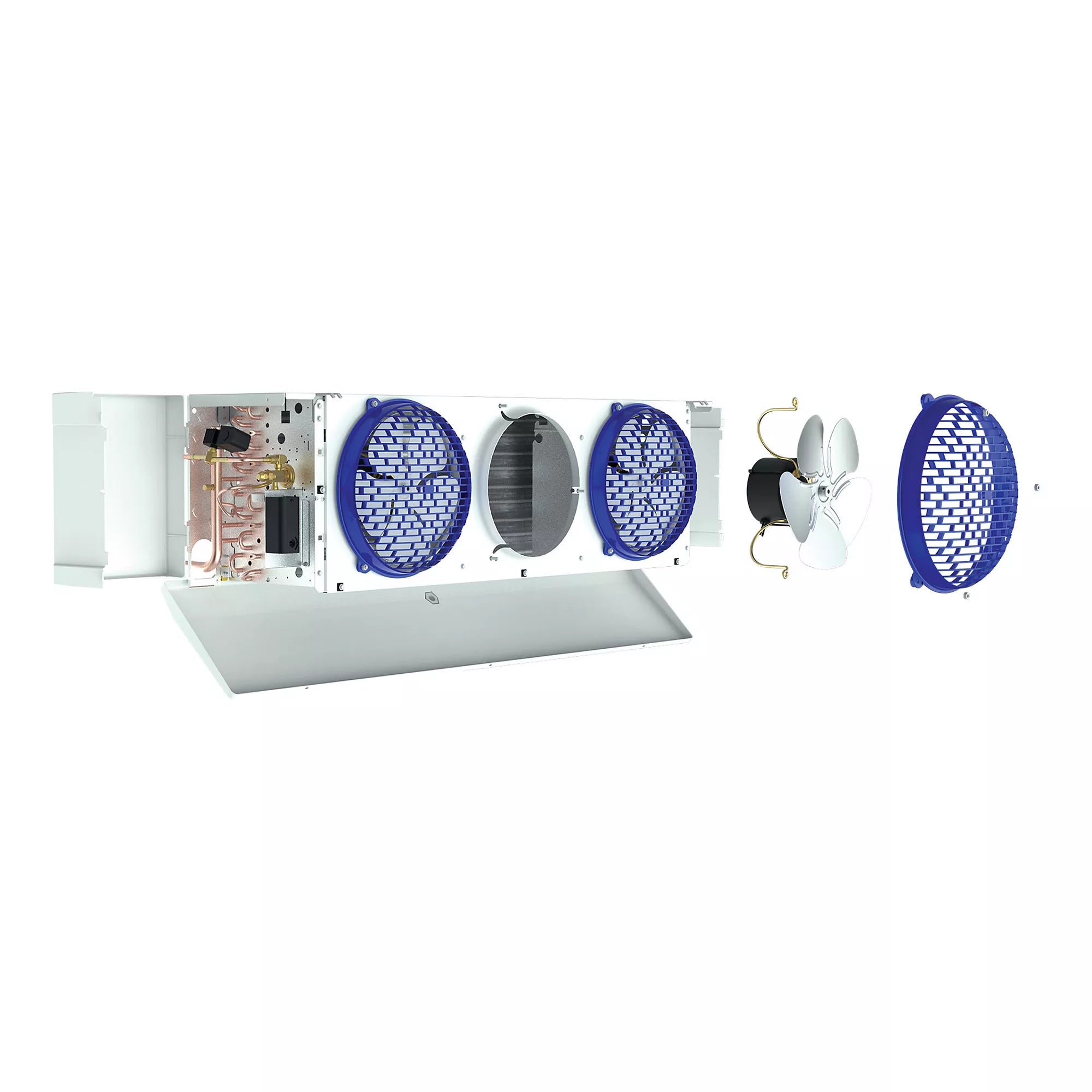

• Quick-removal fan guard/motor assembly for easier servicing of air mover parts

Product Highlights

This low profile evaporator is designed for easy access and servicing, with durable construction and efficient cooling.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0155AS6AMAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• UL Listed: Yes
• Voltage: 115 VAC
• Amps: 1.8
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 7/8"
• Unit Cooler Defrost Type: Air
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 15500
• Unit Cooler Number of Fans: 3
• Unit Cooler Type: Walk-In
• Minimum Circuit Ampacity (MCA): 2
• Country of Origin: USA
• Cooling Capacity: 15500 BTU/Hour
• Current Rating: 2.7 Amp (Motor), 2.9 Amp (Minimum Circuit Ampacity), 20 Amp (Maximum Over Current Protection)
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Power Rating: 165 Watt (Motor)
• Enclosure Material: Stainless Steel
• Approval: UL (Canada and US), NSF
• Additional Information: Motor Type 2-Speed EC; Refrigerant Type R-404A/R-448A/R-449A/R-407A/R-407F/R-407C; Number of Fans 3; Flow Rate 1958 CFM; Number of Circuits 4; Coil Inlet Outer Diameter 1/2 Inch; Suction Outer Diameter 7/8 Inch; Equalizer Outer Diameter 1/4 Inch; Drain 3/4 Inch Male Threaded; Fins per Inch 6; Includes intelliGen Refrigeration Controller (R-404A/R-448A/R-449A)
• Configuration: Low Profile
• Defrost Type: Air Defrost
• Horsepower: 1/20th
• Line Sizes: 1/2 x 7/8
