Larkin LEL0155AS6AMAB0000 evaporator low profile 15500 BTU

Product Description

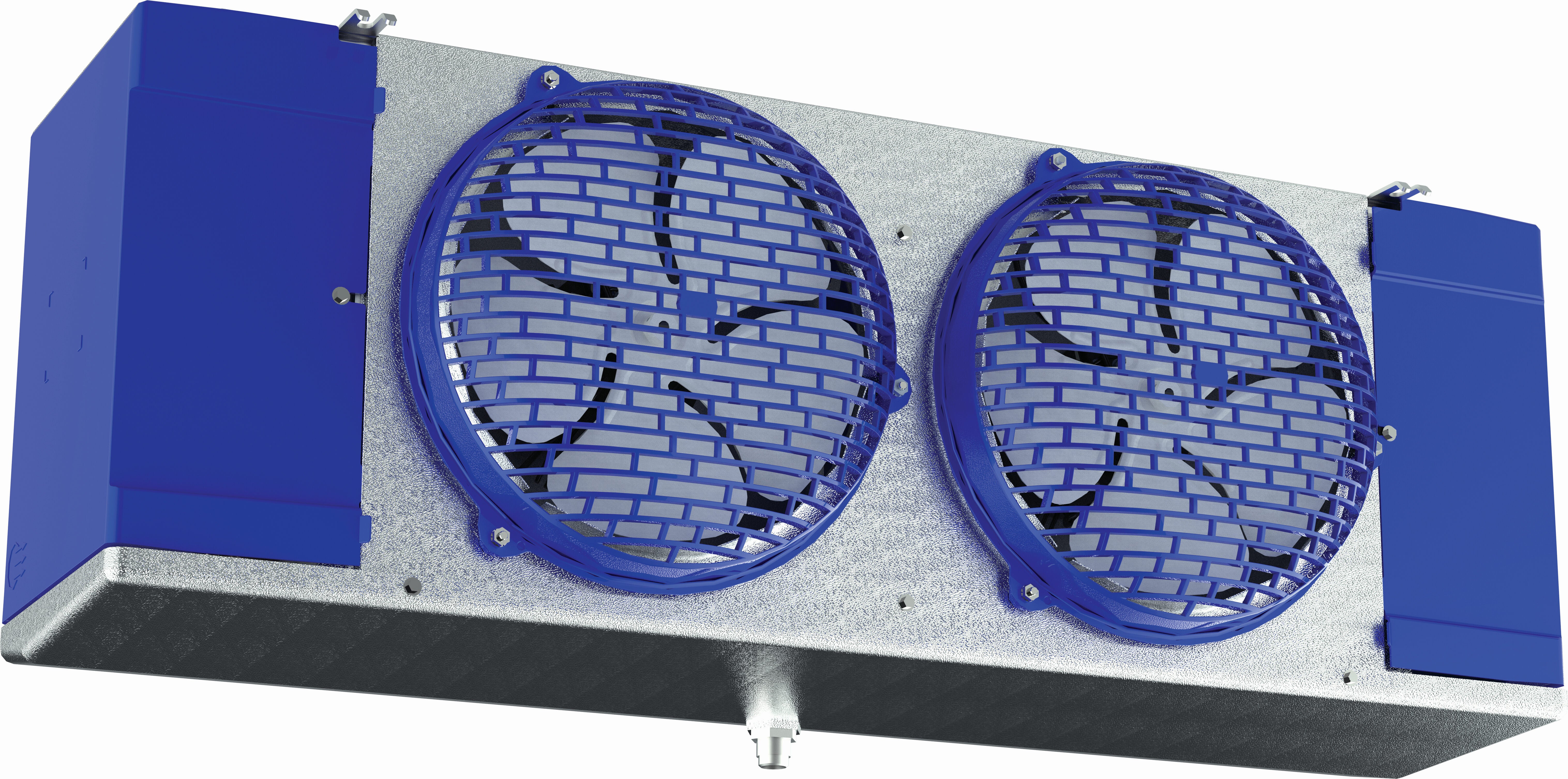

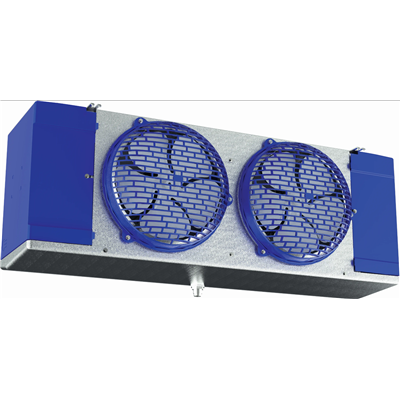

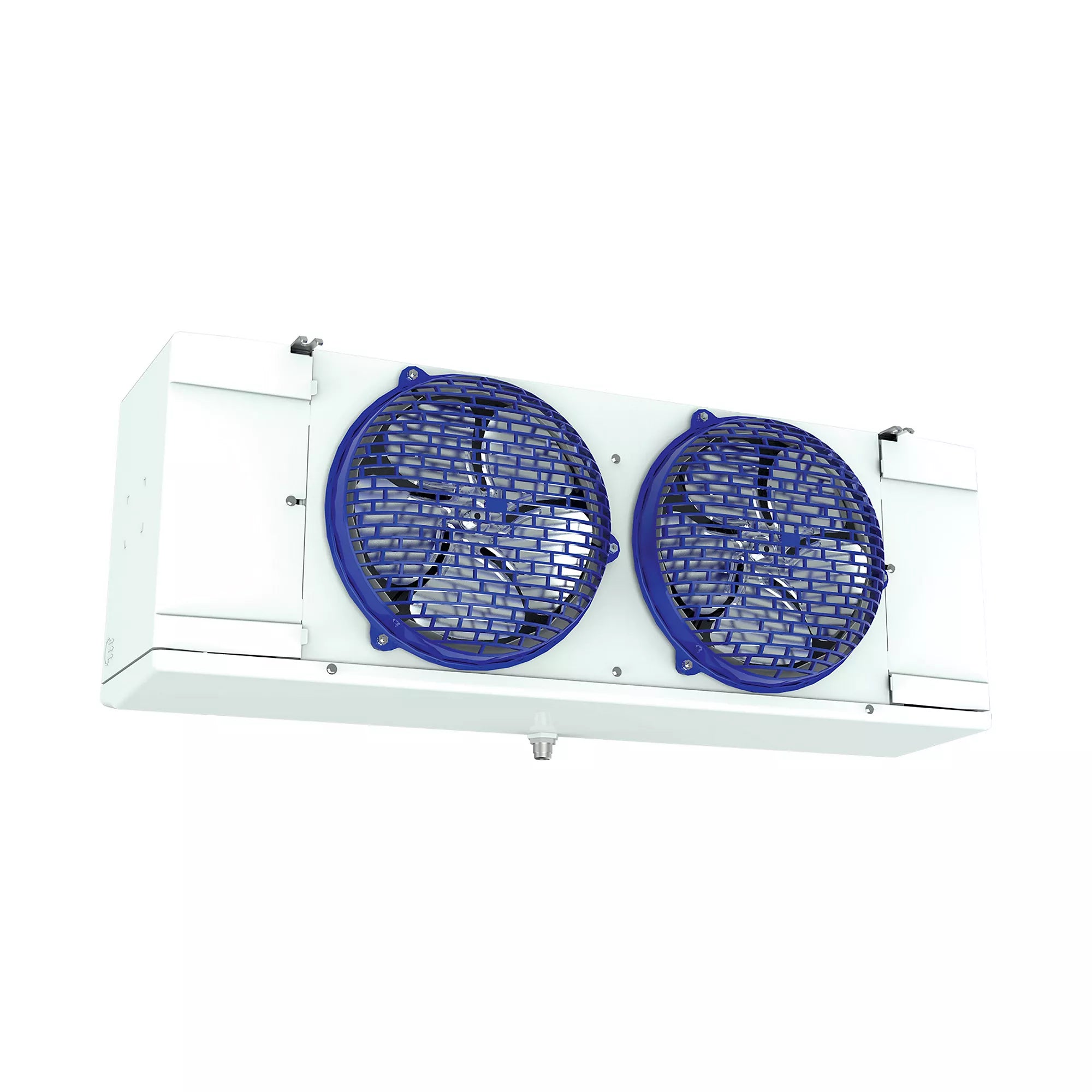

The Larkin LEL0155AS6AMAB0000 is a low profile unit cooler featuring a cabinet design with hinged, removable front access panels for easy access. It has a molded fan guard and access panels made of durable plastic. The unit features internally enhanced tubing and fin design for higher efficiency. Designed for walk-in coolers.

• Hinged, removable front access panels

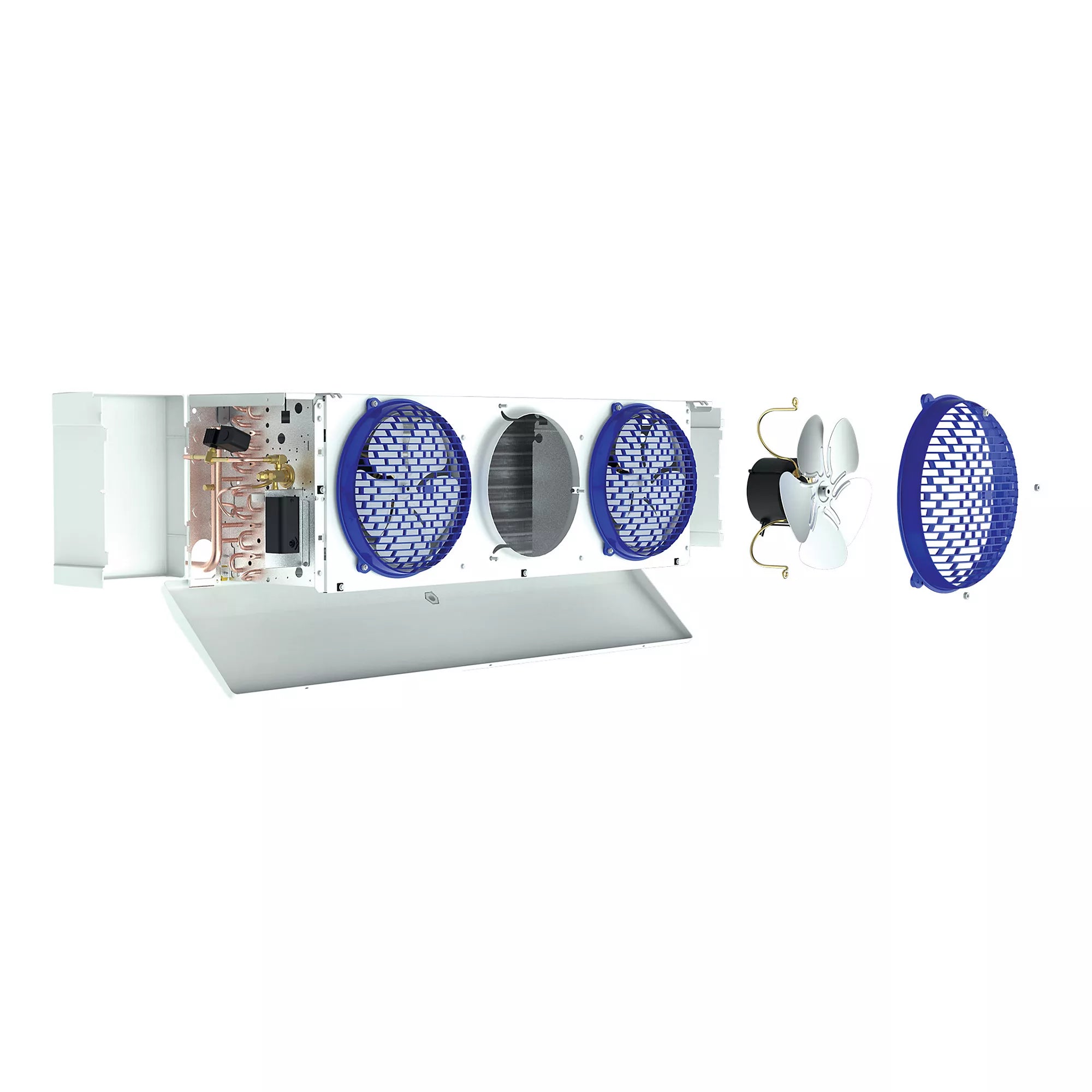

• Quick-removal fan guard/motor assembly
• Internally enhanced tubing and fin design

Product Highlights

This low profile unit cooler is designed for easy access and efficient cooling in walk-in cooler applications.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0155AS6AMAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• UL Listed: Yes
• Voltage: 115 VAC
• Amps: 1.8
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 7/8"
• Unit Cooler Defrost Type: Air
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 15500
• Unit Cooler Number of Fans: 3
• Unit Cooler Type: Walk-In
• Voltage Rating: 115 Volt AC
• Minimum Circuit Ampacity (MCA): 2
• Cooling Capacity: 15500 BTU/Hour
• Current Rating: 2.7 Amp (Motor), 2.9 Amp (Minimum Circuit Ampacity), 20 Amp (Maximum Over Current Protection)
• Enclosure Material: Stainless Steel
• Frequency Rating: 60 Hertz
• Installation: Wall
• Manufacturer Name: Larkin
• Manufacturer Part Number: LEL0155AS6AMAB0000
• Number Of Phases: 1
• Power Rating: 165 Watt (Motor)
• Series/Model: AS6AMAB
• Flow Rate: 1958 CFM
• Number of Circuits: 4
• Coil Inlet Outer Diameter: 1/2 Inch
• Suction Outer Diameter: 7/8 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain: 3/4 Inch Male Threaded
• Includes: Standard Base
• Approval: UL (Canada and US), NSF
• Heater Amps: 2.7
• Heater Watts: 165
• Horsepower: 1/20
• Connection Size Inlet (In.): 1/2
• Connection Suction (In.): 7/8
• CFM: 1220
• Application: Medium Temp, High Temp
• AWEF: 9
• BtuH @ 10° TD: 14000
• BtuH @ 12° TD: 16800
• BtuH @ 15° TD: 21000
• Defrost: AIR
• Inlet Conn.: 1/2" ODF
• Suction Conn.: 7/8" ODF
• Drain Conn.: 3/4"
