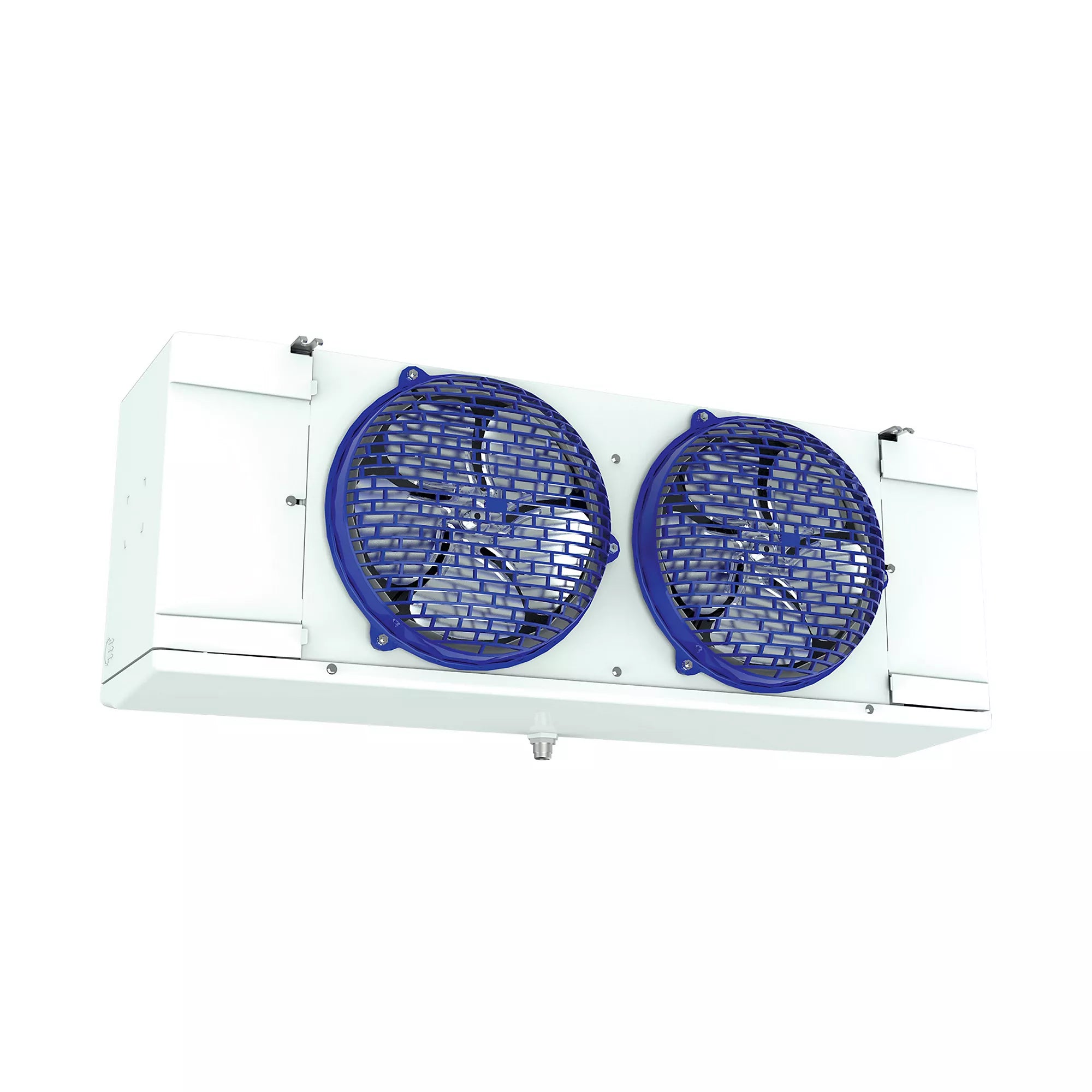

Larkin LEL0130BS6EEAB0200 13,000 BTU, Low Profile, Electric Defrost Evaporator, 1-Speed, EC Motor, 208-230/1/60

Product Description

The Larkin LEL0130BS6EEAB0200 is a 13,000 BTU low profile unit cooler with electric defrost. This evaporator features a 1-speed EC motor and is designed for walk-in freezers. The cabinet has hinged, removable front access panels for easy access to electrical and refrigeration components. It operates on 230 VAC and is suitable for use with R-404A, R-407A, R-407C, R-407F, R-448A, and R-449A refrigerants.

• Features hinged, removable front access panels
• Equipped with a quick-removal fan guard/motor assembly
• Has internally enhanced tubing and fin design for higher efficiency

Product Highlights

This low profile evaporator is ideal for walk-in freezers, offering efficient cooling and easy maintenance.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0130BS6EEAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Unit Cooler Nominal BTU: 13000
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Defrost Type: Electric
• Motor Type: ECM (Electronically Commutated Motor)
• Voltage: 230 VAC
• Amps: 1.5
• Cycle/Hertz: 60 Hz
• Phase: Single
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Unit Cooler Number of Fans: 3
• Unit Cooler Type: Walk-In
• UL Listed: Yes
• ETL Listed: No
• Prop 65: Yes
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 7/8"
• Minimum Circuit Ampacity (MCA): 1.6
• Energy Star Rated: No
• Fins per Inch (FPI): 6
• Power Rating: 351 Watt
• Airflow Rating: 2056 CFM
• Coil Inlet Outer Diameter: 1/2 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Number of Circuits: 6
• Installation: Wall
• Enclosure Material: Stainless Steel
• Application: Freezer
• Length: 66
• Width: 22.1
• Height: 21
