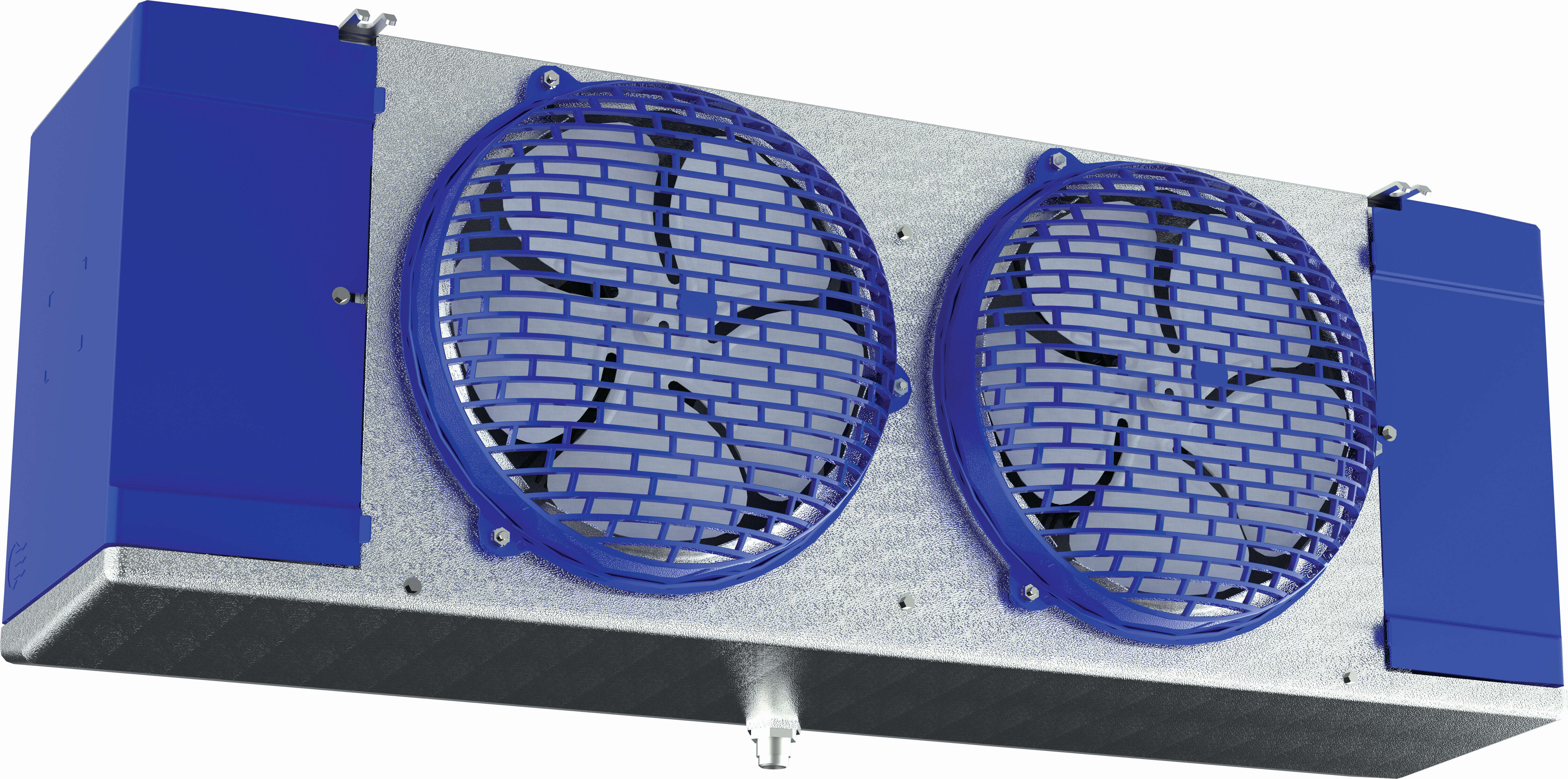

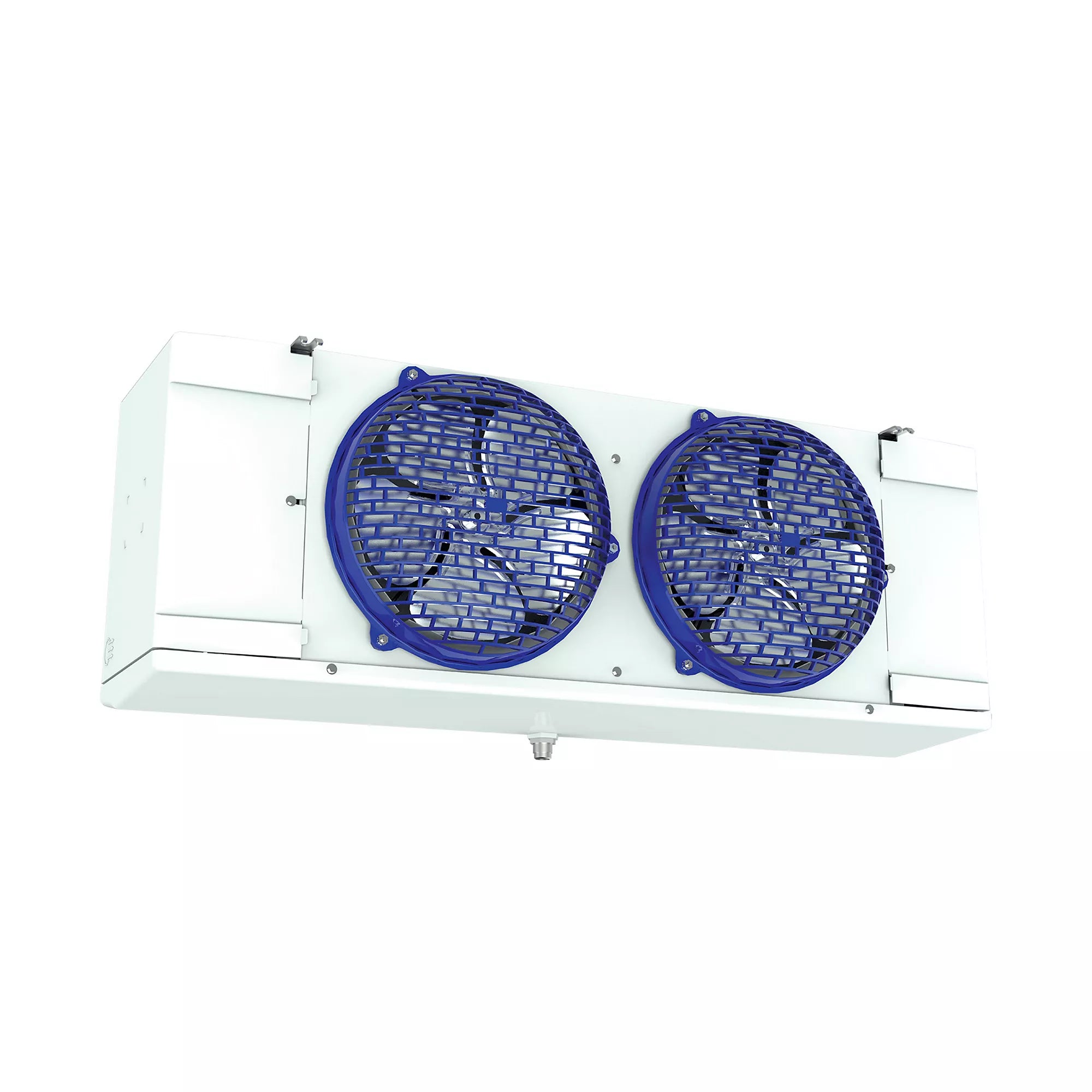

Larkin LEL0130BS6EEAB0000 13,000 BTU, Low Profile, Electric Defrost Evaporator, 1-Speed, EC Motor, 208-230/1/60

Product Description

The Larkin LEL0130BS6EEAB0000 is a low profile unit cooler with electric defrost. This evaporator features a cabinet design with hinged, removable front access panels and a molded fan guard made of durable, lightweight plastic. It is designed for walk-in freezers and coolers, offering efficient cooling with a single-speed EC motor. Operates on 208-230 VAC.

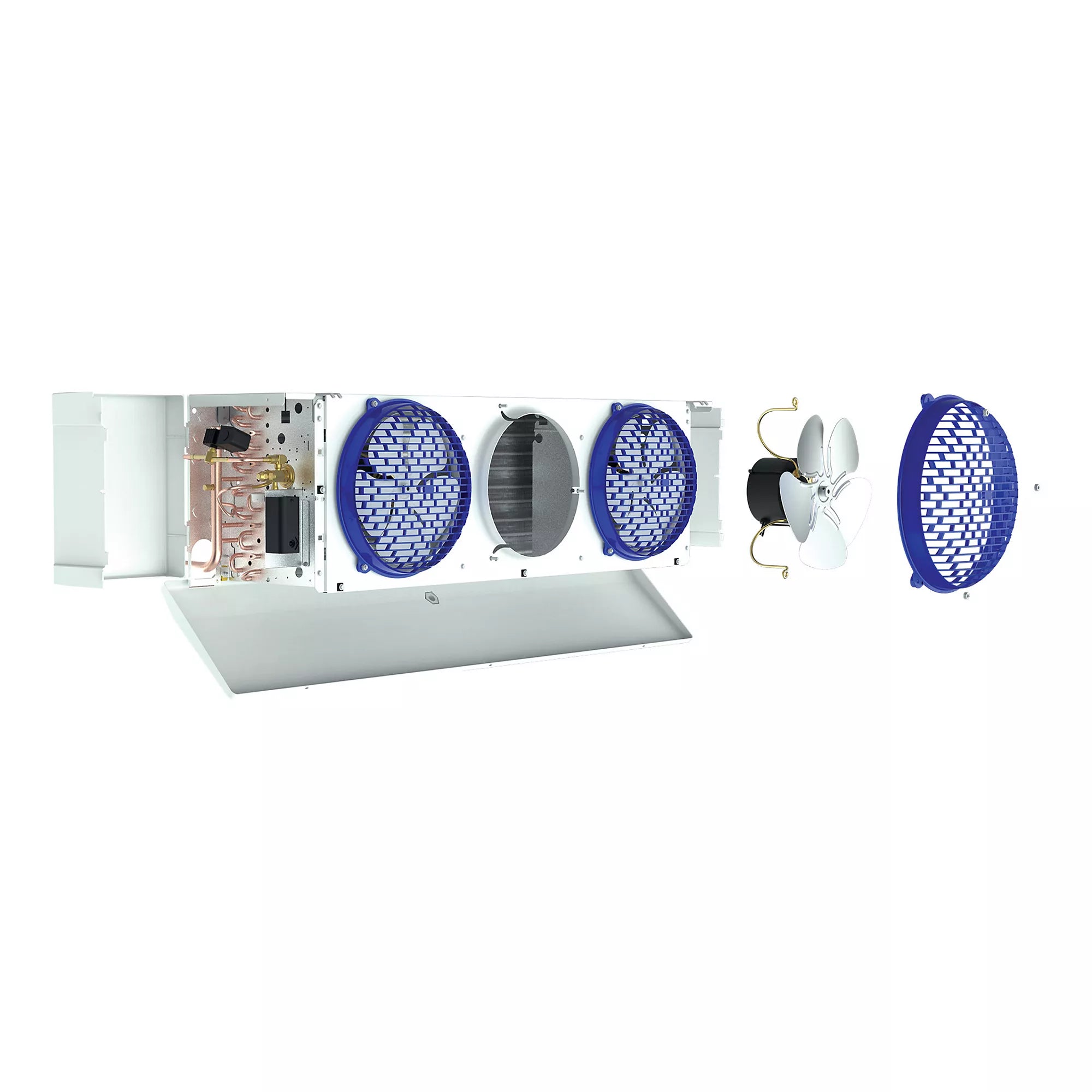

• Features hinged, removable front access panels for easy maintenance
• Equipped with a single-speed EC motor for efficient operation
• Designed with internally enhanced tubing and fin for higher efficiency

Product Highlights

Efficient low profile evaporator with electric defrost and easy access design.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0130BS6EEAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Manufacturer Part Number: LEL0130BS6EEAB0000
• Unit Cooler Nominal BTU: 13000
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Defrost Type: Electric
• Motor Type: ECM (Electronically Commutated Motor)
• Voltage: 230 VAC
• Phase: Single
• Cycle/Hertz: 60 Hz
• Amps: 1.5
• Minimum Circuit Ampacity (MCA): 1.6
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Number of Fans: 3
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 7/8"
• Drain Connection Size: 3/4"
• Unit Cooler Type: Walk-In
• Width: 22.1
• Height: 21
• Length: 66
• UL Listed: Yes
• ETL Listed: No
• Energy Star Rated: No
• Prop 65: Yes
• Cooling Capacity: 13000 BTU/Hour
• Power Rating: 351 Watt
• Installation: Wall
• Enclosure Material: Stainless Steel
• Airflow Rating: 2056 CFM
• Connection Size Inlet (In.): 1/2
• Connection Suction (In.): 7/8
• Heater Amps: 1.5
• Heater Watts: 177
• Horsepower: 1/20
• Refrigerant Type: R-404A/R-448A/R-449A/R-407A/R-407F/R-407C
• BtuH @ 10° TD: 12000
• BtuH @ 12° TD: 14400
• BtuH @ 15° TD: 18000
• Depth: 13.25
• Inlet Conn.: 1/2" ODF
• Suction Conn.: 7/8" ODF
• Volts: 208-230
• AWEF: 4.06
