Larkin LEL0125AS6AMAB0000 Evaporator, Low Profile, 2-Speed EC, 12500 BTU 115 VAC

Brand: LARKIN
SKU: LEL0125AS6AMAB0000
Availability: Out Of Stock
$2,260.68
$2,260.68
LTL Delivery

This product weighs 72 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

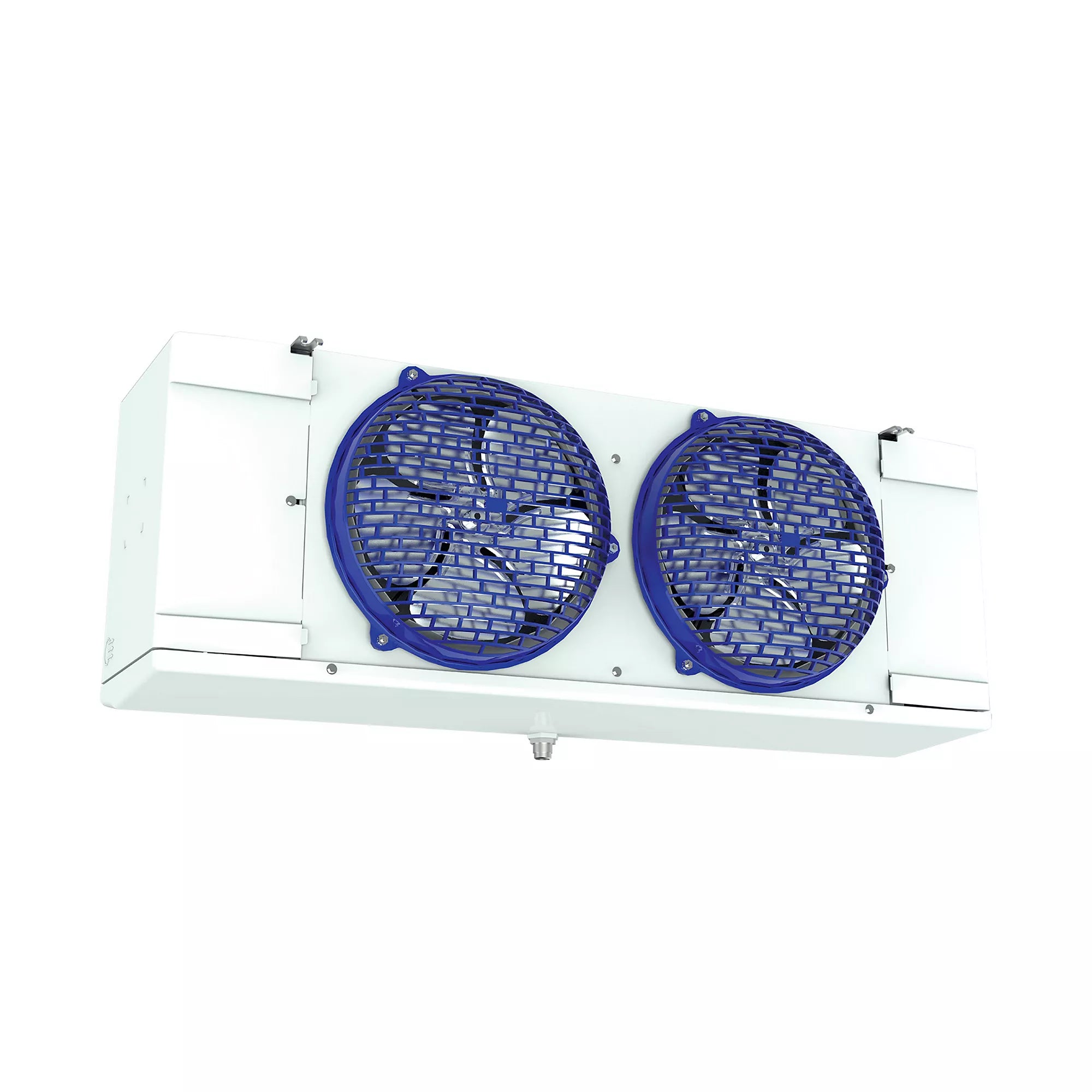

The Larkin LEL0125AS6AMAB0000 is a low profile evaporator unit cooler with a 12500 BTU cooling capacity. It features hinged, removable front access panels for easy access to electrical and refrigeration components. The molded fan guard and access panels are made of durable, NSF and UL Sanitation rated plastic material. Designed for walk-in coolers, this unit operates at 115 VAC and includes a 2-speed EC motor.

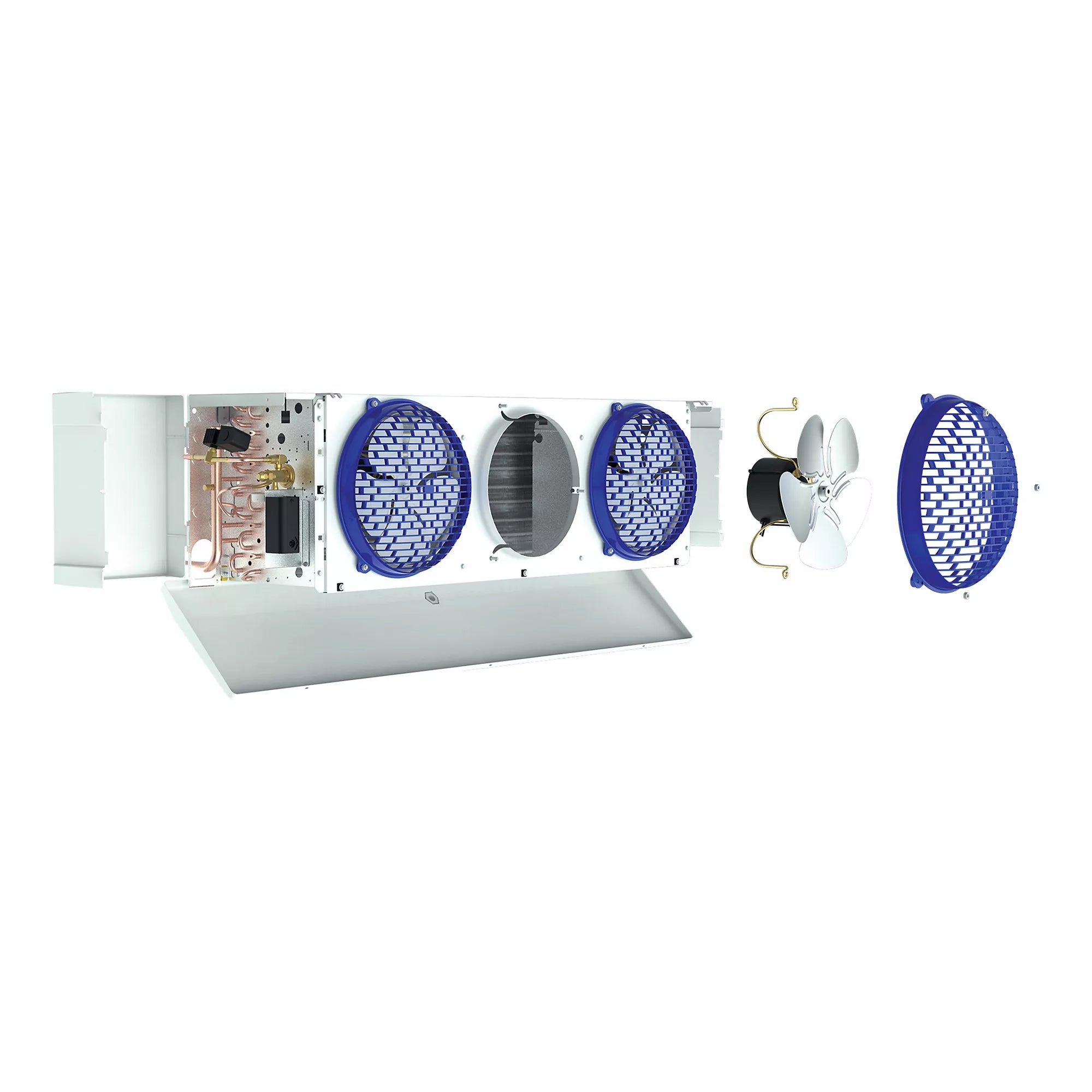

  • Cabinet design features hinged, removable front access panels for easy access.
  • Molded fan guard and access panels are made of strong, durable plastic.
  • 2-Speed EC motors standard on Air Defrost models.

Product Highlights

This low profile evaporator is ideal for walk-in coolers, offering efficient cooling and easy maintenance.

Product Information

Standard Information

  • Brand: LARKIN
  • Manufacturer Part Number: LEL0125AS6AMAB0000
  • Country of Origin: USA
Technical Specifications
Brand
Larkin
Unit Cooler Nominal BTU
12500
Unit Cooler Evaporator Style
Low Profile
Voltage
115 VAC
Amps
1.8
Cycle/Hertz
60 Hz
Phase
Single
Motor Type
ECM (Electronically Commutated Motor)
Unit Cooler Defrost Type
Air
UL Listed
Yes
ETL Listed
No
Prop 65
Yes
Width
22.1
Height
21
Length
49.5
Minimum Circuit Ampacity (MCA)
2
Refrigerant
Various
Drain Connection Size
3/4"
Liquid Line Size (OD)
1/2"
Suction Line Size (OD)
7/8"
Fins per Inch (FPI)
6
Unit Cooler Type
Walk-In
Energy Star Rated
No
Cooling Capacity
12500 BTU/Hour
Power Rating
110 Watt (Motor)
Installation
Wall
Enclosure Material
Stainless Steel
Number of Fans
2
Airflow Rating
1425 CFM
Refrigerant Type
R-404A/R-448A/R-449A/R-407A/R-407F/R-407C
Connection Size Inlet (In.)
1/2
Connection Suction (In.)
7/8
Heater Watts
110
Heater Amps
1.8
AWEF
9
BtuH @ 10° TD
13000
BtuH @ 12° TD
15600
BtuH @ 15° TD
19500
CFM
1220
Defrost
AIR
Depth
13.25
Inlet Conn.
1/2" ODF
Suction Conn.
7/8" ODF
