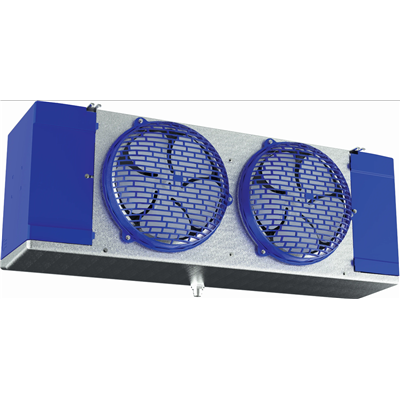

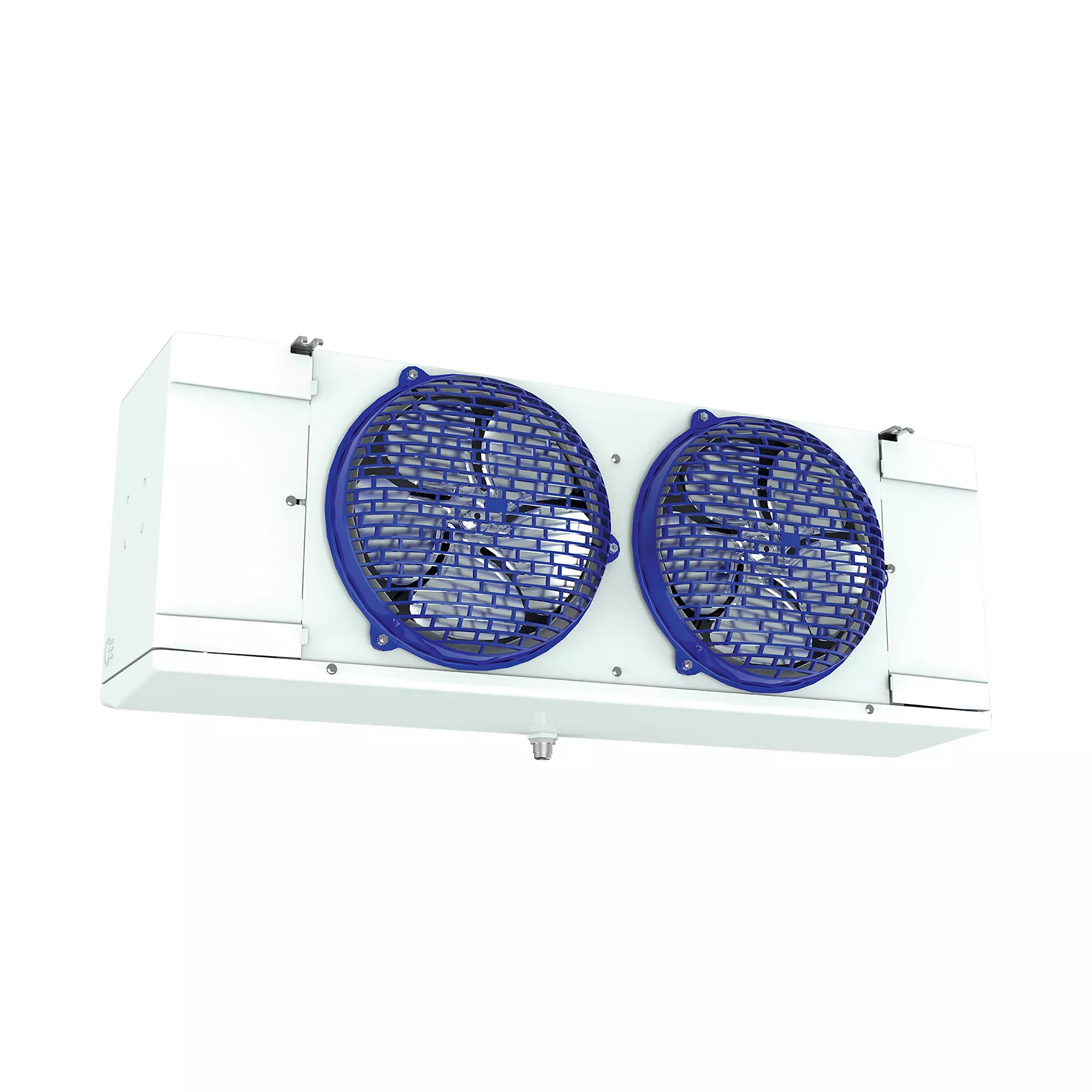

Larkin LEL0095AS6AMAB0200 Evaporator 9500 BTU Low Profile 2-Speed EC

Product Description

The Larkin LEL0095AS6AMAB0200 is a low profile unit cooler with a 9500 BTU cooling capacity. It features hinged, removable front access panels for easy access to electrical and refrigeration components. The unit has a molded fan guard and access panels made of durable, NSF and UL Sanitation rated plastic material. It operates at 115 VAC and includes a 2-Speed EC motor.

• Cabinet design features hinged, removable front access panels
• Molded fan guard and access panels are made of strong, durable plastic

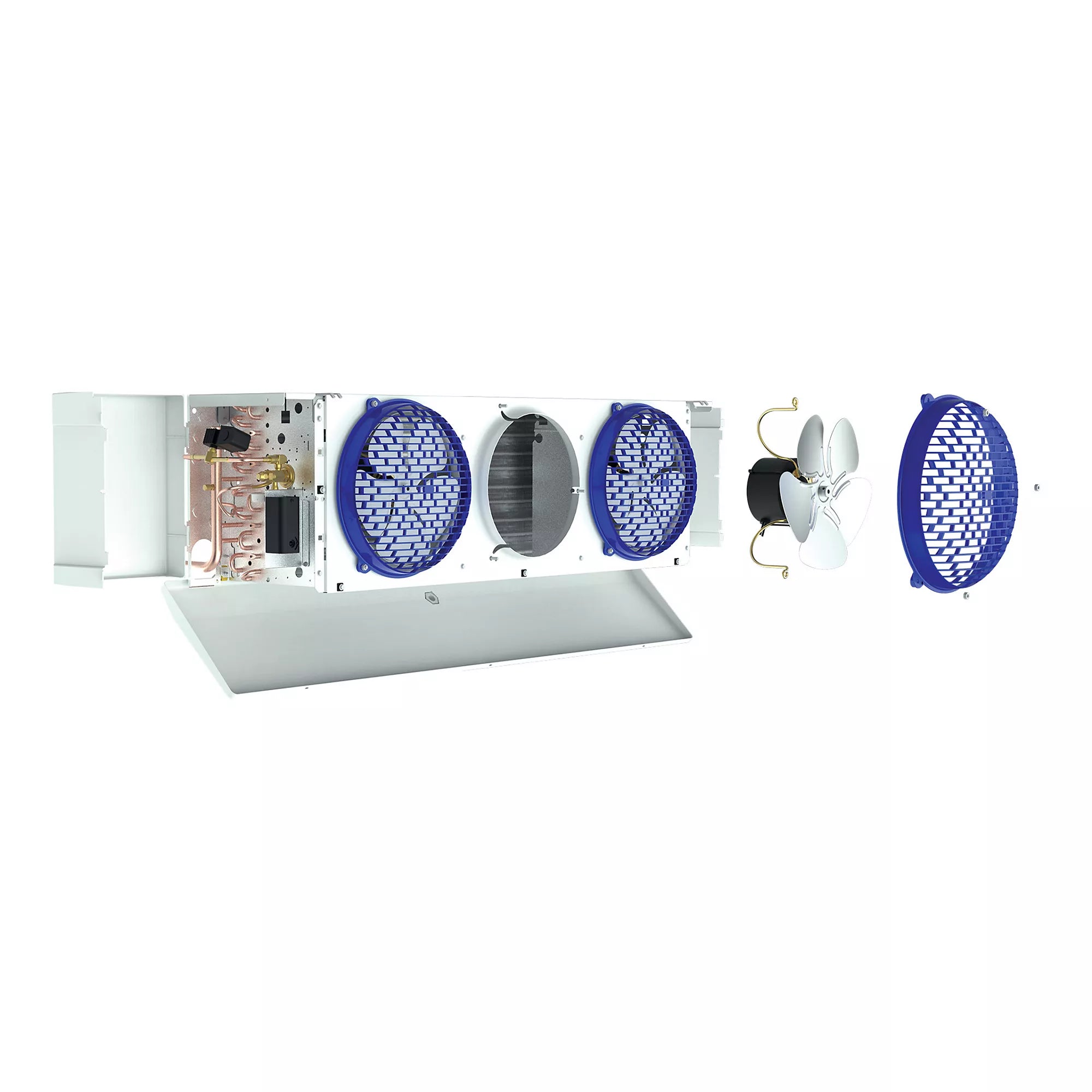

• Quick-removal fan guard/motor assembly for easier servicing

Product Highlights

This low profile evaporator is designed for walk-in coolers and freezers, offering efficient cooling and easy maintenance.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0095AS6AMAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Manufacturer Part Number: LEL0095AS6AMAB0200
• Unit Cooler Nominal BTU: 9500
• Unit Cooler Evaporator Style: Low Profile
• Motor Type: ECM (Electronically Commutated Motor)
• Voltage: 115 VAC
• Amps: 1.8
• Cycle/Hertz: 60 Hz
• Phase: Single
• Unit Cooler Type: Walk-In
• Unit Cooler Defrost Type: Air
• Unit Cooler Number of Fans: 2
• UL Listed: Yes
• ETL Listed: No
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 5/8"
• Fins per Inch (FPI): 6
• Minimum Circuit Ampacity (MCA): 2
• Country of Origin: USA
• Cooling Capacity: 9500 BTU/Hour
• Power Rating: 110 Watt (Motor)
• Airflow Rating: 1425 CFM
• Number of Fans: 2
• Inlet Connection: 1/2" ODF
• Suction Connection: 5/8" ODF
• Horsepower: 1/20
• Configuration: Low Profile
• Defrost Type: Air Defrost
