Larkin LEL0095AS6AMAB0000 Evaporator Low Profile 9500 BTU 115 VAC

Product Description

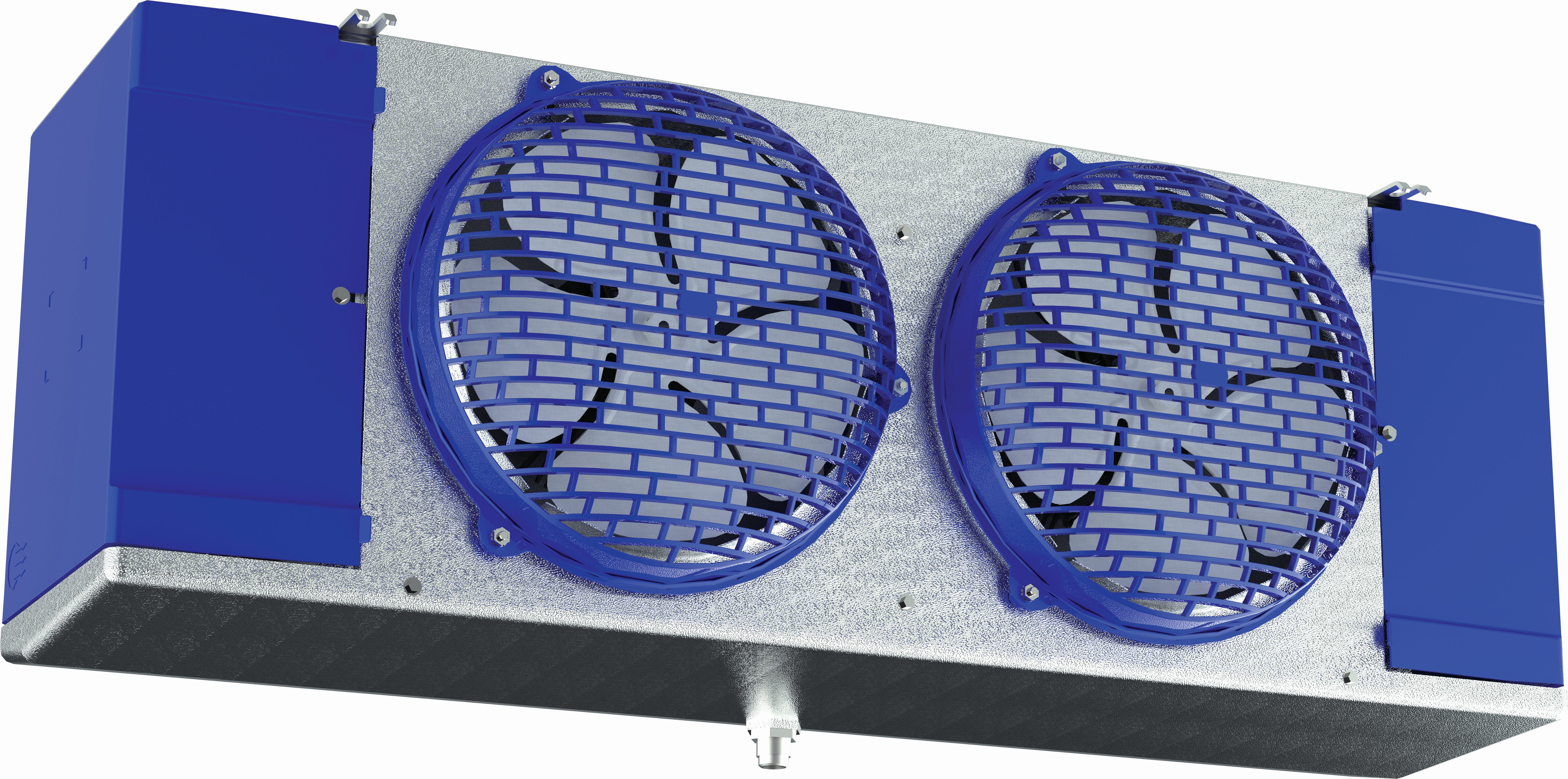

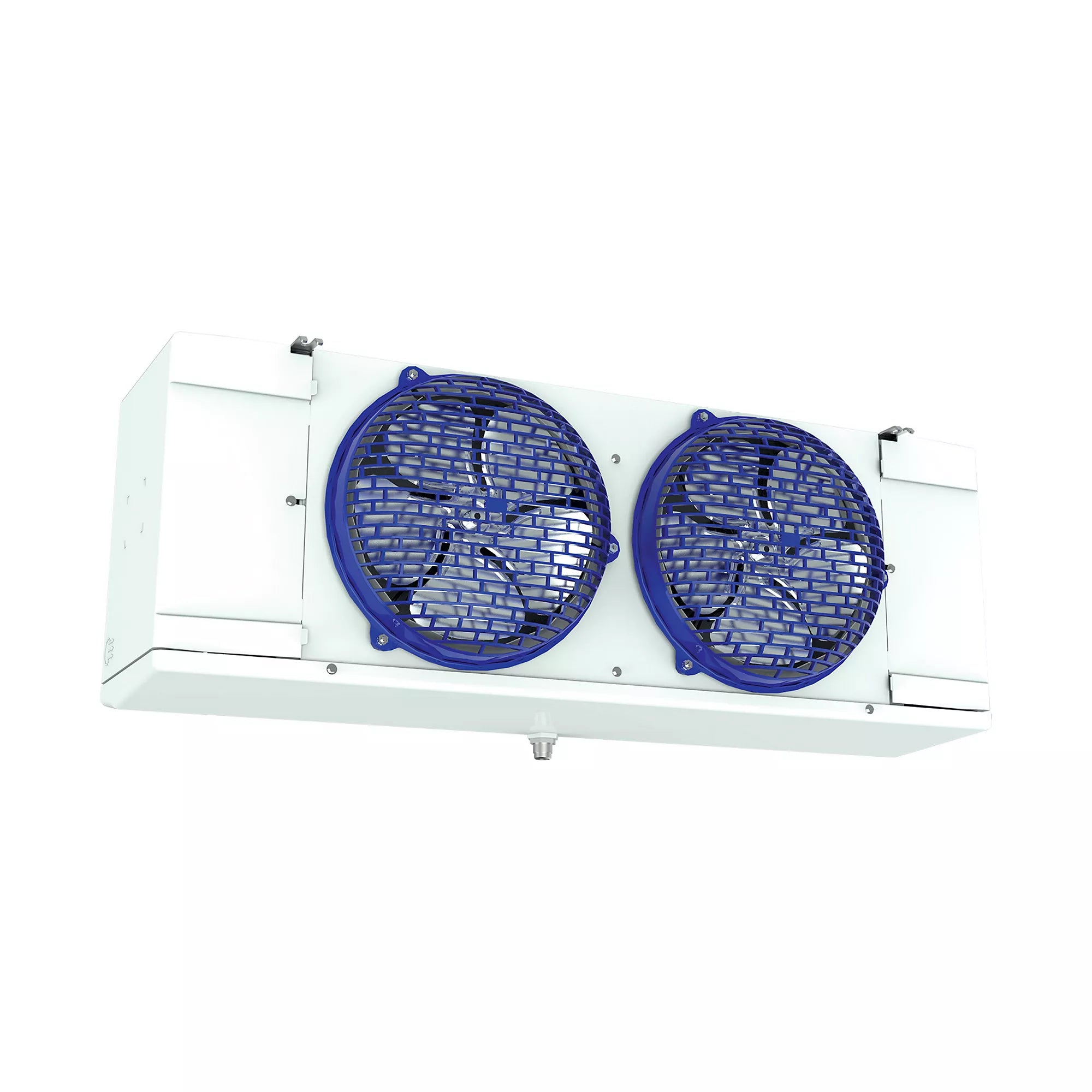

The Larkin LEL0095AS6AMAB0000 is a low profile unit cooler with a 9500 BTU capacity, designed for walk-in refrigeration applications. It features hinged, removable front access panels for easy access to electrical and refrigeration components. The unit comes standard with 2-Speed EC motors for air defrost models and a factory-installed liquid line solenoid wire harness.

• Cabinet design features hinged, removable front access panels.
• Molded fan guard and access panels are made of durable, NSF and UL Sanitation rated plastic.

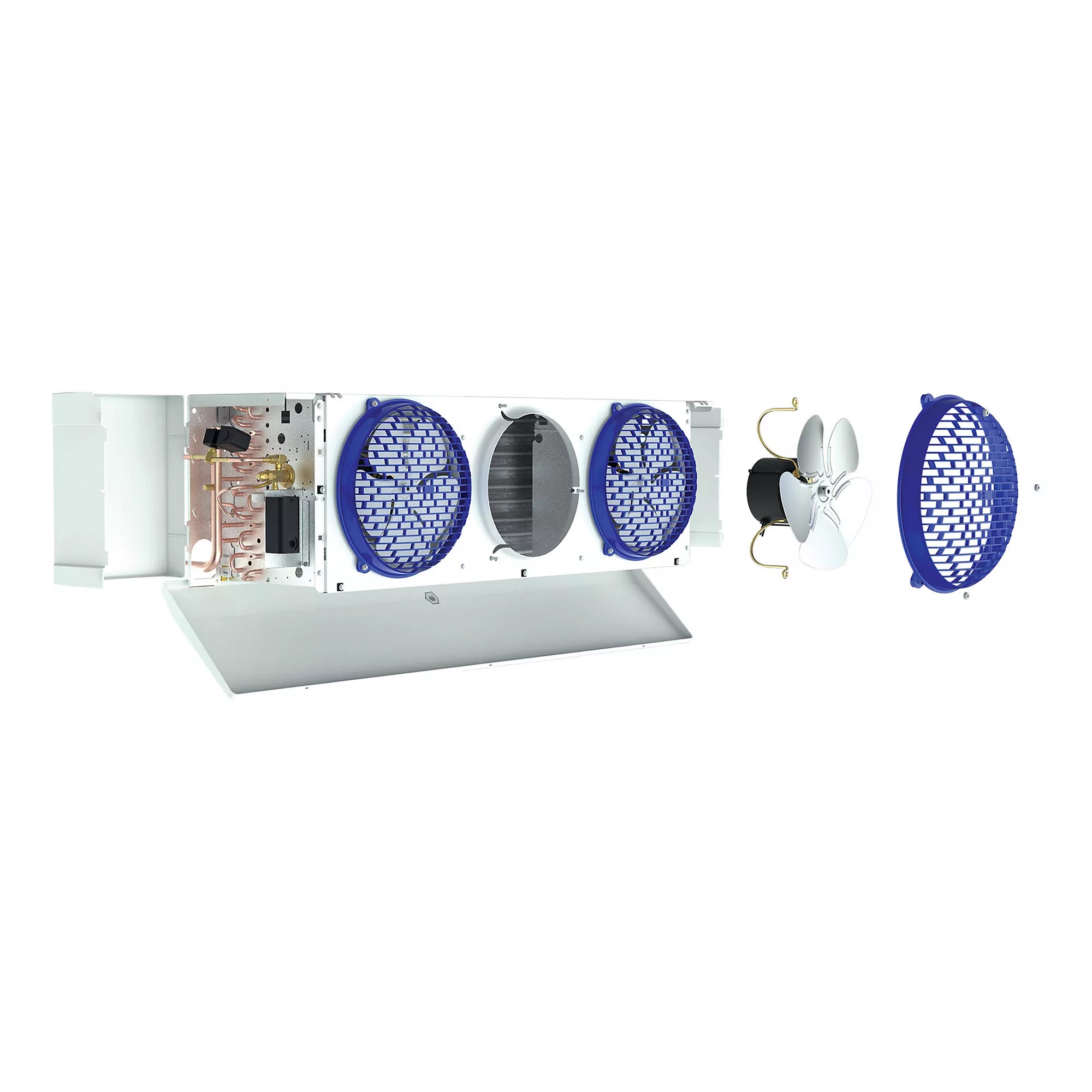

• Quick-removal fan guard/motor assembly for easier servicing.

Product Highlights

This low profile evaporator is ideal for walk-in coolers, offering efficient cooling and easy maintenance with its accessible design and durable construction.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0095AS6AMAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Unit Cooler Nominal BTU: 9500
• Voltage: 115 VAC
• Amps: 1.8
• Cycle/Hertz: 60 Hz
• Phase: Single
• Motor Type: ECM (Electronically Commutated Motor)
• Unit Cooler Type: Walk-In
• Unit Cooler Defrost Type: Air
• Unit Cooler Evaporator Style: Low Profile
• UL Listed: Yes
• ETL Listed: No
• Prop 65: Yes
• Minimum Circuit Ampacity (MCA): 2
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 5/8"
• Fins per Inch (FPI): 6
• Refrigerant: Various
• Country of Origin: USA
• Airflow Rating: 1425 CFM
• Number of Fans: 2
• Refrigerant Type: R-404A/R-448A/R-449A/R-407A/R-407F/R-407C
• Coil Inlet Outer Diameter: 1/2 Inch
• Suction Outer Diameter: 5/8 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain: 3/4 Inch Male Threaded
• Number of Circuits: 2
• Includes: Standard Base
• Approval: UL (Canada and US), NSF
• Cooling Capacity: 9500 BTU/Hour
• Current Rating: 2 Amp Minimum Circuit Ampacity (Air Defrost), 20 Amp Maximum Over Current Protection Device (Air Defrost), 1.8 Amp (Motor)
• Enclosure Material: Stainless Steel
• Power Rating: 110 Watt (Motor)
• Installation: Wall
