Larkin LEL0080BS6EEAB0200 evaporator low profile 8000 BTU

Product Description

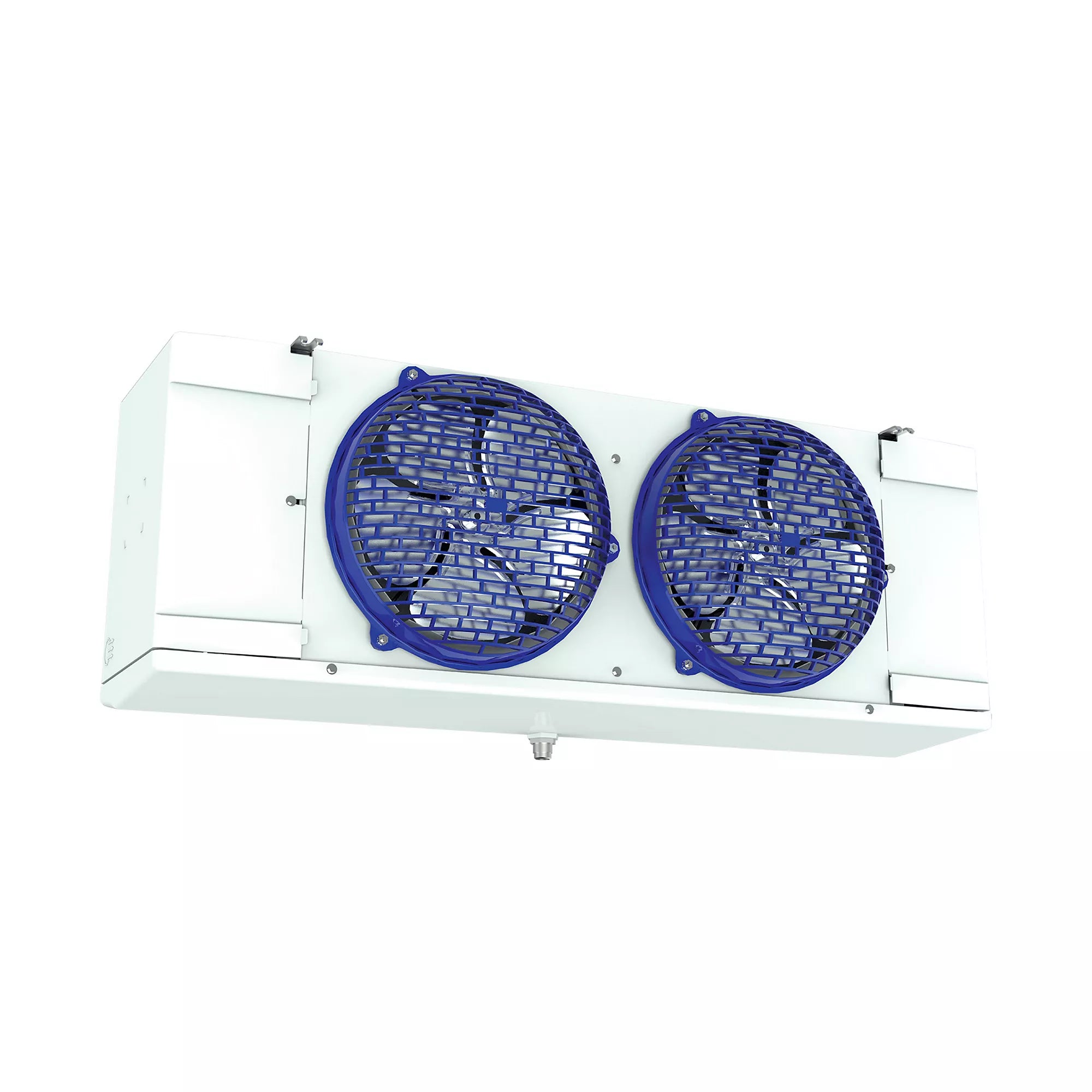

The Larkin LEL0080BS6EEAB0200 is a low profile unit cooler with a nominal BTU of 8000. Designed with hinged, removable front access panels for easy access to electrical and refrigeration components. Features a molded fan guard and access panels made of durable, lightweight plastic material. Suitable for walk-in coolers and other refrigeration applications.

• Cabinet design features hinged, removable front access panels
• Molded fan guard and access panels are made of NSF and UL Sanitation rated plastic

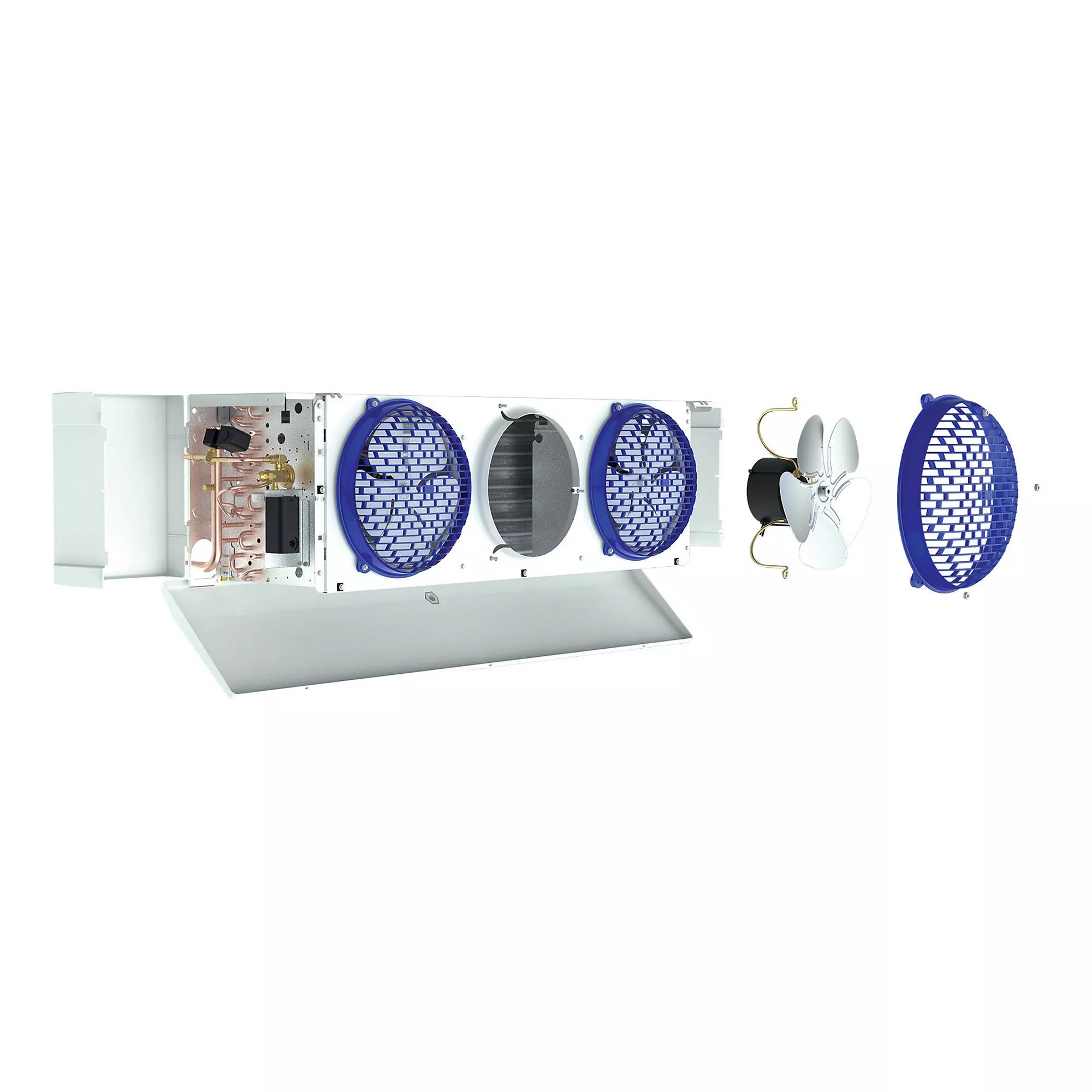

• Quick-removal fan guard/motor assembly for easier servicing

Product Highlights

This low profile unit cooler features a durable design and easy access panels for maintenance. Ideal for walk-in coolers.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0080BS6EEAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Manufacturer Part Number: LEL0080BS6EEAB0200
• Unit Cooler Nominal BTU: 8000
• Unit Cooler Evaporator Style: Low Profile
• Voltage: 230 VAC
• Amps: 1
• Cycle/Hertz: 60 Hz
• Phase: Single
• UL Listed: Yes
• ETL Listed: No
• Motor Type: ECM (Electronically Commutated Motor)
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Unit Cooler Type: Walk-In
• Minimum Circuit Ampacity (MCA): 1.1
• Fins per Inch: 6
• Number of Fans: 2
• Airflow Rating: 1371 CFM
• Cooling Capacity: 8000 BTU/Hour
• Installation: Wall
• Enclosure Material: Stainless Steel
• Power Rating: 118 Watt (Motor)
• Suction Line Size (OD): 5/8"
• Liquid Line Size (OD): 1/2"
• Drain Connection Size: 3/4"
• Refrigerant Type: R-404A/R-448A/R-449A/R-407A/R-407F/R-407C
• Coil Inlet Outer Diameter: 1/2 Inch
• Suction Outer Diameter: 5/8 Inch
• Equalizer Outer Diameter: 1/4 Inch
• Drain: 3/4 Inch Male Threaded
• Number of Circuits: 3
• Prop 65: Yes
• Width: 22.1
• Height: 21
• Length: 49.5
• Unit Cooler Defrost Type: Electric
