Larkin LEL0080BS6EEAB0000 Evaporator Low Profile 8000 BTU 208-230/1/60

Product Description

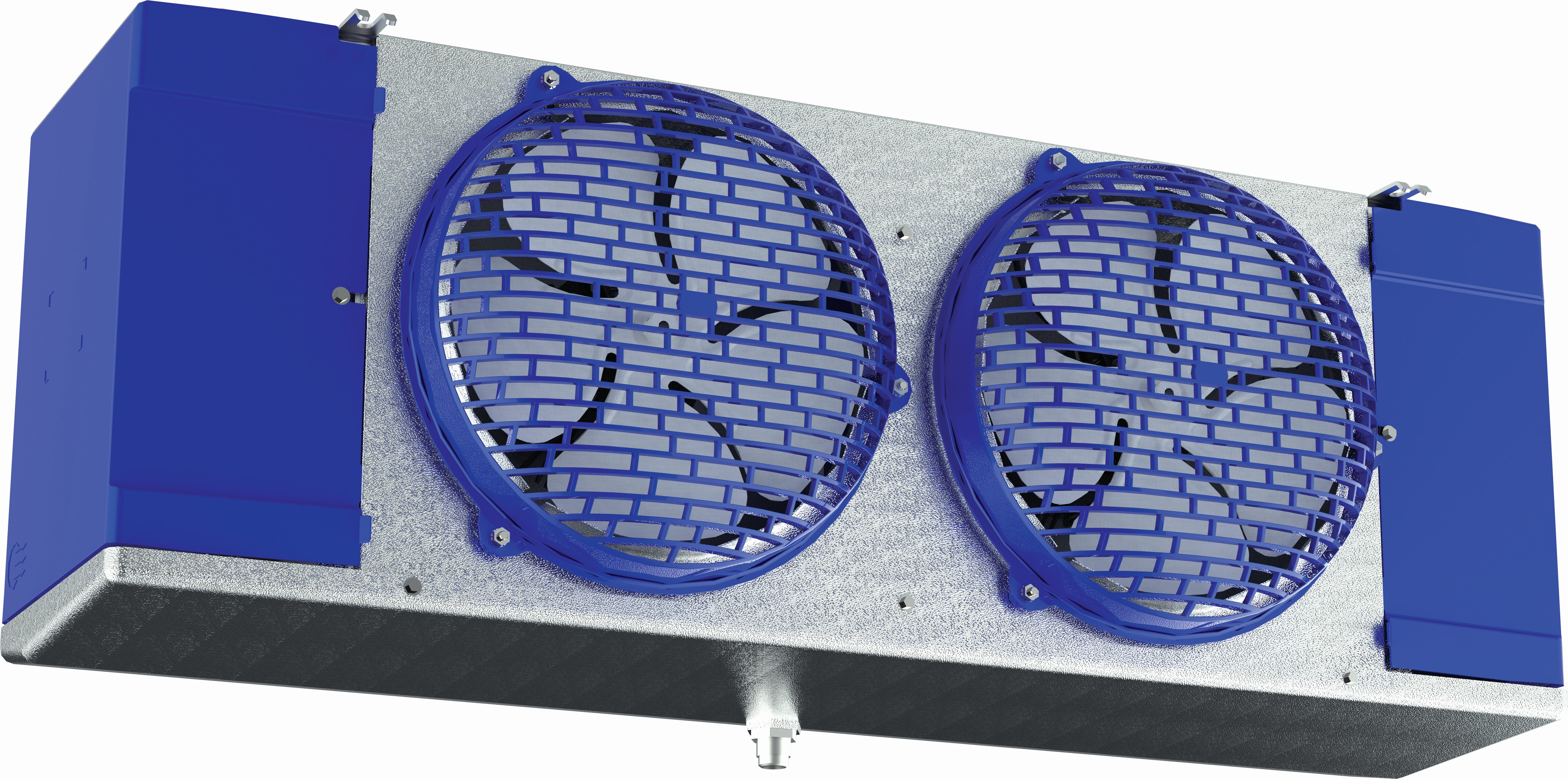

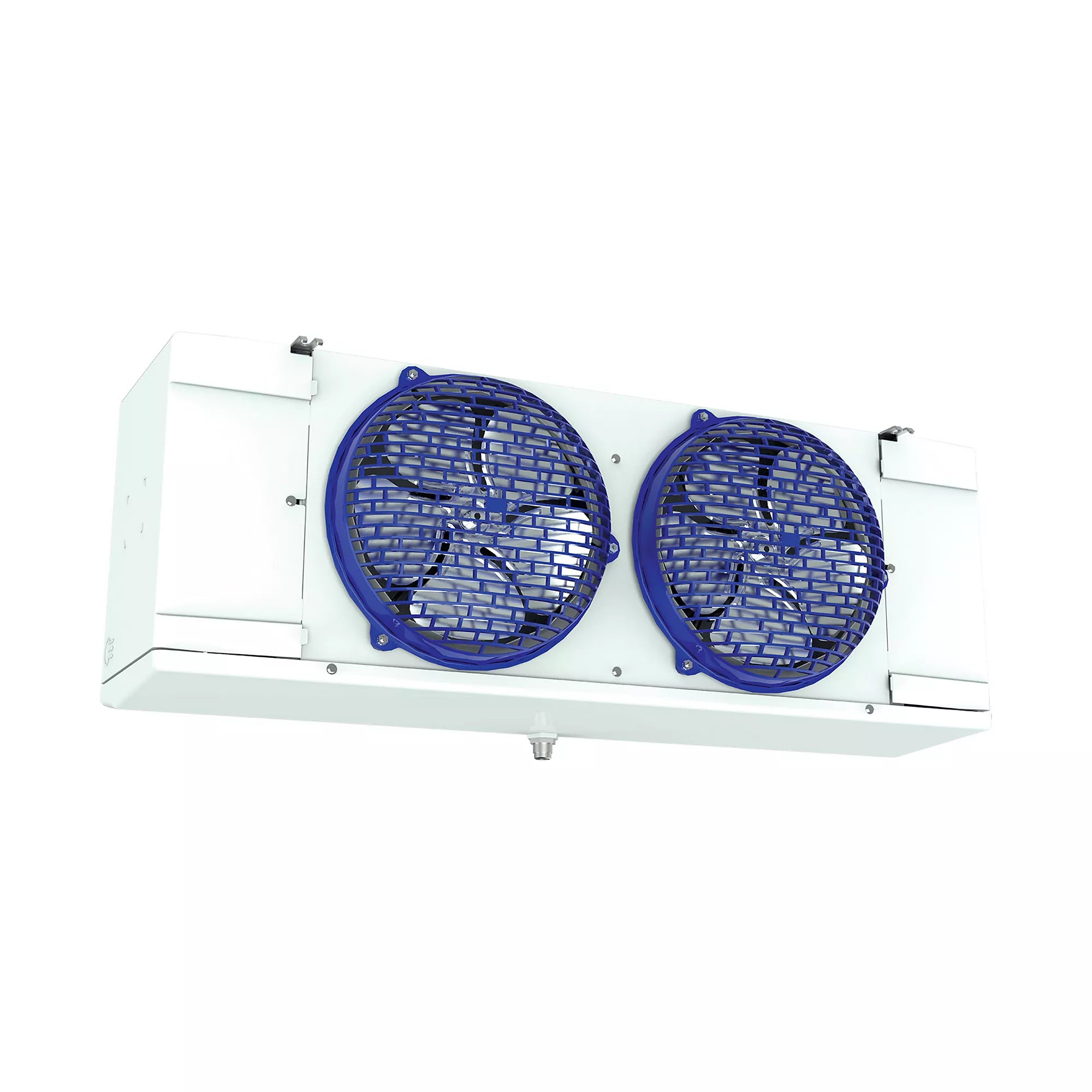

The Larkin LEL0080BS6EEAB0000 is a low profile evaporator with an 8000 BTU cooling capacity. Designed for walk-in coolers, it features hinged, removable front access panels for easy maintenance. The unit comes standard with aluminum fin, copper tube coils and a factory-installed liquid line solenoid wire harness. It operates on 230 VAC.

• Cabinet design features hinged, removable front access panels
• Molded fan guard and access panels are made of strong, durable, NSF and UL Sanitation rated lightweight and damage-resistant molded plastic material

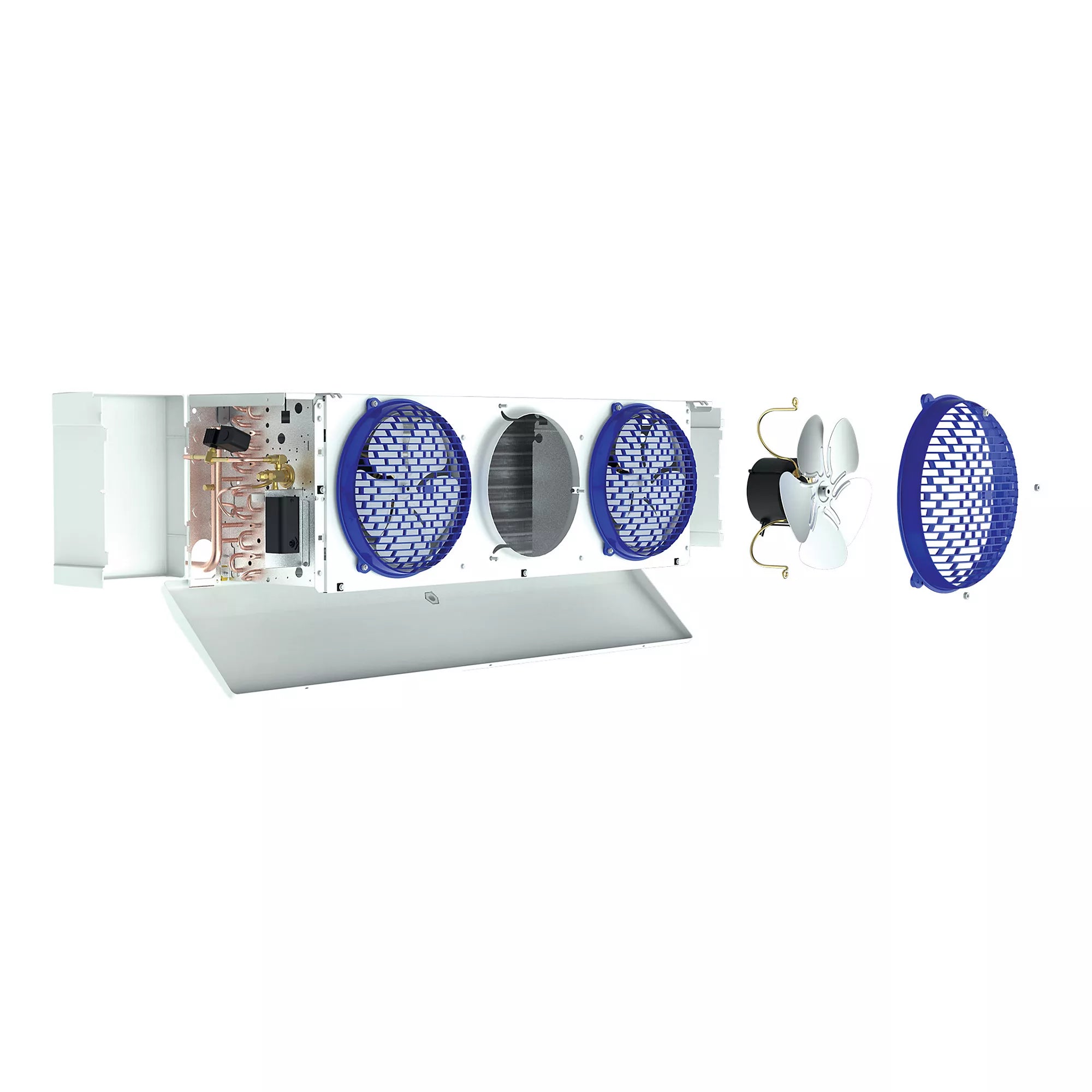

• Quick-removal fan guard/motor assembly for easier servicing of air mover parts

Product Highlights

This low profile evaporator is ideal for walk-in coolers, offering efficient cooling and easy maintenance with its accessible design and durable construction.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0080BS6EEAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• UL Listed: Yes
• Voltage: 230 VAC
• Amps: 1
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• ETL Listed: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 5/8"
• Unit Cooler Defrost Type: Electric
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 8000
• Unit Cooler Number of Fans: 2
• Unit Cooler Type: Walk-In
• Width: 22.1
• Minimum Circuit Ampacity (MCA): 1.1
• Country of Origin: USA
• Cooling Capacity: 8000 BTU/Hour
• Current Rating: 1.1 Amp Minimum Circuit Ampacity (Electric Defrost), 15 Amp Maximum Over Current Protection Device (Electric Defrost), 1 Amp (Motor)
• Enclosure Material: Stainless Steel
• Frequency Rating: 60 Hertz
• Installation: Wall
• Manufacturer Part Number: LEL0080BS6EEAB0000
• Power Rating: 118 Watt (Motor)
• Approval: UL (Canada and US), NSF
• CFM: 1371
• Connection Size Inlet (In.): 1/2
• Connection Suction (In.): 5/8
• Features: Standard Base
• Heater Amps: 1
• Heater Watts: 118
• Horsepower: 1/20
• Motor: ECM motor
• BTUH @ 20F: 7500
• Volts: 208-230
• AWEF: 4
• BtuH @ 10° TD: 7500
• BtuH @ 12° TD: 9000
• BtuH @ 15° TD: 11250
• Depth: 13.25
• Drain Conn.: 3/4"
• Inlet Conn.: 1/2" ODF
• No. of Fans: 2
• Suction Conn.: 5/8" ODF
