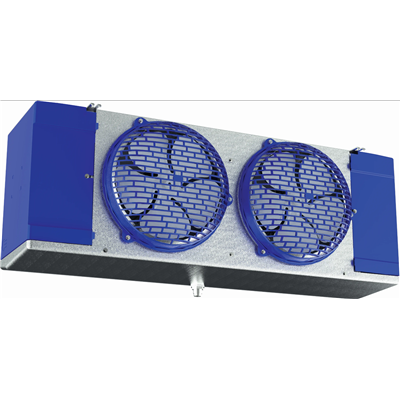

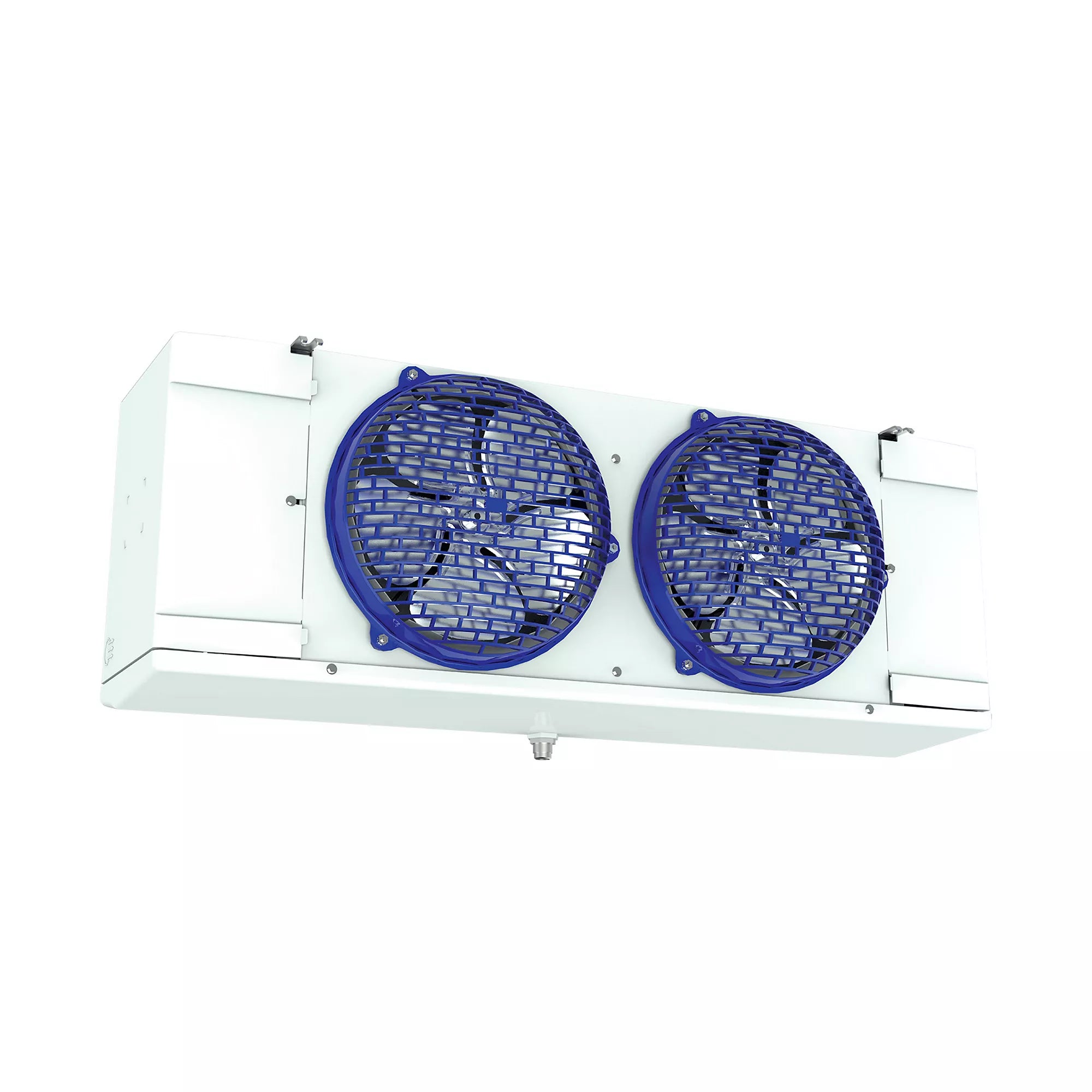

Larkin LEL0060AS6AMAB0200 Evaporator Low Profile 6000 BTU 115 VAC

Product Description

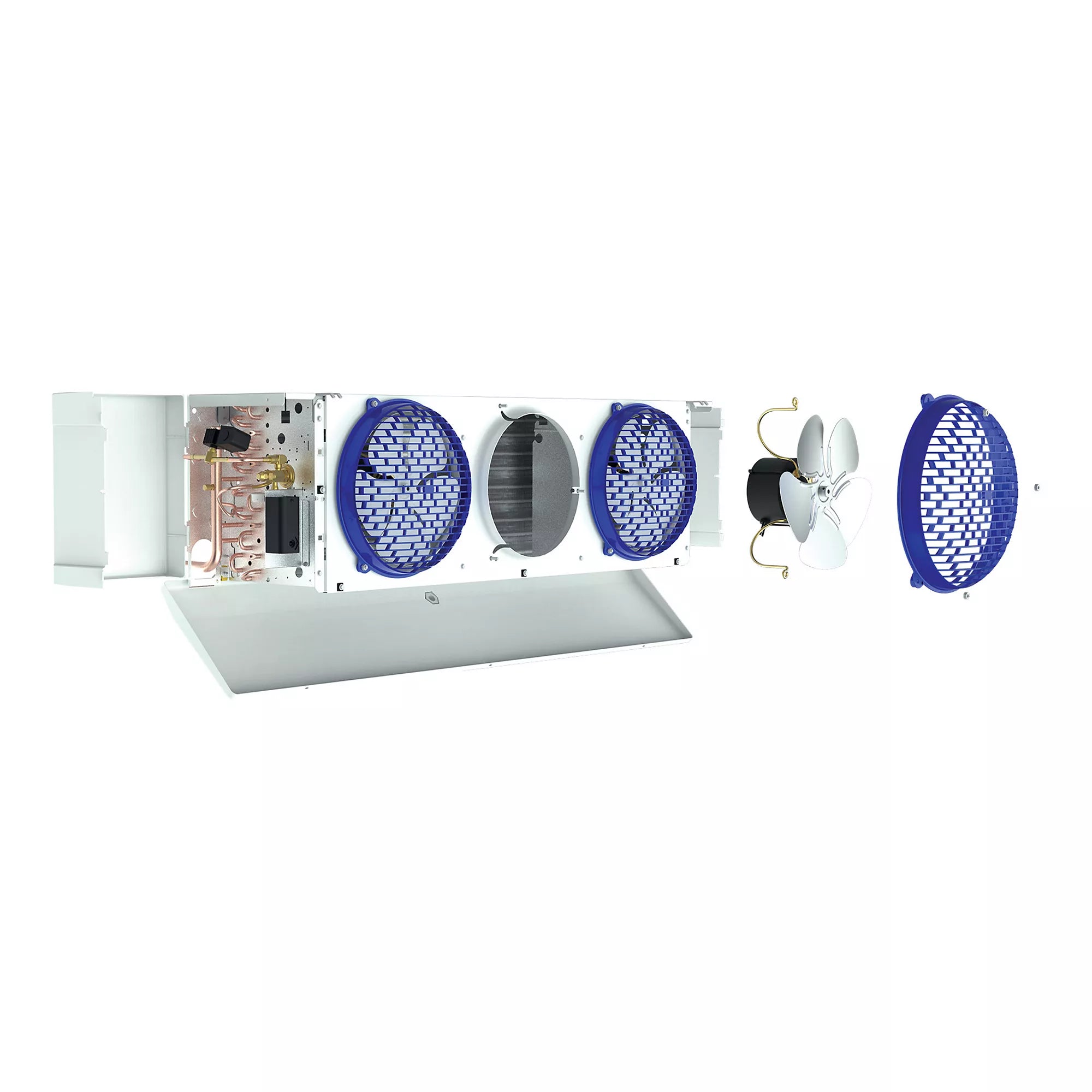

The LARKIN LEL0060AS6AMAB0200 is a low profile unit cooler featuring a hinged, removable front access panel for easy access to electrical and refrigeration components. The unit features a molded fan guard and access panels made of durable, lightweight, damage-resistant molded plastic material. Designed for walk-in coolers, it ensures efficient cooling with enhanced tubing and fin design.

• Features a 2-Speed EC motor standard on Air Defrost models
• Equipped with internally enhanced tubing and fin design for higher efficiency
• Includes a large diameter drain hole (3/4" ID) located towards the back of the unit

Product Highlights

This low profile evaporator is ideal for space-constrained environments, providing efficient cooling and easy maintenance.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0060AS6AMAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Unit Cooler Nominal BTU: 6000
• Voltage: 115 VAC
• Amps: 0.9
• Cycle/Hertz: 60 Hz
• Phase: Single
• UL Listed: Yes
• ETL Listed: No
• Motor Type: ECM (Electronically Commutated Motor)
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Unit Cooler Type: Walk-In
• Unit Cooler Defrost Type: Air
• Unit Cooler Number of Fans: 1
• Unit Cooler Evaporator Style: Low Profile
• Minimum Circuit Ampacity (MCA): 1.1
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 5/8"
• Fins per Inch (FPI): 6
• Prop 65: Yes
• Power Rating: 55 Watt (Motor)
• Airflow Rating: 653 CFM
• Number of Circuits: 2
• Installation: Wall
• Enclosure Material: Stainless Steel
• Approval: UL (Canada and US), NSF
• Configuration: Low Profile
• Horsepower: 1/20th
