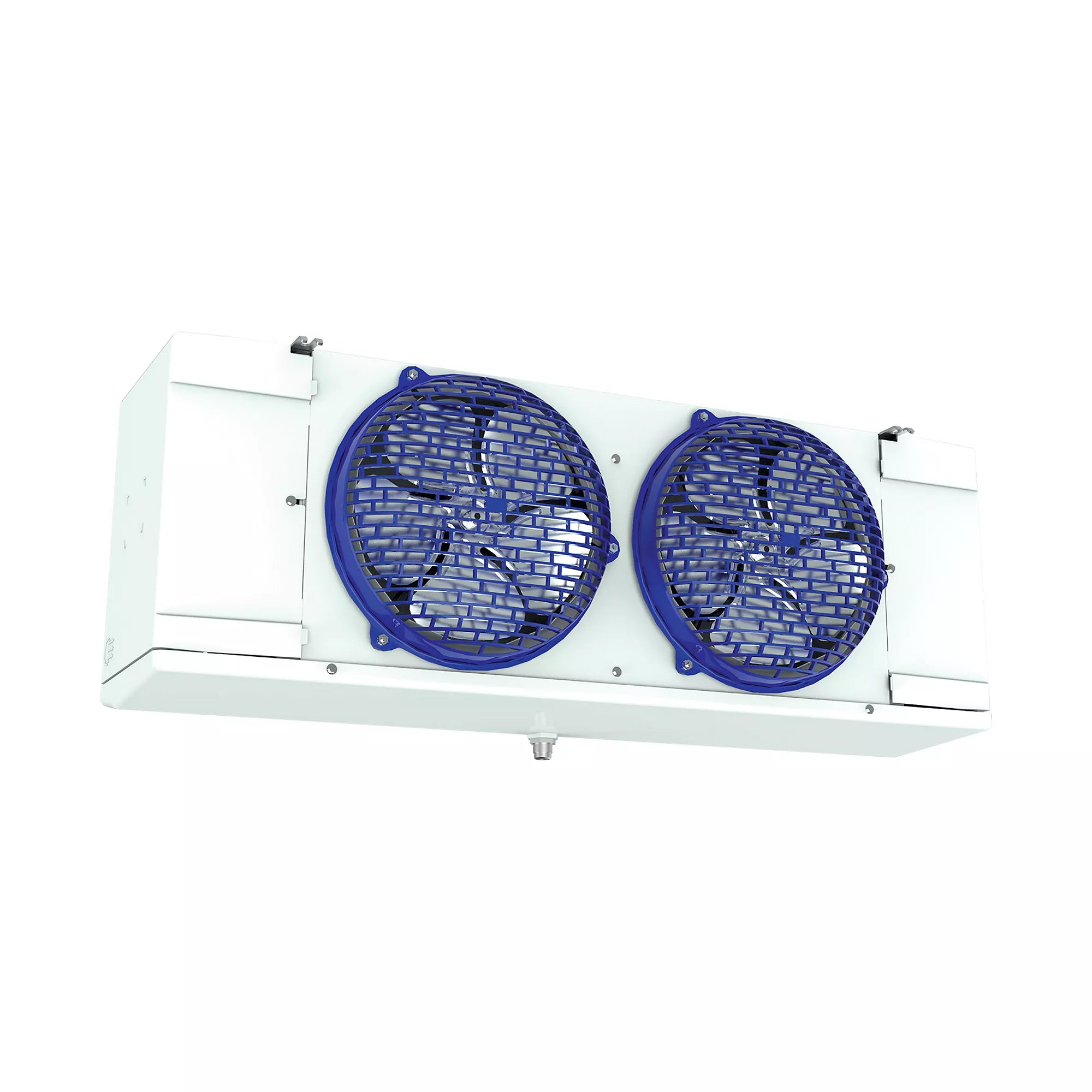

Larkin LEL0045BS6EEAB0200 Evaporator, Low Profile, 1-Speed EC, 4500 BTU, 208-230/1/60

Product Description

The Larkin LEL0045BS6EEAB0200 is a low profile unit cooler featuring a hinged, removable front access panel for easy access to electrical and refrigeration components. The unit features a molded fan guard and access panels made of durable, lightweight plastic. It utilizes internally enhanced tubing and fin design for higher efficiency.

• Cabinet design features hinged, removable front access panels.
• Molded fan guard and access panels are made of strong, durable, NSF and UL Sanitation rated lightweight and damage-resistant molded plastic material.

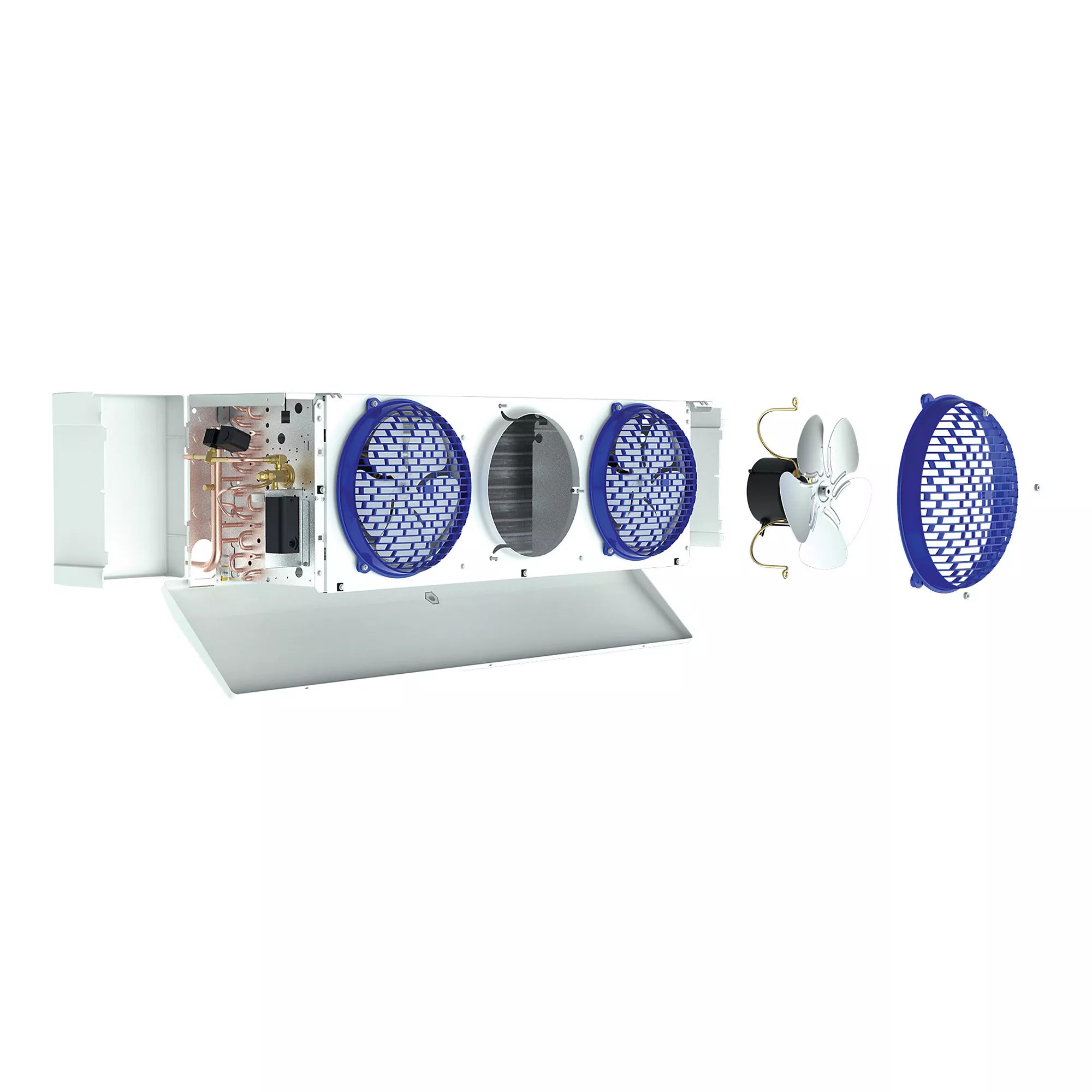

• Quick-removal fan guard/motor assembly for easier servicing of air mover parts.

Product Highlights

This low profile evaporator is designed for walk-in coolers and freezers. It features a single-speed EC motor, electric defrost, and is suitable for various refrigerants.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0045BS6EEAB0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Unit Cooler Type: Walk-In
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 4500
• Voltage: 230 VAC
• Phase: Single
• Cycle/Hertz: 60 Hz
• Amps: 0.5
• Motor Type: ECM (Electronically Commutated Motor)
• Unit Cooler Number of Fans: 1
• Unit Cooler Defrost Type: Electric
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Width: 22.1
• Height: 21
• Length: 31
• UL Listed: Yes
• ETL Listed: No
• Energy Star Rated: No
• Prop 65: Yes
• Fins per Inch (FPI): 6
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 5/8"
• Minimum Circuit Ampacity (MCA): 0.6
• Cooling Capacity: 4500 BTU/Hour
• Number of Phases: 1
• Power Rating: 55 Watt (Motor)
• Enclosure Material: Stainless Steel
• Frequency Rating: 60 Hertz
• Installation: Wall
