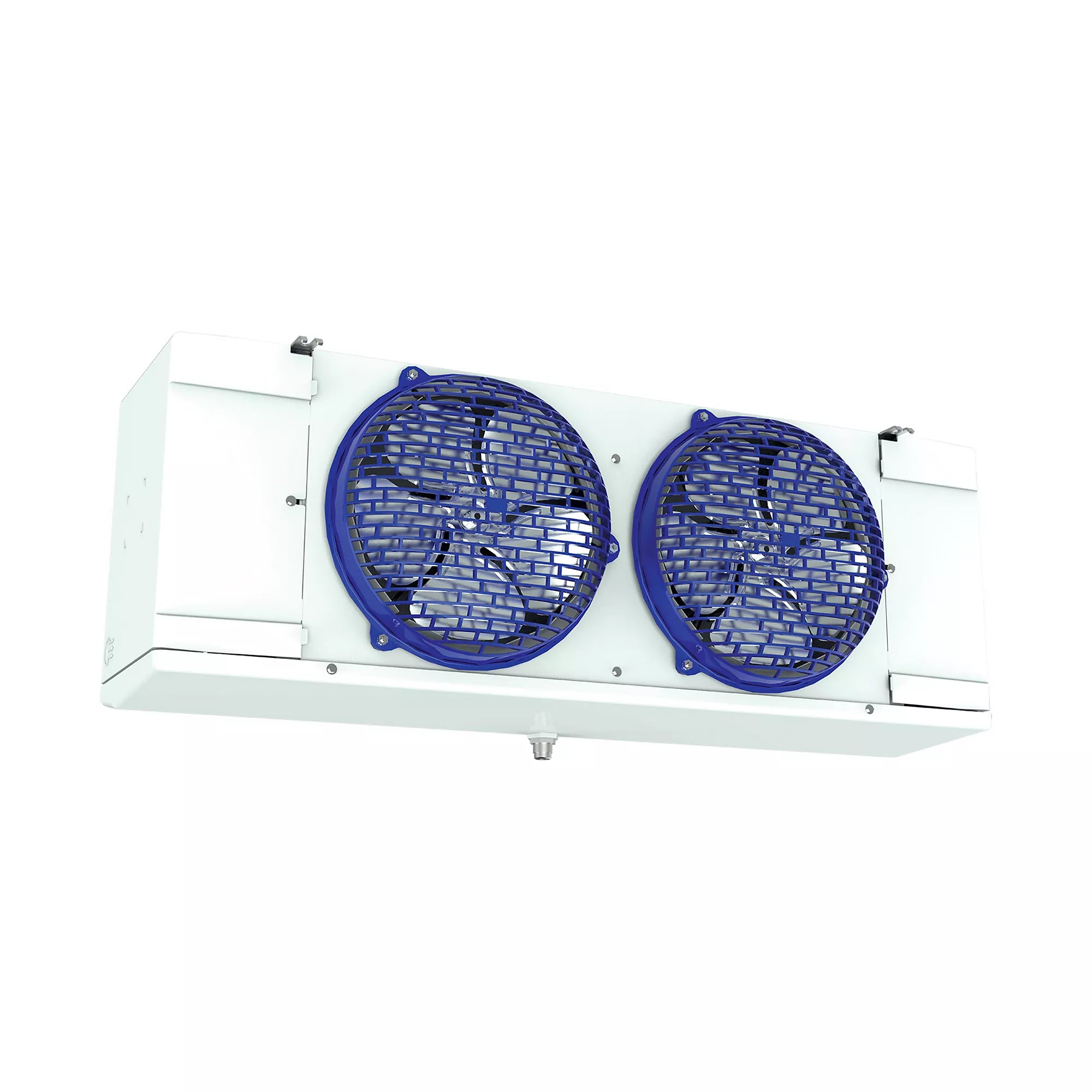

Larkin LEL0045BS6EEAB0000 Evaporator Low Profile 4500 BTU 208-230/1/60

Product Description

The Larkin LEL0045BS6EEAB0000 is a low profile unit cooler featuring a cabinet design with hinged, removable front access panels for easy access to electrical and refrigeration components. It operates at 230 VAC and is suitable for walk-in coolers. This unit cooler is designed for efficiency and easy servicing.

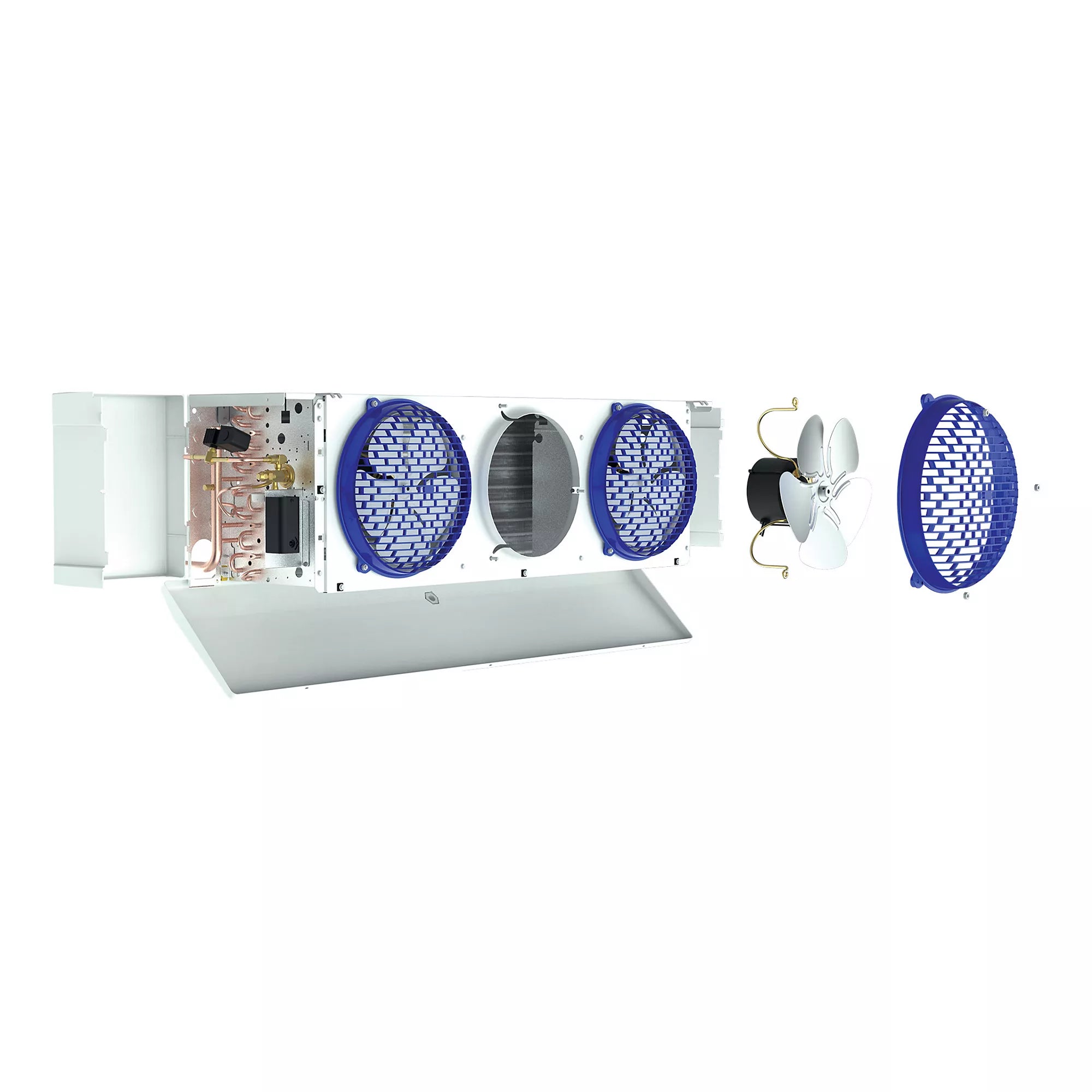

• Features hinged, removable front access panels.
• Molded fan guard and access panels are made of durable, NSF and UL Sanitation rated plastic.
• Quick-removal fan guard/motor assembly for easier servicing.

Product Highlights

This low profile unit cooler is designed for easy installation and maintenance in walk-in cooler applications.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0045BS6EEAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• UL Listed: Yes
• Input Voltage: 230 VAC
• Amps: 0.5
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: No
• Fins per Inch (FPI): 6
• Liquid Line Size (OD): 1/2"
• Motor Type: ECM (Electronically Commutated Motor)
• Phase: Single
• Prop 65: Yes
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 5/8"
• Unit Cooler Defrost Type: Electric
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Nominal BTU: 4500
• Unit Cooler Number of Fans: 1
• Unit Cooler Type: Walk-In
• Width: 22.1
• Minimum Circuit Ampacity (MCA): 0.6
• Country of Origin: USA
• Cooling Capacity: 4500 BTU/Hour
• Number Of Phases: 1
• Power Rating: 55 Watt (Motor)
• Airflow Rating: 641 CFM
• Number of Circuits: 2
• Connection Size Inlet (In.): 1/2
• Connection Suction (In.): 5/8
• Heater Amps: 0.5
• Heater Watts: 59
• Horsepower: 1/20
• AWEF: 3.96
• BtuH @ 10° TD: 4700
• BtuH @ 12° TD: 5640
• BtuH @ 15° TD: 7050
• Defrost: ELECTRIC
• Inlet Conn.: 1/2" ODF
• Suction Conn.: 5/8" ODF
• Drain Conn.: 3/4"
• Volts: 208-230
