Larkin LCH0035MBACZA0000 Condenser Unit 3.5 HP Medium Temp

Brand: LARKIN
SKU: LCH0035MBACZA0000
Availability: Out Of Stock
$7,479.85
$7,479.85
LTL Delivery

This product weighs 345 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Larkin LCH0035MBACZA0000 is a 3.5 HP condenser unit with a scroll compressor designed for medium temperature applications. This air-cooled outdoor unit operates on 208-230 VAC at 60 Hz. It features a painted steel cabinet for corrosion protection and a heavy-duty steel base.

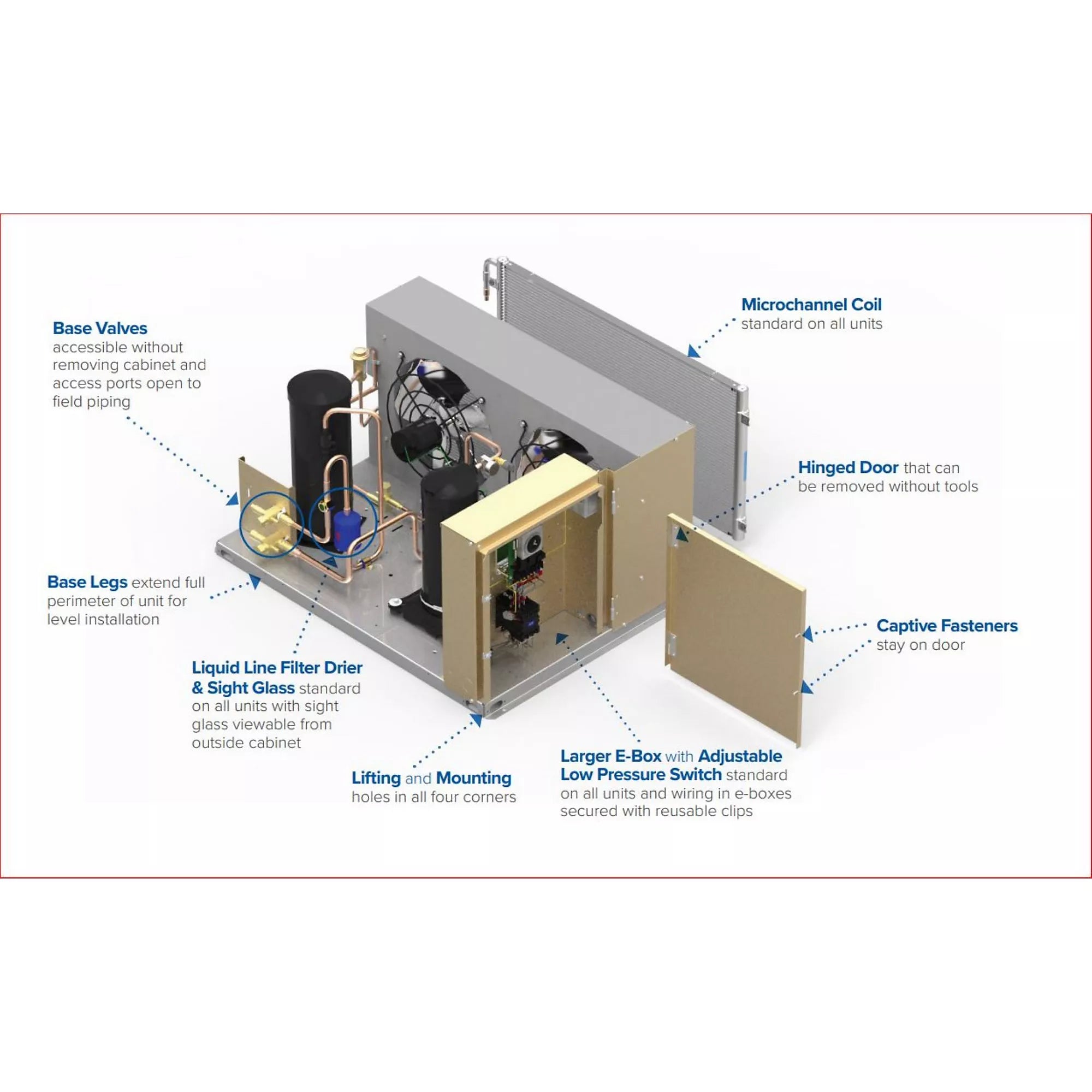

  • Utilizes microchannel coil technology.
  • Features a scroll compressor for efficient operation.
  • Designed for outdoor installation.

Product Highlights

The LARKIN LCH0035MBACZA0000 condenser unit is suitable for refrigeration applications requiring medium temperatures, offering robust construction and reliable performance.

Product Information

Standard Information

  • Brand: LARKIN
  • Manufacturer Part Number: LCH0035MBACZA0000
  • Country of Origin: USA
Technical Specifications
Application Temperature
Medium Temperature
Brand
Larkin
Compressor HP
3 1/2 HP
Condenser Location
Outdoor
Condenser Motor Type
PSC (Permanent Split Capacitor)
Condenser Type
Air-Cooled
Cycle/Hertz
60 Hz
Energy Star Rated
No
Full Load Amps
3.5
Liquid Line Size (OD)
1/2"
Phase
Single
Prop 65
Yes
Rated Load Amps (RLA)
21.2
Refrigerant
R-404A; R-407A; R-407C; R-448A; R-449A
Suction Line Size (OD)
7/8"
Type
Cooler - Outdoor
Voltage
208-230 VAC
Minimum Circuit Ampacity (MCA)
29.9
Compressor Type
Scroll
Country of Origin
USA
Cooling Capacity
35160 BTU/Hour
Current Rating
21.2 Amp Rated Load (Compressor), 104 Amp Locked Rotor (Compressor), 3.5 Amp Full Load (Condenser), 29.9 Amp Minimum Circuit Ampacity (Air Defrost), 50 Amp Maximum Over Current Protection Device (Air Defrost), 39.9 Amp Minimum Circuit Ampacity (Electric Defrost), 60 Amp Maximum Over Current Protection Device (Electric Defrost), 10 Amp (Evaporator Fan), 30 Amp (Defrost Heater)
Enclosure Material
Steel
Operating Temperature
95 Deg F (Ambient), 25 Deg F (Suction)
Power Rating
3 HP
Approval
UL (Canada and US)
Refrigerant Type
R-404A/R-507A/R-407A/R-407C/R-448A/R-449A
Condenser Coil Type
Microchannel Coil
Liquid Inner Diameter
1/2 Inch
Suction Inner Diameter
7/8 Inch
