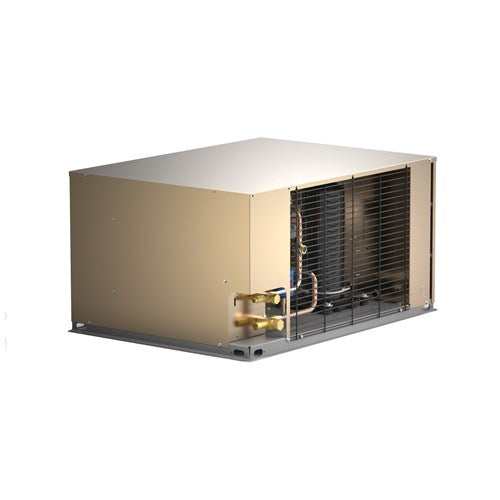

Larkin LCH0025LBACHA0200 Condenser Unit 2.5 HP

Product Description

The Larkin LCH0025LBACHA0200 is a 2.5 HP condenser unit with a hermetic compressor designed for outdoor freezer applications. It operates on 208-230 VAC at 60 Hz. Features include a timer and compatibility with R-404A refrigerant. The unit is constructed with painted steel cabinets for corrosion protection and a heavy-duty steel base.

• Designed for outdoor freezer applications.
• Utilizes a hermetic compressor.
• Features painted steel cabinets for corrosion protection.

Product Highlights

This Larkin condenser unit is ideal for low-temperature refrigeration, offering robust construction and reliable performance.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LCH0025LBACHA0200
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Condenser Location: Outdoor
• Condenser Motor HP: 2 1/2 HP
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Condenser Type: Air-Cooled
• Cycle/Hertz: 60 Hz
• Energy Star Rated: No
• Liquid Line Size (OD): 1/2\"
• Phase: Single
• Prop 65: Yes
• Rated Load Amps (RLA): 15
• Refrigerant: R-404A
• Suction Line Size (OD): 7/8\"
• Type: Freezer - Outdoor
• UL Listed: No
• Voltage: 208-230 VAC
• Minimum Circuit Ampacity (MCA): 20
• Compressor Type: Hermetic
• Country of Origin: USA
• Cooling Capacity: 9260 BTU/Hour
• Current Rating: 15 Amp Rated Load (Compressor), 87 Amp Locked Rotor (Compressor), 1 Amp Full Load (Condenser), 20 Amp Minimum Circuit Ampacity (Air Defrost), 30 Amp Maximum Over Current Protection Device (Air Defrost), 37.5 Amp Minimum Circuit Ampacity (Electric Defrost), 40 Amp Maximum Over Current Protection Device (Electric Defrost), 10 Amp (Evaporator Fan), 30 Amp (Defrost Heater)
• Enclosure Material: Steel
• Operating Temperature: -20 Deg F (Suction), 95 Deg F (Ambience)
• Power Rating: 2 HP
• Refrigerant Type: R-404A/R-507A/R-407A/R-407C/R-448A/R-449A
• Condenser Coil Type: Microchannel Coil
• Liquid Inner Diameter: 1/2 Inch
• Suction Inner Diameter: 7/8 Inch
• Temperature: Low Temperature
• Configuration: Outdoor Horizontal
• Electrical Data: 208-230/1/60
