Larkin LCH0015MCACHA0000 Condensing Unit, Hermetic Compressor, 208-230/3/60 Medium Temp

Product Description

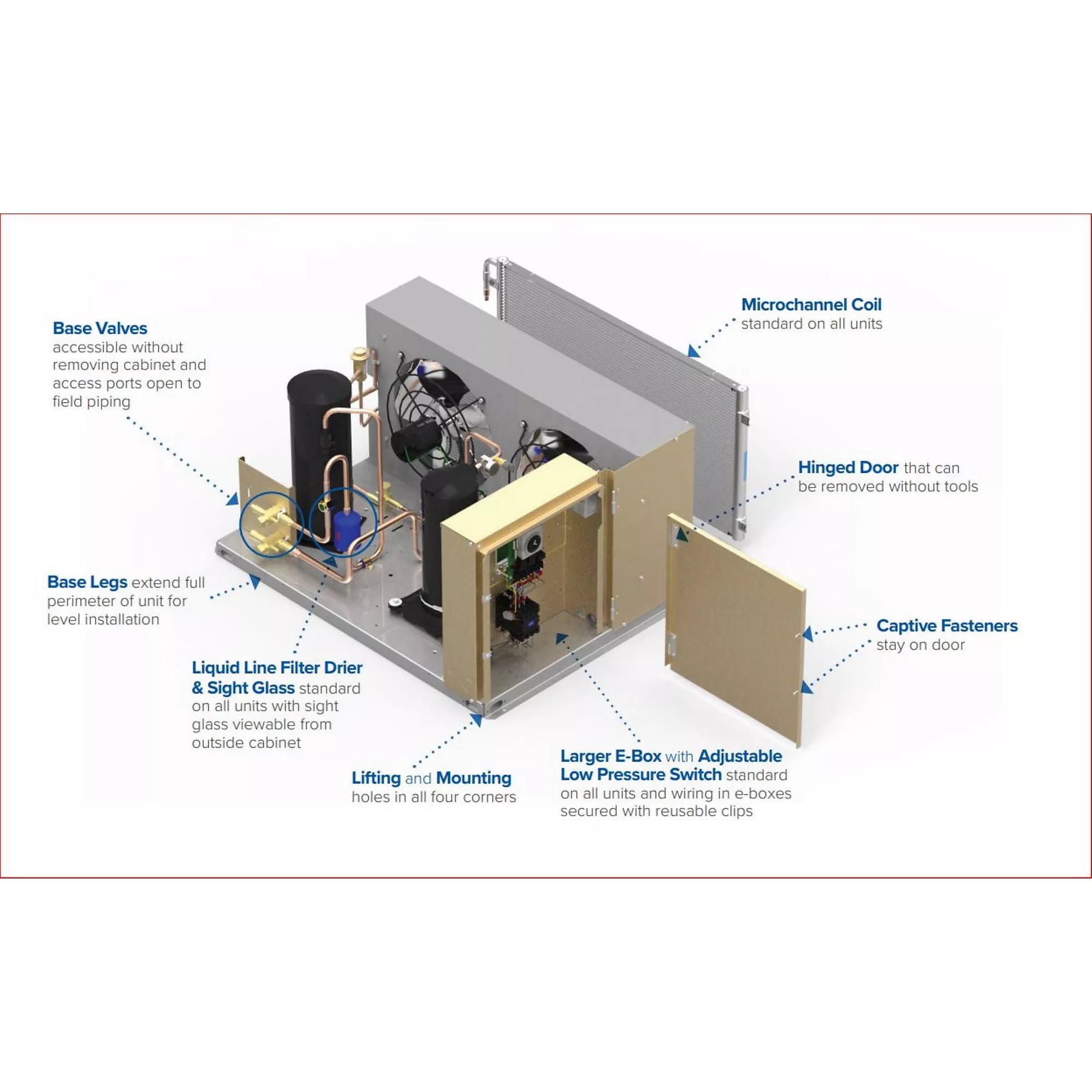

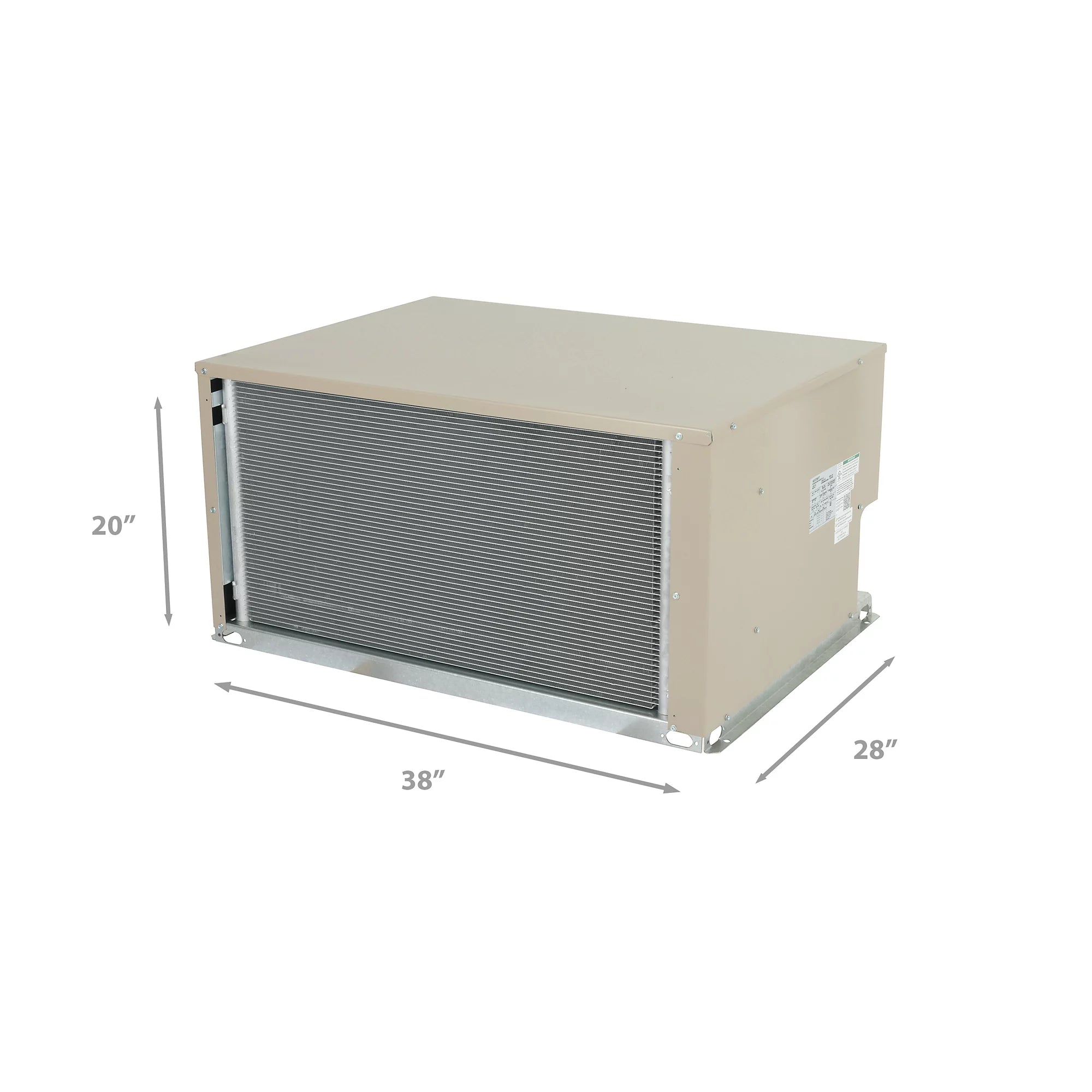

The Larkin LCH0015MCACHA0000 is a 1.5 HP condensing unit with a hermetic reciprocating compressor designed for medium temperature applications. It operates on 208-230 VAC, 60 Hz, three-phase power. This air-cooled unit is designed for outdoor use and features a painted steel cabinet for corrosion protection.

• Features a microchannel coil for efficient heat transfer.
• Equipped with encapsulated, auto-reset, high and low pressure controls.
• Constructed with prefabricated wiring harnesses for reliable connections.

Product Highlights

This Larkin condensing unit is suitable for refrigeration applications requiring medium temperatures and reliable performance.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LCH0015MCACHA0000
• Country of Origin: USA

Technical Specifications

• Application Temperature: Medium Temperature
• Brand: Larkin
• Compressor HP: 1 1/2 HP
• Condenser Location: Outdoor
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Condenser Type: Air-Cooled
• Cycle/Hertz: 60 Hz
• Energy Star Rated: No
• Liquid Line Size (OD): 1/2\"
• Phase: Three
• Prop 65: Yes
• Rated Load Amps (RLA): 7.2
• Refrigerant: R-404A; R-407A; R-448A; R-449A
• Suction Line Size (OD): 7/8\"
• Type: Cooler - Outdoor
• UL Listed: No
• Voltage: 208-230 VAC
• Minimum Circuit Ampacity (MCA): 15
• Compressor Type: Reciprocating
• Country of Origin: USA
• UL Recognized: No
• Cooling Capacity: 14730 BTU/Hour
• Current Rating: 7.2 Amp Rated Load (Compressor), 51 Amp Locked Rotor (Compressor), 1 Amp Full Load (Condenser), 15 Amp Minimum Circuit Ampacity (Air Defrost), 15 Amp Maximum Over Current Protection Device (Air Defrost), 28.8 Amp Minimum Circuit Ampacity (Electric Defrost), 30 Amp Maximum Over Current Protection Device (Electric Defrost), 9 Amp (Evaporator Fan), 23 Amp (Defrost Heater)
• Voltage Rating: 208 to 230 Volt AC
• Frequency Rating: 60 Hertz
• Number Of Phases: 3
• Power Rating: 1 HP
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (Suction)
• Enclosure Material: Steel
• Manufacturer Name: Larkin
• Additional Information: Compressor Type Hermetic; Refrigerant Type R-404A/R-507A/R-407A/R-407C/R-448A/R-449A; Condenser Coil Type Microchannel Coil; Liquid Inner Diameter 1/2 Inch; Suction Inner Diameter 7/8 Inch; Includes Standard Base
• Manufacturer Part Number: LCH0015MCACHA0000
• Approval: UL (Canada and US)
• Series/Model: MCACH
• Horsepower: 1-1/2 HP
