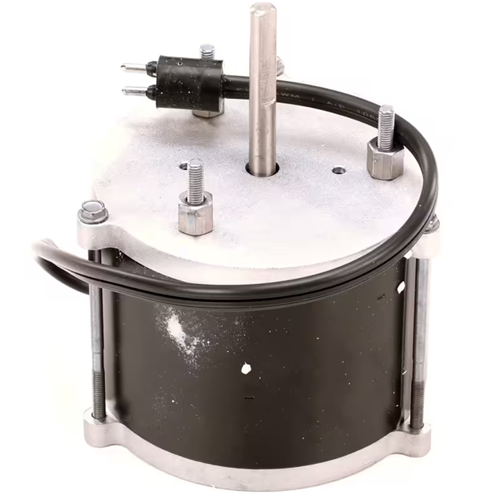

Larkin 25317901s Oem Condenser Fan Motor 1/15 Hp 208-230V 1625 Rpm Cw Bohn Replacement

Product Description

The Larkin 25317901s is an OEM replacement condenser fan motor designed for use in Bohn refrigeration and HVAC equipment. This motor is built to meet the original equipment specifications, making it a direct drop-in replacement for systems that require a reliable, factory-matched part. HVAC and refrigeration technicians rely on motors like the 25317901s to restore equipment performance without the guesswork of cross-referencing aftermarket alternatives. The motor is rated at 1/15 horsepower and operates on 208 to 230 volt single-phase power, making it compatible with standard commercial refrigeration voltage supplies. It runs at 1625 RPM and features a clockwise rotation, which is a critical specification when replacing condenser fan motors to ensure proper airflow direction across the coil. The shaft diameter is 5/16 inches, a common size used in condenser fan blade hubs in refrigeration display cases, walk-in coolers, and reach-in units. Condenser fan motors play a vital role in any refrigeration or air conditioning system. They drive the fan blade that pulls or pushes air across the condenser coil, allowing heat to be rejected from the refrigerant. When a condenser fan motor fails, the system loses the ability to reject heat efficiently, leading to high head pressure, compressor overload, and eventual system shutdown. Replacing a failed motor with the correct OEM part like the Larkin 25317901s ensures the system returns to designed performance levels. This motor is an essential service part for commercial refrigeration technicians, HVAC service companies, and facilities maintenance teams working on Bohn brand equipment. Keeping this part on hand reduces system downtime and simplifies service calls.

• OEM replacement motor matched to Bohn refrigeration and HVAC equipment specifications
• Clockwise rotation with a 5/16 inches shaft for direct compatibility with original fan blade assemblies
• Rated 1/15 HP at 208-230V and 1625 RPM for reliable condenser fan performance

Product Highlights

The Larkin 25317901s delivers a factory-spec replacement for Bohn condenser fan applications, combining correct voltage, rotation, and shaft size in a single OEM part. It is the straightforward choice for technicians restoring refrigeration system performance quickly and accurately.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: 25317901s

Technical Specifications

• Horsepower: 1/15 HP
• Voltage: 208-230V
• Speed: 1625 RPM
• Rotation: Clockwise (CW)
• Shaft Diameter: 5/16 inches
• Application: Condenser Fan Motor
• Compatible Brand: Bohn
