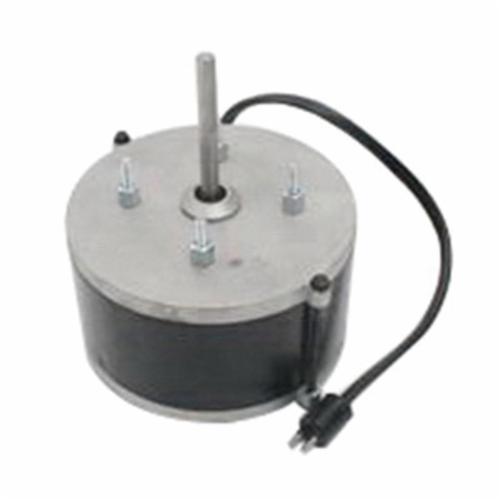

LARKIN 25317701S ECM Motor 208-230 VAC 1/15 HP

Product Description

The LARKIN 25317701S is an electronically commutated motor (ECM) suitable for refrigeration systems. This motor functions on 208 to 230 volts alternating current and provides a power output of 1/15 HP. With a speed rating of 1625 RPM, it is efficient for continuous operations. The product has a shaft diameter of five sixteenths of an inch, making it compatible with various applications that require precision and reliability.

• Power: 1/15 HP
• Speed: 1625 RPM
• Shaft Diameter: 5/16 inch

Product Highlights

The LARKIN 25317701S ECM Motor is designed for durability and efficient performance in refrigeration equipment.

Product Information

Standard Information

• Brand: LARKIN
• Motor Type: Electronically Commutated Motor (ECM)

Technical Specifications

• MPN: 25317701S
• Voltage: 208-230 VAC
• Phase: Single
• Frequency Rating: 60 Hz
• Speed Rating: 1625 RPM
• Rotation: Counter Clockwise (CCW)
• Shaft Diameter: 5/16 inch
• Duty: Continuous Running Duty
• Insulation Class: B
