LARKIN 25309801S Evaporator Fan Motor 1/15 HP

Product Description

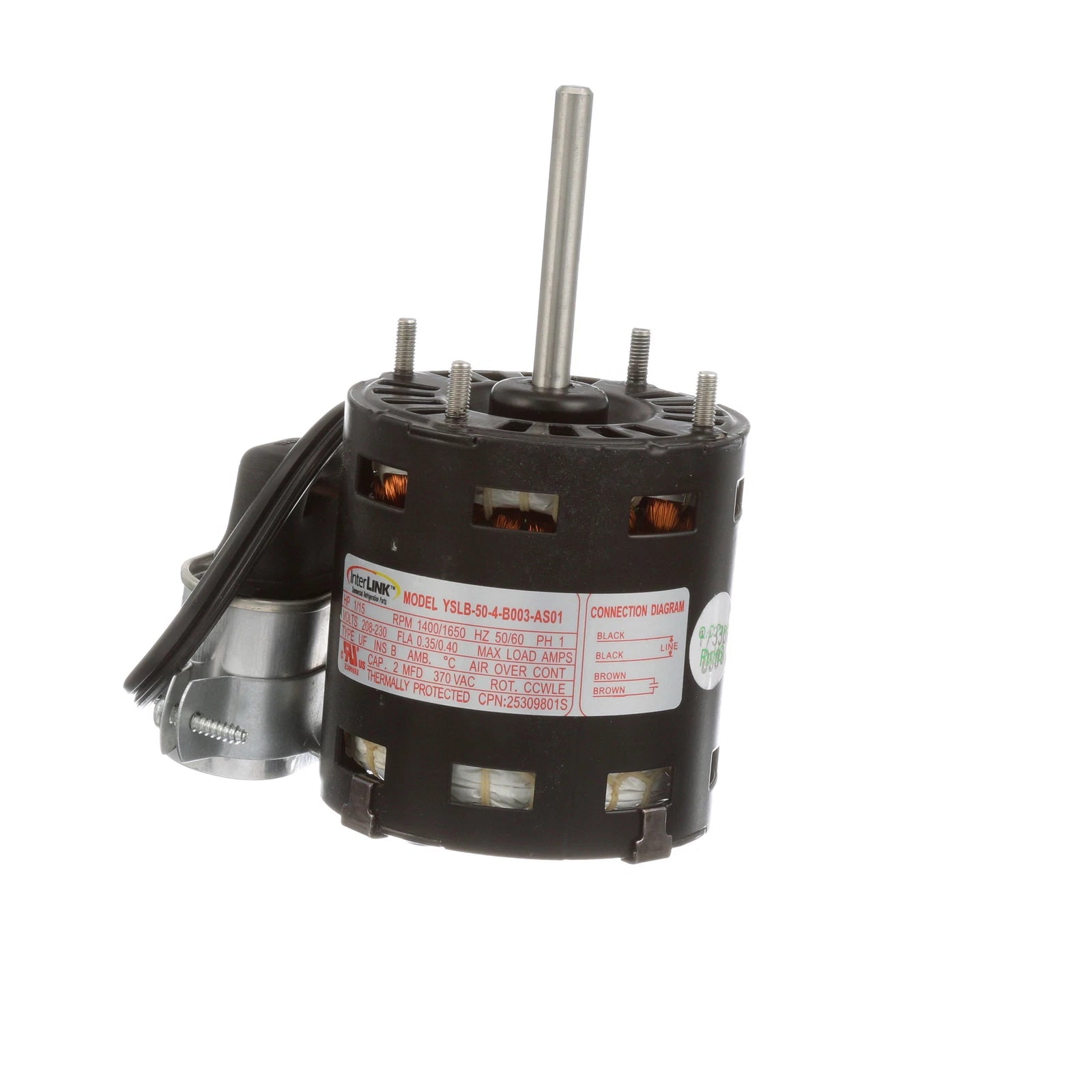

The LARKIN 25309801S is an OEM evaporator fan motor suitable for refrigeration. This PSC motor functions on 208-230 volts AC and operates at 50/60 Hz. With a power output of 1/15 horsepower and a speed of 1650 RPM, it rotates clockwise when viewing from the shaft end. It has a shaft diameter of five sixteenths inches and is designed for continuous running.

• 1/15 horsepower for refrigeration use
• Compatible with 208-230 volts AC
• Operates at 1650 RPM in a clockwise direction

Product Highlights

This motor is designed for reliable performance in air conditioning systems, ensuring optimal airflow and efficiency in cooling applications.

Product Information

Standard Information

• Brand: LARKIN
• MPN: 25309801S

Technical Specifications

• Motor HP: 1/15 HP
• Input Voltage: 208-230 VAC
• Frequency: 50/60 Hz
• Phase: Single
• RPM: 1650
• Rotation: Clockwise
• Shaft Diameter: 0.3125 inches
• Motor Type: PSC
• Duty: Continuous Running Duty
• Insulation Class: B
• Service Factor: 1
• Number of Speeds: 1
• Color: Black
