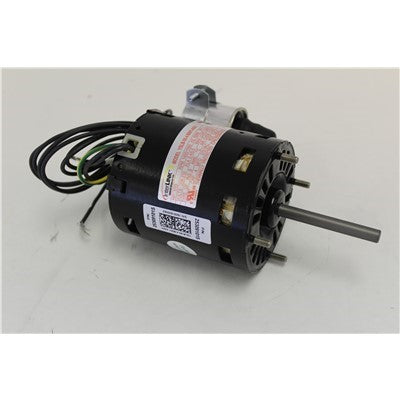

Larkin 25309101S OEM Refrigeration Motor 1/15 HP CCWSE

Product Description

The Larkin 25309101S is an OEM refrigeration motor that operates efficiently for refrigeration systems. This single-phase motor runs on 208-230 VAC and delivers a power output of 1/15 HP. It features a shaft diameter of five sixteenths of an inch and is designed for counter-clockwise shaft end rotation (CCWSE). This motor is built for continuous operation and maintains a consistent speed of 1800 RPM.

• Power: 1/15 HP
• Rotation: Counter-Clockwise (CCWSE)
• Shaft Diameter: 5/16 inch

Product Highlights

The Larkin 25309101S is suitable for various refrigeration applications, where reliable performance is essential. Its design supports long-duration use without overheating, making it ideal for commercial refrigeration units.

Product Information

Standard Information

• Brand: Larkin
• Motor Type: PSC (Permanent Split Capacitor)

Technical Specifications

• Horsepower: 1/15 HP
• Voltage: 208-230 VAC
• Frequency: 50/60 Hz
• Phase: Single
• RPM: 1800
• Rotation: Counter-Clockwise (CCW)
• Shaft Diameter: 5/16 inch
• Full Load Amps: 0.4-0.5
• Insulation Class: B
• Duty: Continuous Running Duty (S1)
• Length: 10.5 inches
• Width: 8 inches
• Height: 6.5 inches
