LAPP S2101 LAPP SKINTOP SLN S2101 Strain Relief Cable Gland 1 NPT

Product Description

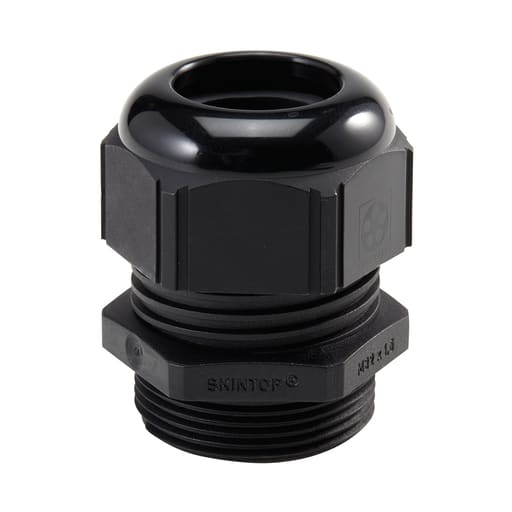

The LAPP SKINTOP SLN S2101 is a strain relief cable gland featuring a one-inch NPT thread. It is designed from polyamide and includes a CR bushing, providing a protective seal that is both liquid-tight and dust-proof, meeting an IP68 rating. The gland supports a clamping range of zero point five five one to zero point nine eight four inches (fourteen to twenty-five millimeters). This product is ideal for automation, robotics, industrial data communication, and various control applications. Its integrated locking feature enhances durability against vibrations.

• Accommodates cables with a clamping range of zero point five five one to zero point nine eight four inches (fourteen to twenty-five millimeters).
• IP68 seal provides protection from dust and liquids.
• Appropriate for use in robotics, industrial automation, and data communication systems.

Product Highlights

This cable gland is essential for securing cables in challenging environments and ensures reliable performance across various applications.

Product Information

Standard Information

• Brand: LAPP
• Manufacturer Part Number: S2101

Technical Specifications

• Series: SKINTOP SLN
• Thread Type: NPT
• Thread Size: 1 inch
• Clamping Range: 0.551 - 0.984 inches (14 - 25 mm)
• Overall Length: 2.362 inches
• Body Material: Polyamide
• Dynamic Temperature Rating: -13°F to +176°F (-25°C to +80°C)
• Static Temperature Rating: -40°F to +212°F (-40°C to +100°C)
• IP Rating: IP68
• UV Resistance: Yes
• Standards/Approvals: UL Approved
• RoHS Compliance: Yes
