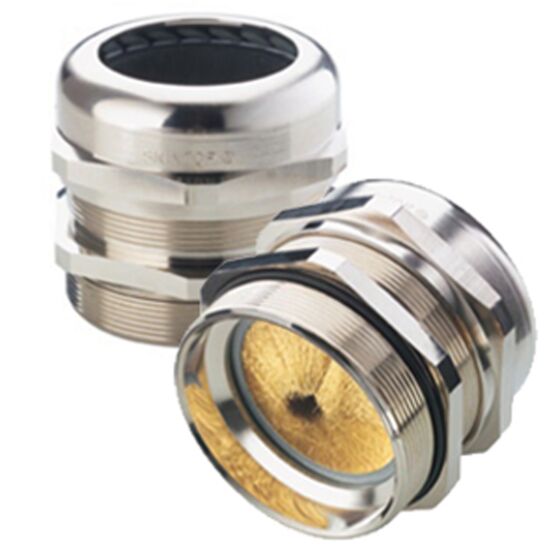

LAPP 53112087 SKINTOP MS-NPT BRUSH Strain Relief Cable Gland

Product Description

The LAPP SKINTOP MS-NPT BRUSH strain relief cable gland, MPN 53112087, is designed for secure cable connections. This component features a metallic body made from nickel-plated brass and includes an NPT thread type with a size of 2 Plus. It is engineered to provide strain relief while also safeguarding cables against liquids and dust. The gland incorporates a special elastomer bushing and a polyamide insert, ensuring durability and reliability in various applications.

• Constructed with a nickel-plated brass body for durability.
• Provides a liquid-tight and dust-proof seal, meeting IP68 standards.
• Functions within a temperature range of -40°F to +212°F (-40°C to +100°C) in static conditions.

Product Highlights

This cable gland is suitable for various industrial and electrical applications, providing stability and protection to cables in challenging environments.

Product Information

Standard Information

• Manufacturer: LAPP
• Manufacturer Part Number: 53112087

Technical Specifications

• Series: SKINTOP MS-NPT BRUSH
• Thread Type: NPT
• Thread Size: 2 Plus
• Thread Length: 0.669 inches
• Body Material: Nickel-plated brass
• Clamping Range: 1.733 to 2.167 inches
• Overall Length: 2.836 inches
• Bushing: Special elastomer
• Insert: Polyamide
• Locknut: Not included
• Wrenching Flats: 2.955 inches
• Dynamic Temperature Rating: -13°F to +212°F (-25°C to +100°C)
• Static Temperature Rating: -40°F to +212°F (-40°C to +100°C)
• IP Rating: IP68
• Standards/Approvals: UL Approved
