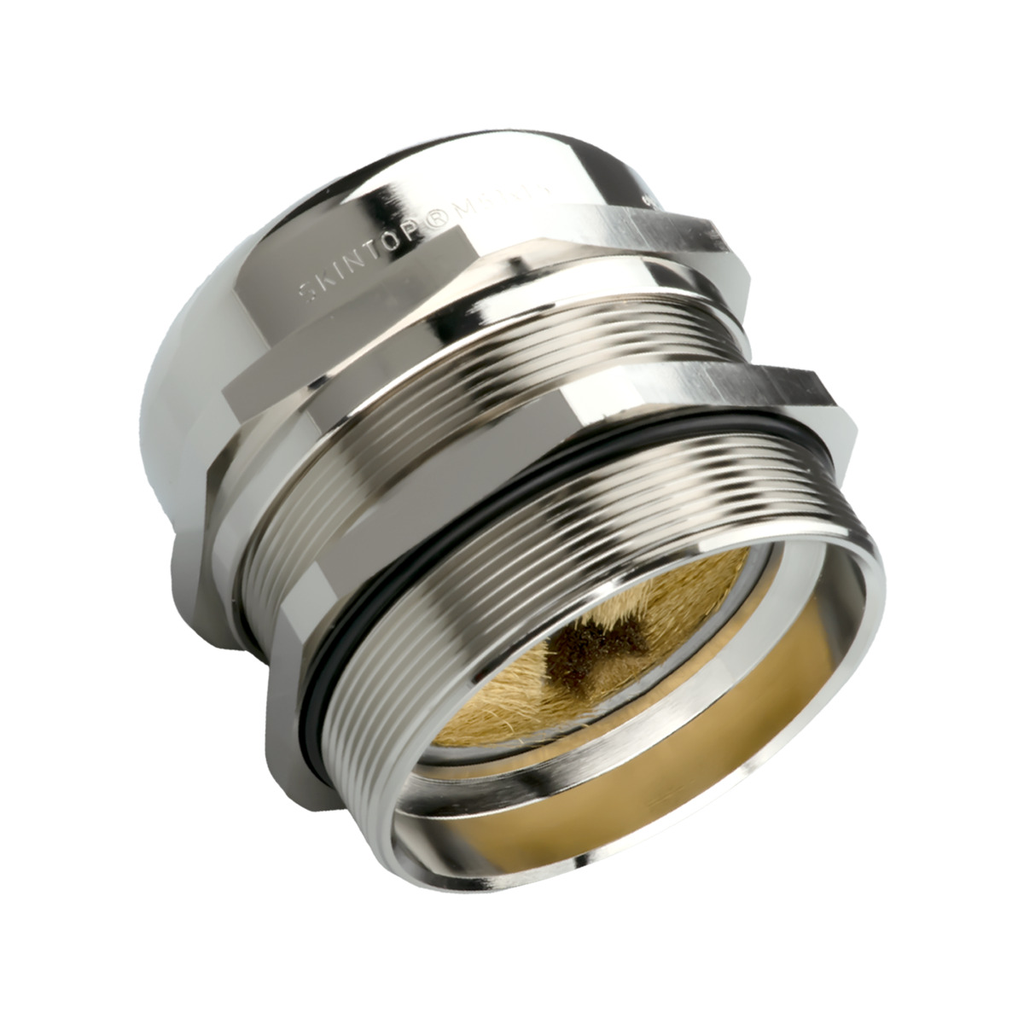

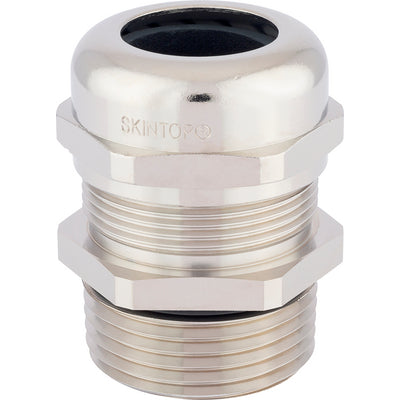

Lapp 53112067 Skintop Ms-Npt Brush 1 1/2 inches

Brand: LAPP
SKU: 53112067
Availability: In Stock

Ships same day if ordered by 12 pm
$189.11
$189.11
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The LAPP 53112067 SKINTOP® MS-NPT provides centered, fixed strain relief with a liquid-tight and dust-proof seal. It features an EMC brush for braid shield connection. The cable gland is made of nickel-plated brass with a 1 1/2" NPT thread. Plus sizes offer extra large clamping range.

  • Provides centered, fixed strain relief
  • Liquid-tight and dust-proof seal
  • EMC brush for braid shield connection

Product Highlights

Offers strain relief with a liquid-tight and dust-proof seal. Features an EMC brush for braid shield connection and an extra large clamping range.

Product Information

Standard Information

  • Brand: LAPP
  • Manufacturer Part Number: 53112067
Technical Specifications
MANUFACTURER
LAPP
MANUFACTURER PART NUMBER
53112067
SERIES
SKINTOP® MS-NPT BRUSH
THREAD TYPE
NPT
THREAD SIZE
1-1/2
THREAD LENGTH (IN)
0.669
BODY MATERIAL
Nickel-plated brass
CLAMPING RANGE (IN)
1.063 - 1.379
CLAMPING RANGE (MM)
27 - 35
OVERALL LENGTH (IN)
2.323
BUSHING
Special Elastomer
INSERT
Polyamide
LOCKNUT
Not Included
WRENCHING FLATS (IN)
2.127
DYNAMIC TEMPERATURE RATING
-13°F to +212°F -25°C to +100°C
STATIC TEMPERATURE RATING
-40°F to +212°F -40°C to +100°C
IP RATING
IP68 IP69
STANDARDS/APPROVALS
UL Approved
Material Body
nickel-plated brass
Cap nut
nickel-plated brass
EMC brush
brass wire
Sealing ring
elastomer
O-ring
elastomer
Protection rating
IP 68 - 10 bar, NEMA Type 1, 4x, 6, 12
Temperature range Dynamic
-25°C up to +100°C
Fixed
-40°C up to +100°C
NPT connection thread
acc. to ASME B1.20.1 - 2013
Classification ETIM 5 Class-ID
EC000441
ETIM 5.0 Class-Description
Cable screw gland
Classification ETIM 6 Class-ID
EC000441
ETIM 6.0 Class-Description
Cable screw gland
Type
Cable Gland
Outside Cable Diameter (Min)
1.063" (27.00mm)
Outside Cable Diameter (Max)
1.379" (35.03mm)
Conduit Hub Size
-
Panel Hole Size
-
Material
Brass, Nickel Plated
Includes
-
Ingress Protection
IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4X, 6, 12
Operating Temperature
-40°C ~ 100°C
Accepted Cable Diameter
1.063-1.379 in
Brand
Lapp Group
Bushing Material
Brass
Temperature Rating
-40 to +100 C
Sub Brand
SKINTOP®
Type of cable accessories
cable gland
Cable gland version
with earthing
Gland thread
NPT1 1/2"
IP rating
IP68
Body material
brass
Cable external diameter
27...35mm
Kind of thread
inch
Spanner size
54mm
Plating material
nickel
Conform to the norm
UL 514B
Manufacturer series
SKINTOP®
Cable accessories application
for shielded cables
Trade name
SKINTOP® MS-NPT BRUSH
