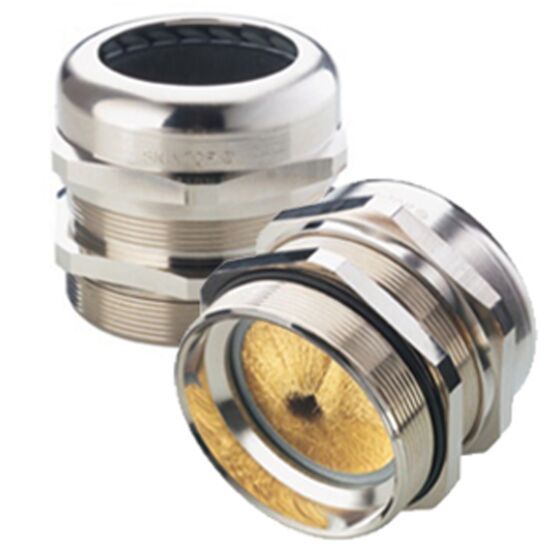

LAPP 53112057 SKINTOP MS-NPT BRUSH Strain Relief Cable Gland

Product Description

The LAPP SKINTOP MS-NPT BRUSH strain relief cable gland, part number 53112057, is designed for cable management and strain relief in electrical installations. It features a one and one-quarter NPT thread type and is made from nickel-plated brass, ensuring durability and resistance to corrosion.

• Accommodates clamping ranges from 0.748 to 1.103 inches (19 to 28 mm).
• Provides liquid-tight and dust-proof sealing with IP68 and IP69 ratings.
• Operates effectively within a temperature range of -13°F to +212°F (-25°C to +100°C).

Product Highlights

This cable gland is essential for protecting electrical cables from environmental factors while maintaining a secure attachment to junction boxes and enclosures.

Product Information

Standard Information

• Manufacturer: LAPP
• Manufacturer Part Number: 53112057

Technical Specifications

• Series: SKINTOP MS-NPT BRUSH
• Thread Type: NPT
• Thread Size: 1-1/4
• Thread Length: 0.669 inches
• Body Material: Nickel-plated brass
• Clamping Range: 0.748 - 1.103 inches (19 - 28 mm)
• Overall Length: 2.265 inches
• Bushing: Special elastomer
• Insert: Polyamide
• Locknut: Not included
• Wrenching Flats: 1.773 inches
• Dynamic Temperature Rating: -13°F to +212°F (-25°C to +100°C)
• Static Temperature Rating: -40°F to +212°F (-40°C to +100°C)
• IP Rating: IP68, IP69
• Standards/Approvals: UL Approved
