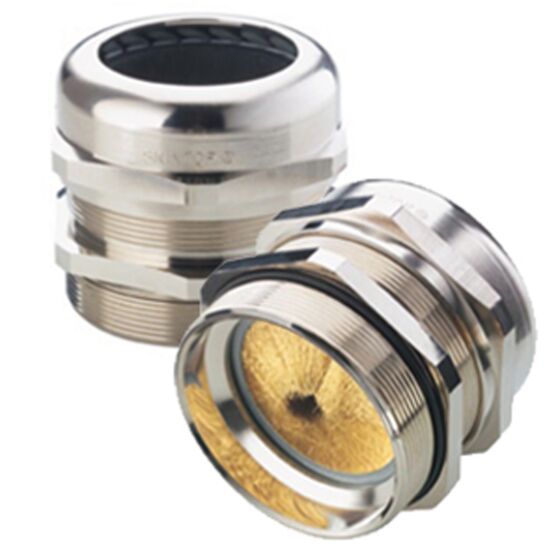

LAPP 53112047 SKINTOP MS-NPT BRUSH Strain Relief Cable Gland

Product Description

The LAPP SKINTOP MS-NPT BRUSH strain relief cable gland, part number 53112047, is essential for securing and sealing various cables. It features a nickel-plated brass body combined with a special elastomer bushing to ensure durability. This cable gland has a 1 NPT thread size and a thread length of 0.591 inches, accommodating a clamping range from 0.433 inches to 0.827 inches (11 to 21 mm). The included polyamide insert and EMC brush support effective cable connection.

• Constructed from nickel-plated brass for durability.
• Meets IP68 and IP69 standards for protection against dust and water.
• Clamping range accommodates cables from 0.433 inches to 0.827 inches (11 mm to 21 mm).

Product Highlights

This product is ideal for industrial applications requiring secure cable management and protection. It can function in varying environmental conditions, boasting a dynamic temperature rating from -13°F to +212°F (-25°C to +100°C) and a static temperature rating from -40°F to +212°F (-40°C to +100°C). The overall length of the gland measures 1.891 inches, while the wrenching flats correspond to 1.418 inches. Note that the locknut is not included.

Product Information

Standard Information

• Category: Electrical Components
• Manufacturer: LAPP

Technical Specifications

• Manufacturer Part Number: 53112047
• Series: SKINTOP MS-NPT BRUSH
• Thread Type: NPT
• Thread Size: 1
• Thread Length: 0.591 inches
• Body Material: Nickel-plated brass
• Clamping Range: 0.433 - 0.827 inches
• Overall Length: 1.891 inches
• Bushing: Special elastomer
• Insert: Polyamide
• Locknut: Not included
• Wrenching Flats: 1.418 inches
• Dynamic Temperature Rating: -13°F to +212°F
• Static Temperature Rating: -40°F to +212°F
• IP Rating: IP68/IP69
