Laing LHB08100093 Lead Free Brass Autocirc 1/2 inches Adjustable "ON" Thermostat with Timer

Product Description

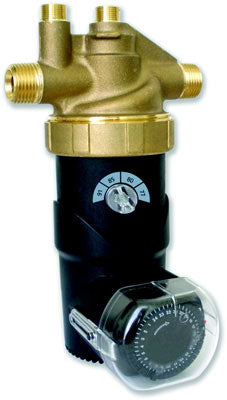

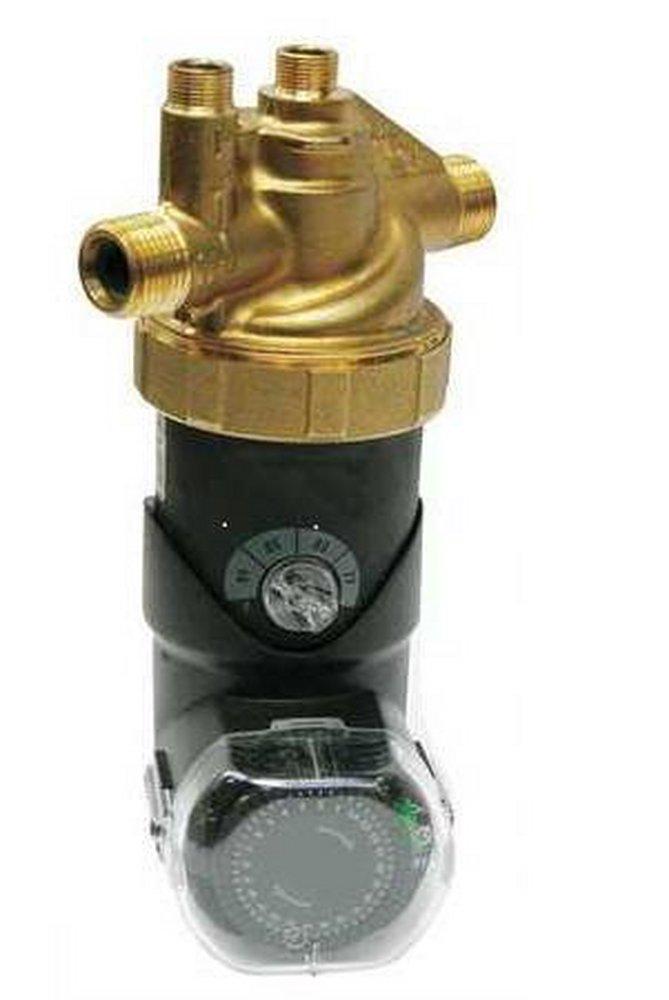

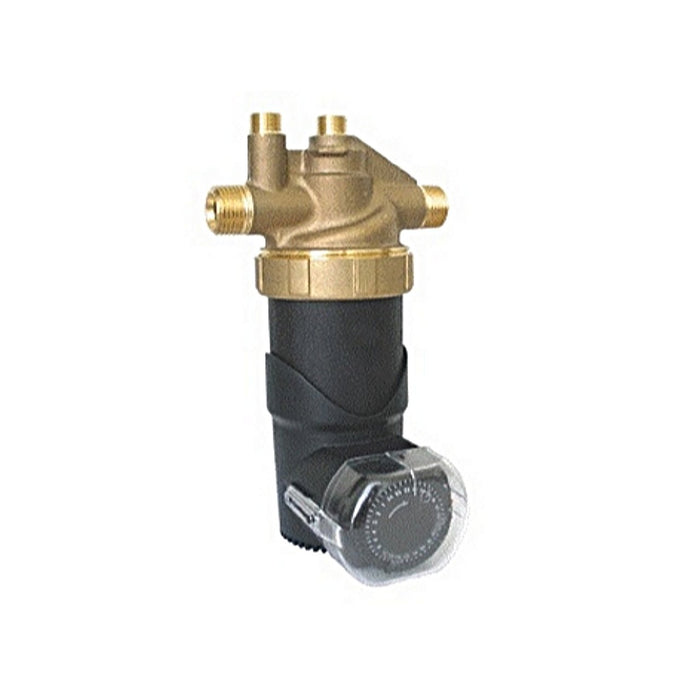

The LAING LHB08100093 lead-free brass Autocirc is a 1/2" recirculation pump with an adjustable "ON" thermostat and timer. Silent during operation, it requires only one pump and installation for all fixtures on the hot water plumbing line, and does not require a return line. It features a built-in 24-hour timer and comes complete with a 6 ft. long power cord.

• Silent during operation
• Requires only one pump and one installation for all fixtures on the hot water plumbing line
• Does not require a return line

Product Highlights

This lead-free brass Autocirc pump saves water and energy, paying for itself in a short period. It's designed for easy installation and continuous operation in potable water systems.

Product Information

Standard Information

• Brand: LAING
• Manufacturer Part Number: LHB08100093

Technical Specifications

• Pump Pipe Connections: 1/2” NPT connection to the angle stops
• Maximum Working Pressure: 145 PSI
• Maximum Temperature: 203° F
• Rotation: counter clockwise when viewed from the motor end
• Motor: AC Magnetically Driven Spherical Motor
• Voltage: 115 Volt
• Watts: 14 Watts
• Frequency: 60 Hz
• RPM: 3450 RPM
• Protection: Automatic Overload Protection
• Noise level: Whisper quiet, less than 30 db
• Material: Plastic, Brass, Stainless Steel
• Low Lead Compliant: Yes
• Connection Type: NPT
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Product Type: Circulator Pump
• Pump Body Material: Brass
• Connection Size: 1/2 in NPT
• Frequency Rating: 60 Hz
• Impeller Material: Nylon
• Item Name: Recirculating Pump With Adjustable "ON" Thermostat and Timer
• Pressure Rating: 145 psi
• Temperature Rating: 203 deg F
• Voltage Rating: 115 V
• Wattage: 14 W
