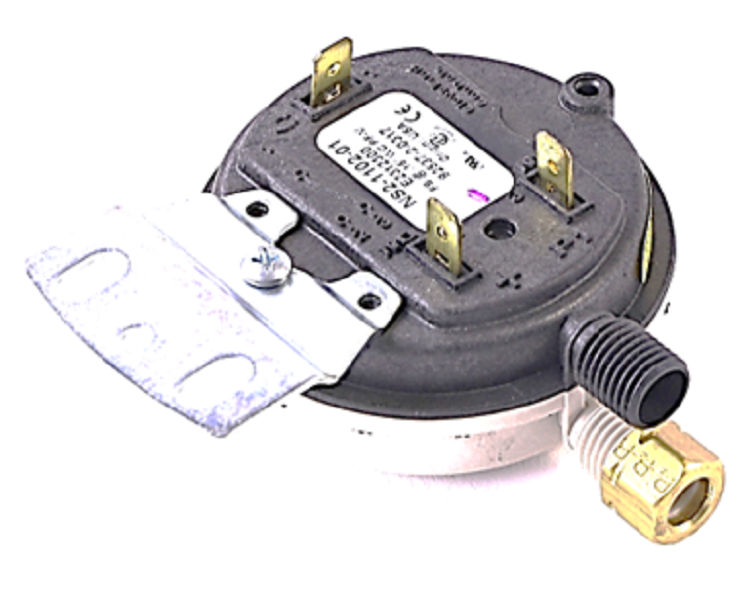

Laars Laars-E2312300 0.15 in wc pressure switch (0.15 in WC) E2312300

Product Description

The Laars LAARS-E2312300 is a 0.15 inches water column pressure switch designed for Laars boiler applications and factory-calibrated to a 0.15"WC set point. It functions as a normally open air pressure switch that closes when the inducer motor establishes required static pressure, providing a safety interlock for ignition. The device is compatible with multiple Laars RHHH and RHHV series models and is intended as an OEM replacement.

• Factory-set 0.15 inches water column (0.15"WC) set point for draft detection
• SPDT contact configuration with normally open (NO) default state
• Designed to close when inducer motor achieves required static pressure to allow ignition; compatible with Laars RHHH and RHHV series

Product Highlights

0.15"WC factory-calibrated pressure switch; SPDT normally open contact; OEM replacement for select Laars RHHH and RHHV models

Product Information

Standard Information

• Brand: LAARS
• Manufacturer Part Number: LAARS-E2312300

Technical Specifications

• Brand: Laars
• MPN: LAARS-E2312300
• Product Name: 0.15 in WC pressure switch
• Product Type: Air pressure switch
• Set Point: 0.15 inches water column (0.15"WC)
• Contact Configuration: SPDT (Single Pole Double Throw)
• Default State: Normally Open (NO)
• Function: Closes once inducer motor establishes required static pressure to allow ignition; safety interlock for combustion
• Application: Draft monitoring for high-efficiency boilers and volume water heaters
• Compatibility: Designed for Laars equipment, compatible with select RHHH and RHHV series models
• Used On Models: RHHH1200, RHHH1600, RHHH2000, RHHH2400, RHHV1200, RHHV1600, RHHV2000, RHHV2400 (and additional specific model variants)
• Construction: Engineered for heat and moisture conditions in condensing boiler cabinets
• Part Type: OEM replacement part
• Category: Boiler Parts
