La Gard 1779 Dial and Ring

Product Description

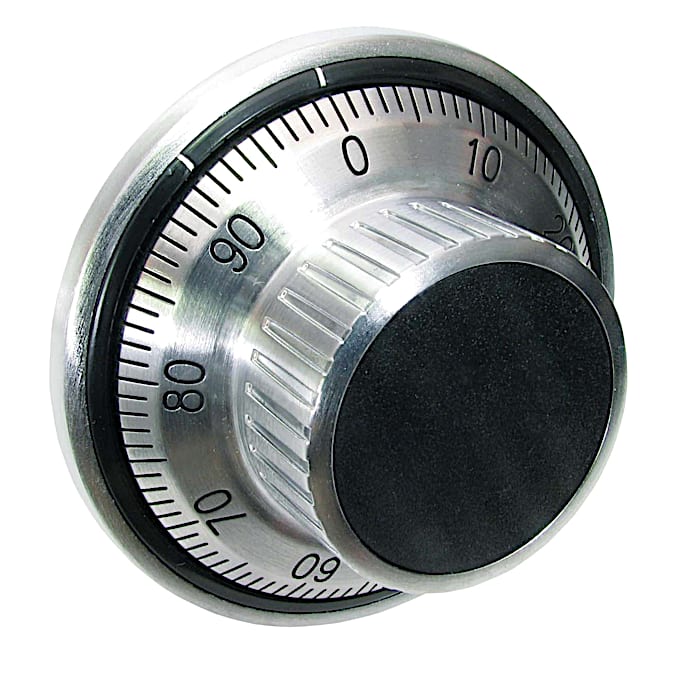

The LA GARD 1779 conical dial and ring combination is designed for operating mechanical combination locks. It features a front reading scale with separate change and opening markings. The spindle extends about 4" beyond dial ring, and is threaded 5/16" x 40 the full length of the spindle. Satin chrome finish.

• Front-reading LaGard dial

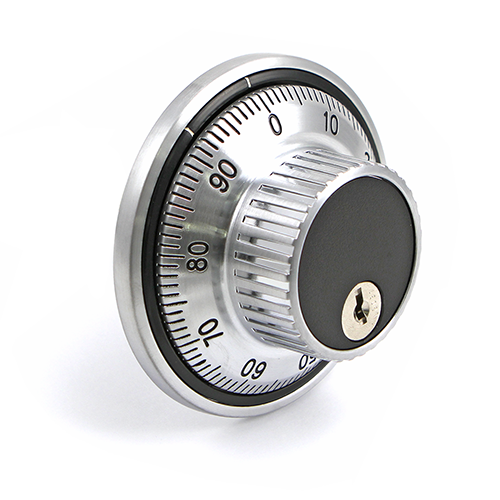

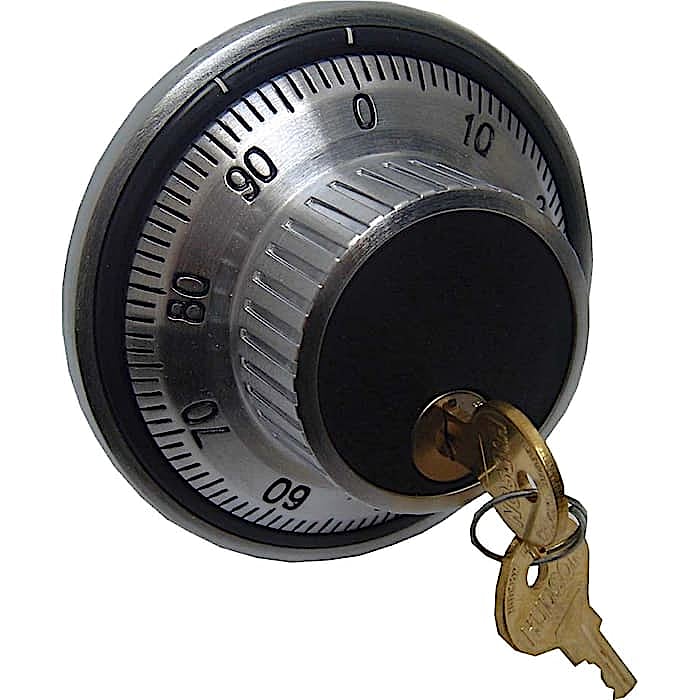

• Dial ring and integrated key lock
• Satin chrome finish

Product Highlights

The LA GARD 1779 dial and ring is suitable for all LA GARD mechanical combination locks.

Product Information

Standard Information

• Brand: LA GARD
• Manufacturer Part Number: 1779

Technical Specifications

• External diameter: 95 mm
• Finish: Die-cast with satin chrome finish
• Hardware pack: 2 screws 8-32 x 5/16 PH (8mm)
• Scale: Front reading
• Marking: Separate change and opening marking
• Spindle Thread: UNS 5/16"-40, die-cast
• Spindle Projecting: 102 mm
• Usable length (3 wheels): 79 mm
• Usable length (4 wheels): 73 mm
• Dial splined on: 43
• Suitable for: all LA GARD mechanical combination locks
• MPN: 1779
• Alternate Part Number-1: 130232
• Lock Type: Mechanical Lock
• Safe Parts: Combination Dial
