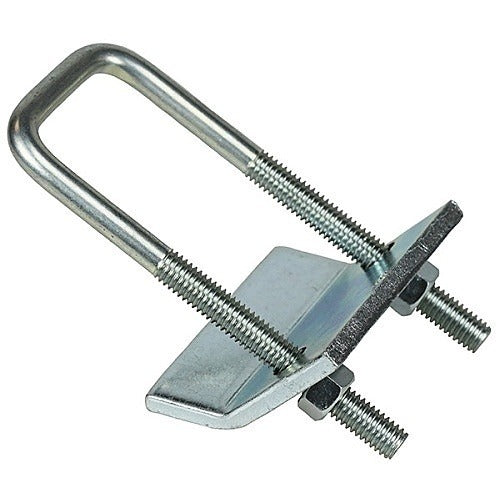

L H Dottie Co SUB158 U-bolt Beam Clamp 1-5/8 Inch

Product Description

The L H Dottie Co SUB158 is a U-bolt beam clamp designed to secure 1-5/8 inch strut channel to beam flanges and structural steel. It provides a reliable mechanical connection point where strut channel must be suspended or anchored overhead. The clamp uses a U-bolt configuration to grip the beam flange while capturing the strut channel from below. Electricians, mechanical contractors, and pipe hangers use this hardware when building out strut support systems in commercial and industrial environments. It is sold as a single unit and is a standard hardware accessory in overhead support assemblies.

This beam clamp is suited for commercial and industrial installations where 1-5/8 inch strut channel must be attached to I-beams, wide-flange beams, or other structural steel members. Typical applications include conduit support runs, mechanical equipment hangers, and pipe support frameworks. It is commonly used in new construction and retrofit work where welding or drilling into structural steel is not permitted or practical.

Key Features

• U-bolt design secures 1-5/8 inch strut channel to beam flanges without welding
• Provides a rigid, adjustable connection point for overhead support systems
• Single-unit packaging for precise quantity purchasing on job sites
• Compatible with standard strut channel hardware and fittings
• Suited for commercial and industrial structural support applications

Compatibility

Designed as an OEM-style hardware accessory for use with standard 1-5/8 inch strut channel support systems in commercial and industrial installations.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors working under applicable building and electrical codes. Power down or de-energize any adjacent electrical systems before working overhead. Ensure the beam flange is within the clamp's grip range before tightening the U-bolt nuts, and verify that the assembly meets the load rating requirements of the support system design. Do not exceed the rated load capacity of the clamp or the strut channel being supported.
