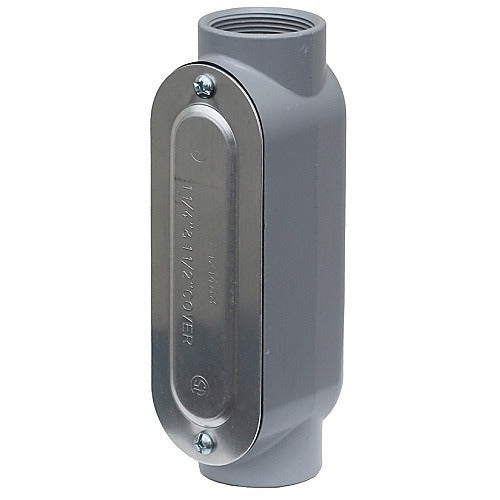

L H Dottie Co C100CG C-type Threaded Conduit Body 1 Inch

Product Description

The L H DOTTIE CO C100CG is a 1-inch C-type threaded conduit body used in electrical conduit systems to provide access for wire pulling and to allow directional changes in a conduit run. The C-body configuration positions the access cover at the back of the fitting, making it well suited for straight-through pulls where midpoint access is needed. This fitting threads directly onto rigid metal conduit (RMC) or intermediate metal conduit (IMC) of the corresponding trade size. Electricians install this fitting as part of new construction wiring or service upgrade work in residential, commercial, and light industrial applications.

The C100CG is used in 1-inch conduit runs where pull access is required along a straight run of conduit. It is appropriate for indoor and outdoor installations depending on the cover and gasket configuration used with the fitting. Common applications include panel feeders, branch circuit runs, and service entrance conduit work. Installation is performed by licensed electricians in accordance with NEC requirements governing conduit bodies and conductor fill.

Key Features

• C-type body configuration provides back-center access for wire pulling on straight conduit runs
• 1-inch threaded trade size fits standard RMC and IMC conduit connections
• Threaded hubs allow direct connection without additional adapters on matching conduit
• Sold individually, one conduit body per unit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch threaded rigid metal conduit and intermediate metal conduit systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC articles governing conduit bodies, including conductor fill limits. De-energize the circuit and verify absence of voltage before opening any existing conduit body or pulling conductors. Thread connections should be made up wrench-tight using appropriate pipe wrenches or strap wrenches to avoid damage to the threads. Do not exceed the conductor fill capacity specified by the NEC for the conduit body size.
