L E Johnson 170W303H Bi-fold Door Hardware Set 30 Inch

Product Description

The L E JOHNSON 170W303H is a complete bi-fold door hardware set designed for two-panel door installations up to 30 inches wide. The kit supports doors ranging from 1-1/8 inches to 1-3/8 inches thick and rated for doors weighing up to 40 pounds each. Finished in white, it includes a top mount track with a permanently installed positive pivot lock, an adjustable door bracket, shock-absorbing hinges, pivot hardware, a guide, stops, knobs, and all necessary screws. This is a full replacement or new-install hardware solution for residential bifold door openings.

This hardware set is suited for residential interior door applications such as closet openings, laundry alcoves, and utility rooms where bi-fold door configurations are standard. The included components allow a complete installation without sourcing additional hardware. The top mount track system keeps the door aligned and operating smoothly, while the shock-absorbing hinges reduce stress on the door panels over repeated use. Compatible with standard framed openings accepting a 30-inch bi-fold door configuration.

Key Features

• Supports two door panels from 1-1/8 inches to 1-3/8 inches thick
• Each door panel rated for up to 40 pounds
• Top mount track with permanently installed positive pivot lock for consistent door alignment
• Shock-absorbing hinges reduce wear on door panels and hardware
• Adjustable door bracket allows fine-tuning of door position after installation

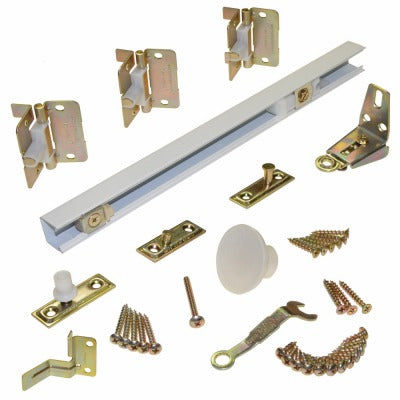

• Complete kit includes pivot, guide, stops, knobs, and screws
• White finish suits standard interior trim environments

Compatibility

Designed as a complete hardware solution for two-panel bi-fold door installations in 30-inch openings, accommodating door panels 1-1/8 inches to 1-3/8 inches thick and weighing up to 40 pounds each.

Installation Notes

Installation is typically performed by a finish carpenter or experienced handyperson. Verify that the rough opening and door panels meet the specified thickness and weight limits before mounting the track. Mount the top track securely to structural framing or a solid header, not solely to drywall. Use the adjustable door bracket to plumb and align the panels after the pivot and guide are seated.
