L E Johnson 1700486H Bi-fold Door Hardware Set 48 in

Product Description

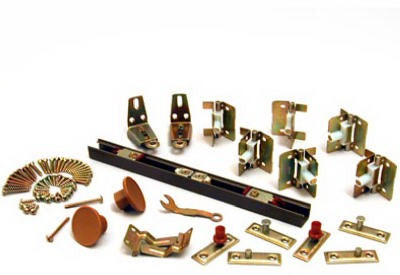

The L E JOHNSON 1700486H is a complete bi-fold door hardware set designed for a 48-inch door opening. It accommodates two doors, each ranging from 1-1/8 inches to 1-3/8 inches thick and weighing up to 40 pounds. The set includes a top mount track with a permanently installed positive pivot lock, an adjustable door bracket, shock-absorbing hinges, a pivot guide, stops, knobs, and screws. Carpenters, finish contractors, and skilled trades installers use this hardware set to complete bi-fold door installations in residential and light commercial settings.

This hardware set is suited for standard bi-fold door applications in closets, utility rooms, laundry areas, and similar interior openings. The included components cover a full installation from track mounting to door alignment, making it appropriate for new construction and replacement projects. The adjustable door bracket and pivot guide allow for on-site door alignment after installation without requiring specialized tools.

Key Features

• Fits two-door bi-fold configurations in a 48-inch opening
• Accommodates door thickness from 1-1/8 inches to 1-3/8 inches per door panel
• Supports individual door panels weighing up to 40 pounds each
• Top mount track includes a permanently installed positive pivot lock
• Shock-absorbing hinges reduce door impact and wear over time
• Complete hardware set includes track, bracket, hinges, pivot guide, stops, knobs, and screws

Compatibility

Designed as a complete OEM-style hardware set for standard 48-inch residential bi-fold door installations using panels 1-1/8 inches to 1-3/8 inches thick and up to 40 pounds each.

Installation Notes

Installation is typically performed by carpenters or finish contractors and requires basic hand tools including a drill, level, and screwdriver. Power down or secure the work area before mounting the top track to the door frame header. Follow the door manufacturer specifications for panel preparation and hinge placement. Verify the door opening is plumb and square before final adjustment of the pivot guide and door bracket.
