Kyocera TSJ03573 Turning Insert VNMG332GP TN60 Cermet

Product Description

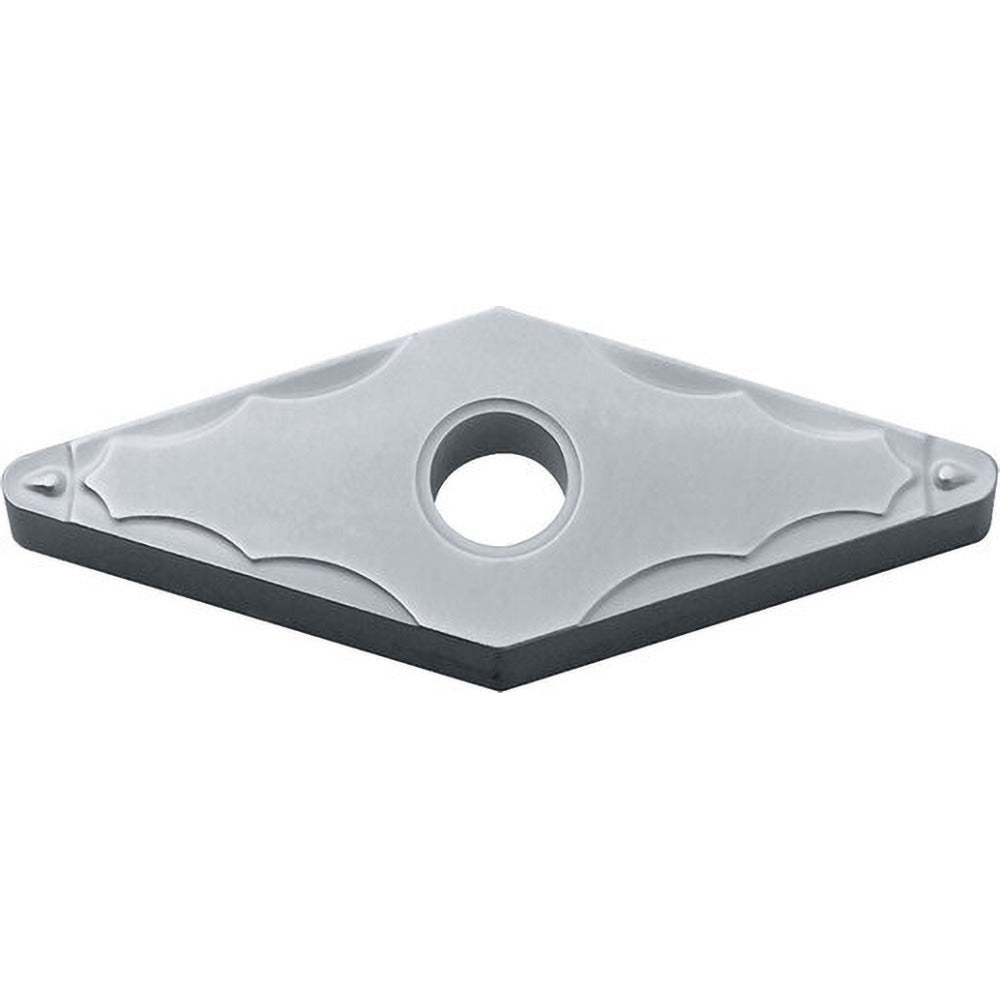

The KYOCERA TSJ03573 is a cermet turning insert in the VNMG332GP geometry, designed for precision metal cutting on CNC lathes and turning centers. It features a 35-degree diamond shape with a negative rake angle of -10 degrees, a honed cutting edge, and a TiCN plus NbC coating applied through an uncoated classification process under the TN60 manufacturer grade. The insert delivers four usable cutting edges per insert with a corner radius of 0.0313 inches and a maximum depth of cut of 0.4360 inches. It is installed and managed by machinists and CNC operators in production and job-shop turning operations.

This insert is suited for external turning, facing, copying, and undercutting applications on steel and stainless steel workpieces, corresponding to ISO material grades P01, P10, and P20. The GP chip breaker geometry supports a range of light to medium cutting conditions. The ISOI series insert is held in place using a clamp-and-pin method and conforms to both ANSI and ISO standards. It is a multi-use insert appropriate for general-purpose turning operations where cermet grade tooling is specified.

Key Features

• Cermet insert material with TiCN plus NbC coating under TN60 grade for steel and stainless steel cutting
• 35-degree diamond insert shape (Shape Code V) with negative rake at -10 degrees
• Four cutting edges per insert with honed cutting edge style for extended tool life
• GP chip breaker supports copying, external turning, facing, and undercutting
• Clamp and pin holding method compatible with VNMG-style toolholders
• Conforms to ANSI and ISO standards; ISO code VNMG160408GP

Compatibility

Designed as an OEM-style replacement or equivalent for VNMG-style turning toolholders that accept 3/8-inch inscribed circle inserts with a clamp-and-pin holding method, per ANSI and ISO VNMG insert standards.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and lock out the machine spindle before indexing or replacing the insert. Use the appropriate torque wrench and clamp hardware specified by the toolholder manufacturer when securing the insert. Inspect the insert seat and chip breaker pocket for debris before seating a new edge.
