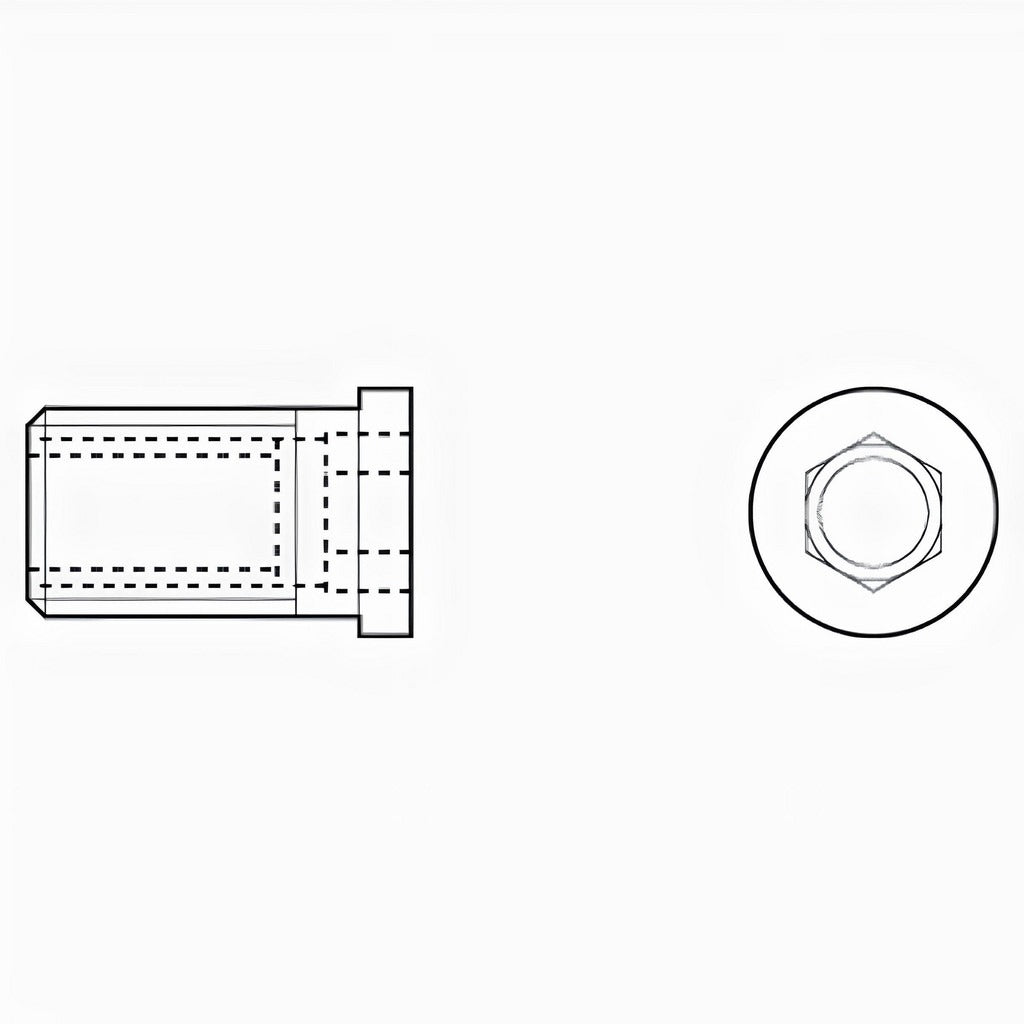

Kyocera TPC02451 Shim Screw Hex M7x0.75 Milling

Product Description

The KYOCERA TPC02451 is a hex-drive shim screw designed for use with indexable milling toolholders. It secures the shim in place within the toolholder pocket, maintaining precise insert seating and preventing shim movement during cutting operations. The screw uses an M7x0.75 thread and measures 9.00 millimeters in overall length. It is sold individually and is intended for use by machinists and tool crib technicians working with KYOCERA indexable milling systems. Proper shim retention is critical to insert stability and surface finish consistency, making this a routine replacement item in production and job shop environments.

This shim screw is used in indexable milling applications where a shim seat is incorporated into the toolholder pocket. It is a direct-fit component for toolholders requiring an M7x0.75 thread shim screw with hex drive. Typical install scenarios include insert pocket maintenance, shim replacement after wear or damage, and toolholder reconditioning. The industry standard reference number for this screw is SPW-7050.

Key Features

• M7x0.75 thread for precise, secure shim retention in indexable milling toolholders
• Hex drive type for reliable torque application with standard hex keys
• 9.00 millimeter overall length sized for standard indexable shim pockets
• Industry standard number SPW-7050 for cross-reference and procurement
• Sold individually — order exact quantity needed with no minimum commitment above single unit

Compatibility

Designed for use with indexable milling toolholders requiring an M7x0.75 hex-drive shim screw. Compatible hardware type is listed as shim. Industry standard reference number SPW-7050 may be used to verify fitment across compatible toolholder systems.

Installation Notes

Installation is performed by machinists or tool crib personnel during toolholder maintenance or insert pocket service. Power down and lock out any machine before servicing toolholders. Use a calibrated hex key of the correct size to avoid rounding the drive recess. Do not overtighten — follow the toolholder manufacturer torque guidelines for shim screws of this thread class.
