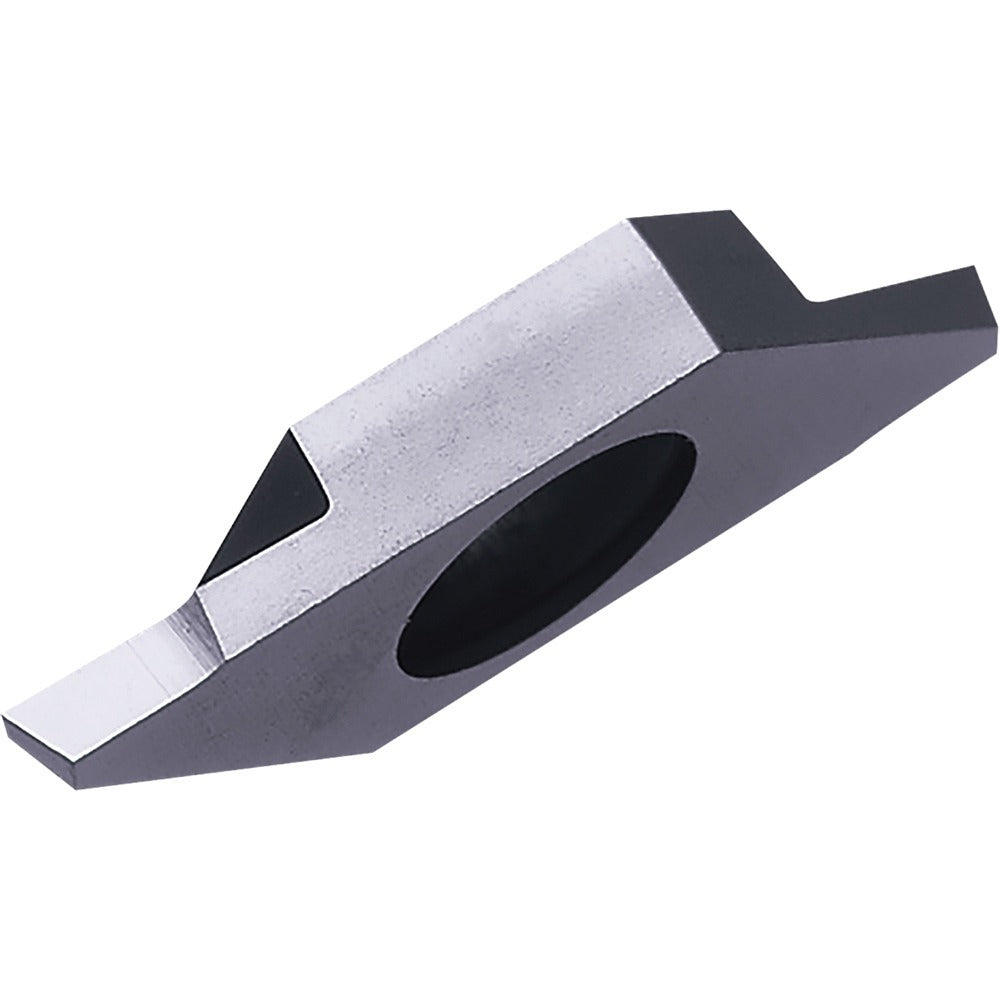

Kyocera TLC16158 Carbide Cutoff Insert 1mm Rh Ktkf

Product Description

The KYOCERA TLC16158 is a solid carbide cutoff insert designed for grooving and parting operations on CNC lathes and turning centers. It features a Megacoat Nano PVD coating applied to a PR1535 grade carbide substrate, delivering wear resistance and edge stability under continuous and interrupted cutting conditions. The NB chipbreaker geometry controls chip flow during narrow grooving applications. The insert mounts via screw-holding method and carries a 20-degree right-hand lead angle with a 1mm cutting width, making it well-suited for tight-tolerance parting and recessing work performed by machinists and CNC operators in production environments.

This insert is intended for use in KTKF-series toolholders on CNC turning equipment. The 1mm cutting width and 6mm maximum depth of cut make it applicable to small-diameter parting, internal grooving, and recessing operations on ferrous and non-ferrous workpieces. The right-hand insert orientation is standard for conventional OD turning setups. It is a single-edge insert sold individually and is appropriate for shops requiring consistent, repeatable performance in high-volume parting or groove-forming operations.

Key Features

• PR1535 grade solid carbide with Megacoat Nano PVD coating for extended tool life
• 1mm cutting width for precise narrow grooving and parting applications
• 20-degree right-hand lead angle with right-hand insert orientation
• NB chipbreaker geometry for controlled chip evacuation
• Screw-clamp holding method for secure, repeatable seating in KTKF toolholders
• Maximum depth of cut of 6mm suitable for small to medium diameter workpieces

Compatibility

Designed for use with KTKF-series screw-clamp toolholders. Verify toolholder series, insert size code 12, and right-hand orientation before installation.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before accessing the turret or toolholder. Use the correct torx or hex key to torque the clamping screw per the toolholder manufacturer specification. Inspect the insert seat and clamping screw for wear or debris before seating a new insert to ensure proper contact and alignment.
