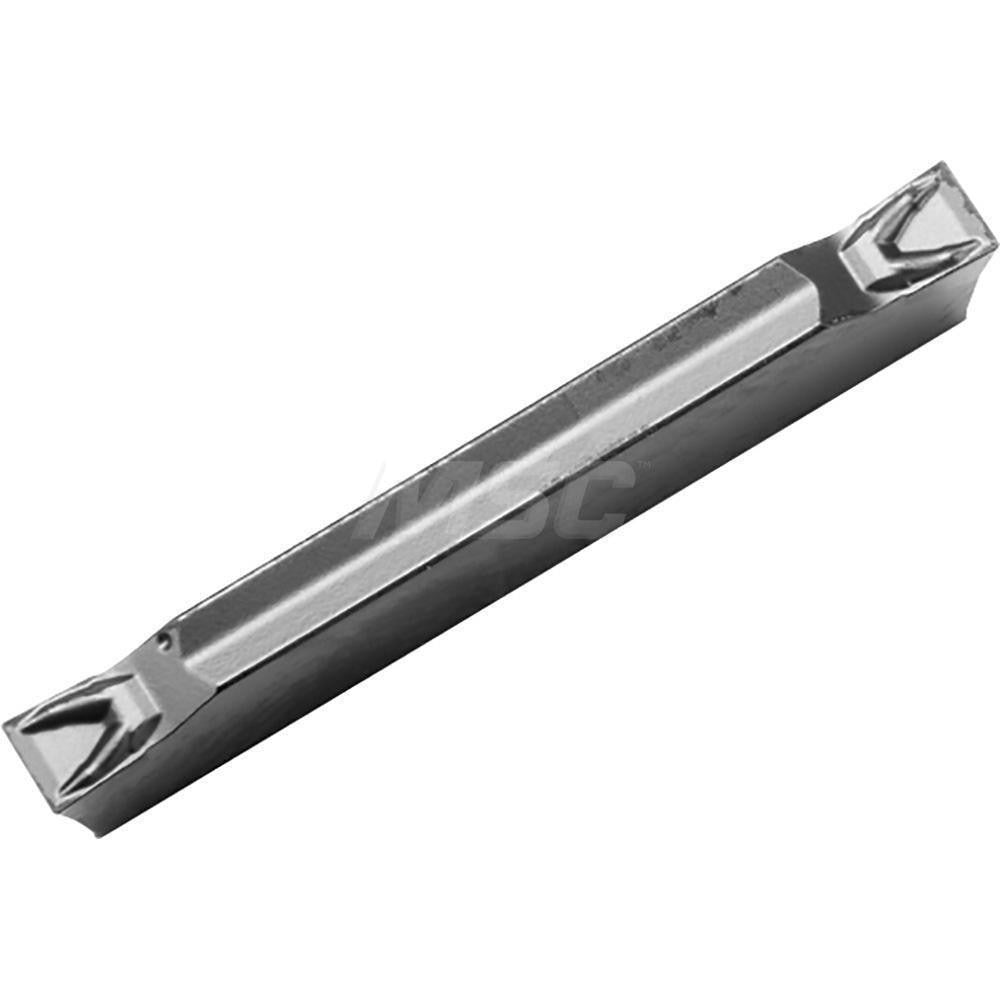

Kyocera TKE10912 Grooving Insert Gdm 3020 Pq PR1225

Product Description

The KYOCERA TKE10912 is a solid carbide grooving insert designed for precision groove turning and parting operations on CNC lathes and turning centers. Carrying the PR1225 grade with a MEGACOAT PVD coating, this insert delivers wear resistance and thermal stability across a range of workpiece materials. The neutral hand orientation and positive rake angle of 3.00 degrees reduce cutting forces and promote clean chip formation. The 3.00 mm cutting width and 0.10 mm corner radius make it well suited for tight-tolerance grooving work where dimensional consistency is critical. Licensed machinists and CNC tooling technicians are the primary installers of this insert type.

This insert is engineered for grooving steel and stainless steel workpieces, with primary material code P for steel and secondary material code M for stainless steel. It belongs to the GD series and uses a clamp holding method, making it compatible with GDM-series toolholders. Typical applications include external grooving, face grooving, and light parting on production turning equipment in industrial and job-shop environments. The multi-use designation means the insert supports repeat indexing for extended tool life.

Key Features

• Solid carbide micrograin substrate with PR1225 manufacturer grade for consistent edge integrity
• MEGACOAT PVD coating for improved wear resistance and reduced built-up edge
• 3.00 mm cutting width with 0.10 mm corner radius for precise, repeatable groove geometry
• Positive rake angle reduces cutting forces on steel and stainless steel workpieces
• Neutral hand orientation works in standard GDM clamp-style toolholders
• Meets ANSI and ISO standards; ANSI code GDM3020N010PQPR1225, ISO code GDM3020N010PQ

Compatibility

Designed for use in GD series clamp-style toolholders accepting GDM 3020 insert size. Compatible with ANSI code GDM3020N010PQPR1225 and ISO code GDM3020N010PQ tooling systems. Verify toolholder pocket specifications before installation.

Installation Notes

Installation is performed by a qualified CNC machinist or tooling technician. Power down and lock out the machine spindle before seating or indexing the insert. Secure the clamp to the toolholder manufacturer's specified procedure and confirm insert seating is flush before resuming cutting operations. Do not exceed the insert's rated cutting width or depth of cut for the workpiece material being machined.
