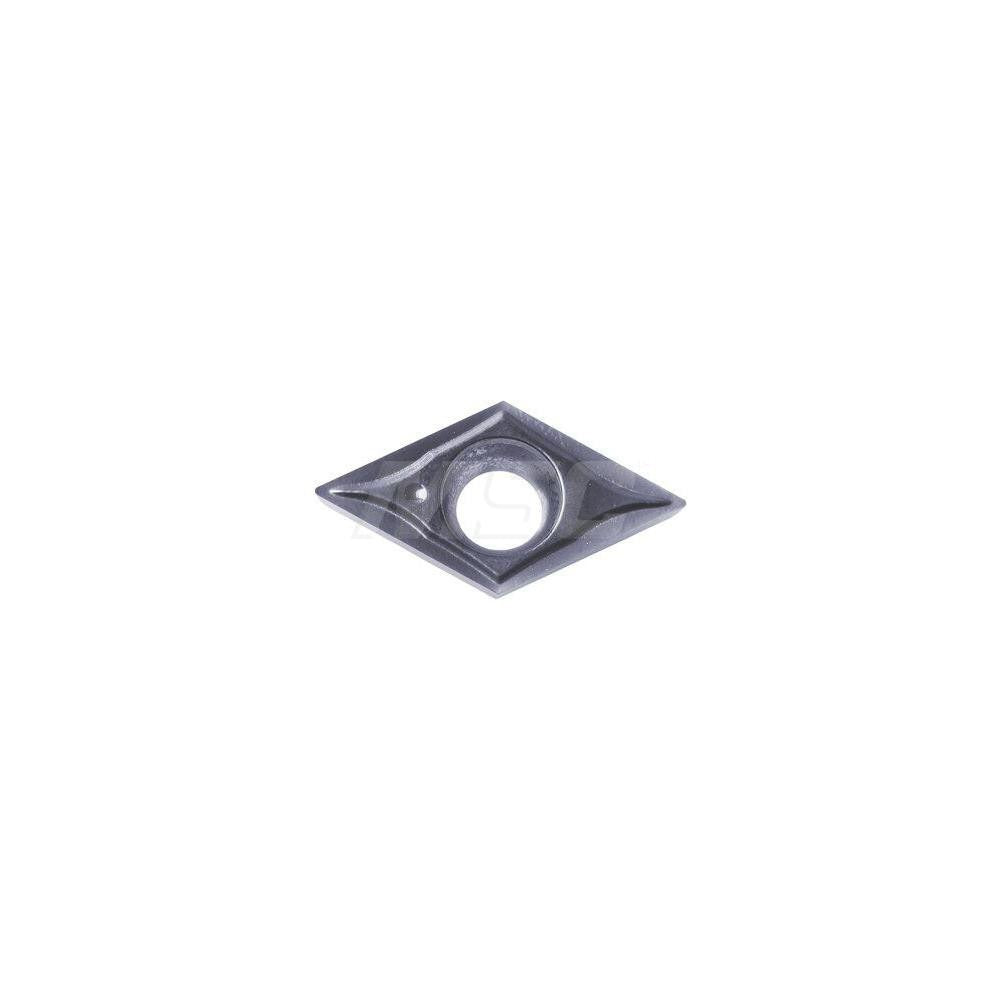

Kyocera TKE03436 Turning Insert DCGT32505MFP-GQ Carbide

Product Description

The KYOCERA TKE03436 is a solid carbide turning insert in the DCGT style, designed for precision external turning, copying, back boring, and sub-spindle operations. It carries the MEGACOAT PVD coating in grade PR1225, which supports cutting in stainless steel and steel applications. The insert features a 55-degree diamond shape, a 0.008-inch corner radius, and a positive rake angle of 5 degrees, making it suitable for finishing and light interrupted cuts where sharp edge geometry is critical. Machinists and CNC lathe operators working on close-tolerance parts specify this insert when surface finish and edge retention matter most.

This insert is intended for turning centers and CNC lathes running stainless steel as the primary workpiece material and steel as the secondary workpiece material. It fits multi-use applications including external turning, copying, back boring, and sub-spindle work. With a maximum depth of cut of 0.3047 inches and an inscribed circle of 0.375 inches, it is sized for medium light-to-moderate stock removal passes. The GQ chip breaker geometry is paired with sharp cutting edges to reduce cutting forces on difficult-to-machine alloys.

Key Features

• MEGACOAT PVD coating in grade PR1225 for wear resistance on stainless steel and steel
• 55-degree diamond insert shape with sharp cutting edge style for reduced cutting forces
• Positive rake angle of 5 degrees improves chip flow on difficult materials
• GQ chip breaker for reliable chip control in finishing and semi-finishing passes
• 2 cutting edges per insert; screw-held mounting for repeatable indexing
• Meets ANSI and ISO standards; ISO code DCGT11T302MFP-GQ

Compatibility

Designed as an OEM-style replacement or direct equivalent for DCGT-style insert toolholders conforming to ANSI and ISO DCGT standards. ISO equivalent part number is DCGT11T302MFP-GQ. Compatible with material grades P10, P20, P30, M10, M20, M30, and M40.

Installation Notes

This insert is installed and indexed by a qualified machinist or CNC lathe operator. Power down and lock out the machine spindle before changing inserts. Use the appropriate torx or hex key to seat the clamping screw to the toolholder manufacturer's specified torque. Inspect the insert pocket and screw for debris or wear before seating a new insert to ensure accurate positioning and safe cutting.
