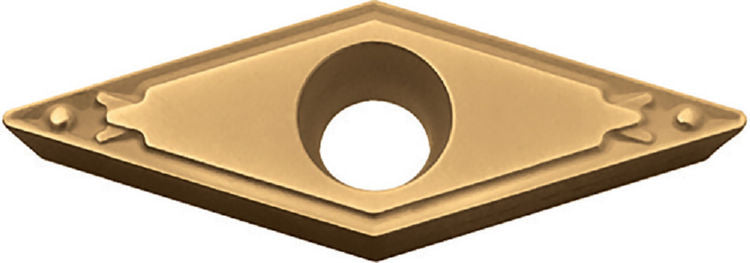

Kyocera TJV07410 KYO VBMT-221-HQ CA6525 CARB INSERT

Product Description

The Kyocera TJV07410 KYO VBMT-221-HQ CA6525 Carb Insert is designed for precision finishing in machining applications. This insert features a diamond shape with a clearance angle that allows for versatile performance, making it suitable for various materials including high-temperature stainless steel.

• Insert style: VBMT
• Insert material: Carbide
• Insert thickness: 0.1250 inches

Product Highlights

This insert is engineered for finishing medium applications. The titanium carbide (TiCN), aluminum oxide (Al2O3), and titanium nitride (TiN) coating enhance durability.

Product Information

Standard Information

• Brand: Kyocera
• Insert Style: VBMT

Technical Specifications

• Insert Shape: 35° Diamond
• Clearance Angle: 5° Positive
• Size: 0.2500 inches
• Corner Radius: 0.0156 inches
• Insert Material: Carbide
• Work Material: Stainless Steel + Hi Temp
• Machining Application: Finishing-Medium
• Insert Coating: TiCN + Al2O3 + TiN
• Insert Thickness: 0.1250 inches
• Hole Diameter: 0.1102 inches
