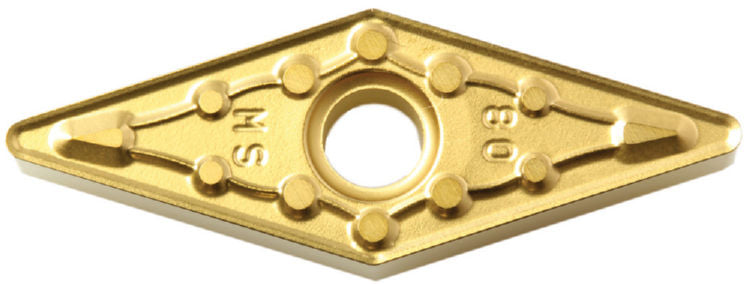

Kyocera TJU07631 VNMG-331MS-CA6515 Carbide Insert

Product Description

The Kyocera TJU07631 VNMG-331MS-CA6515 carbide insert is designed to enhance precision in various machining tasks. This insert is ideal for working with stainless steel and high-temperature materials. It features a diamond-shaped insert style that facilitates better chip control during machining.

• Insert material: Carbide
• Application: Medium-Roughing
• Insert thickness: 0.1875 inches

Product Highlights

This carbide insert offers improved wear resistance and is coated with TiCN, Al2O3, and TiN for enhanced durability. Its negative clearance angle allows for optimal cutting performance.

Product Information

Standard Information

• Brand: Kyocera
• Part Number: VNMG-331MS-CA6515

Technical Specifications

• Insert Shape: 35° Diamond
• Clearance Angle: Negative
• Size: 0.3750 inches
• Corner Radius: 0.0156 inches
• Hole Diameter: 0.1500 inches
• Insert Coating: TiCN + Al2O3 + TiN
• Work Material: Stainless Steel + Hi Temp
• Machining Application: Medium-Roughing
